JBL VTX-RC500 Rotating Clamp

Product Code: JBL VTX-RC500

Key Features
  • Universal truss/pipe clamp adapter
  • Support for up to 500 kg (1100 lbs)
  • Adjustable clamping mechanism
  • Pipe range: 0.5 in – 2 in
  • Includes bearing for smooth 360∞ rotation
  • 10-degree rotation marks for horizontal array aiming
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL VTX-RC500 Rotating Clamp

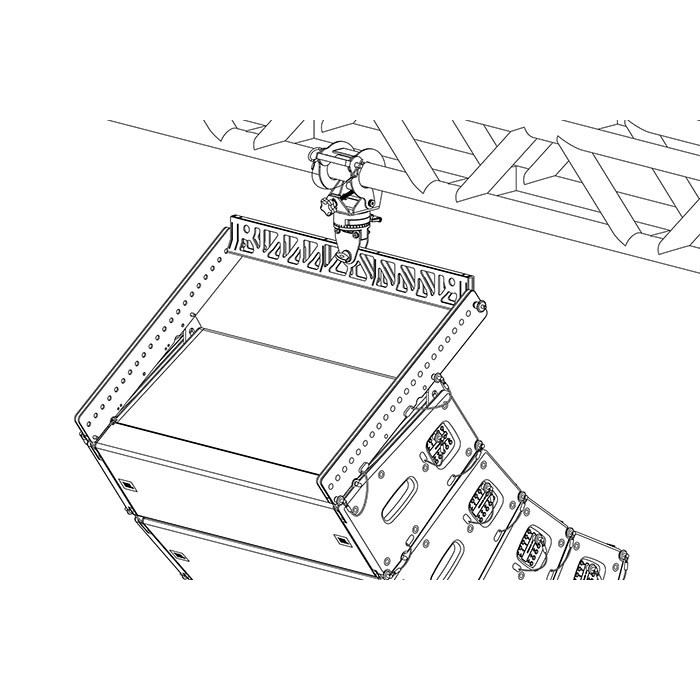

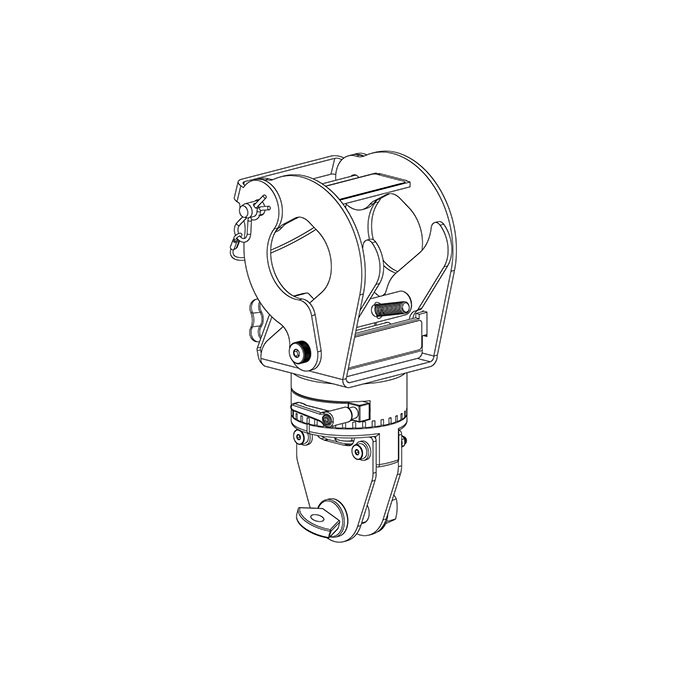

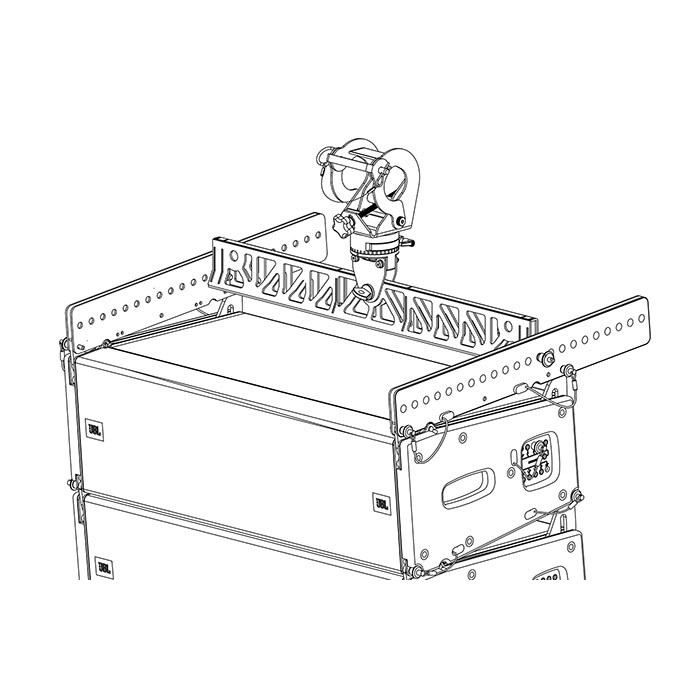

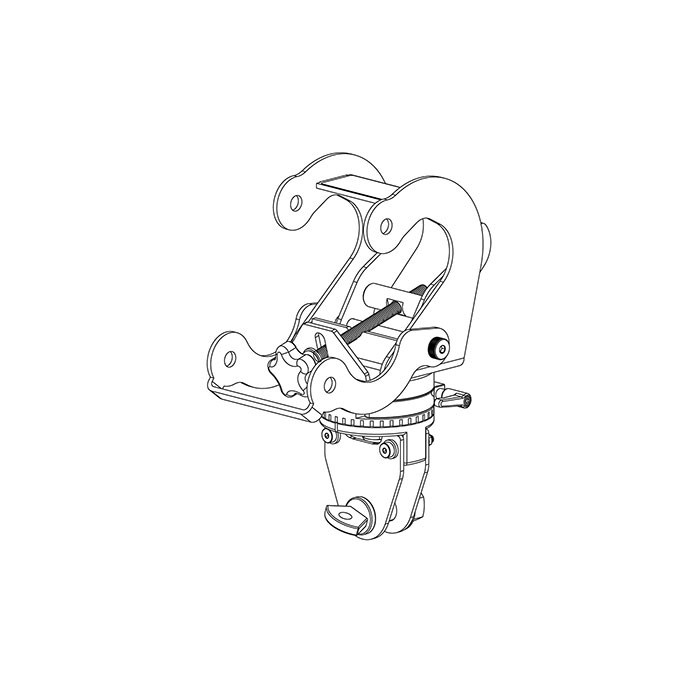

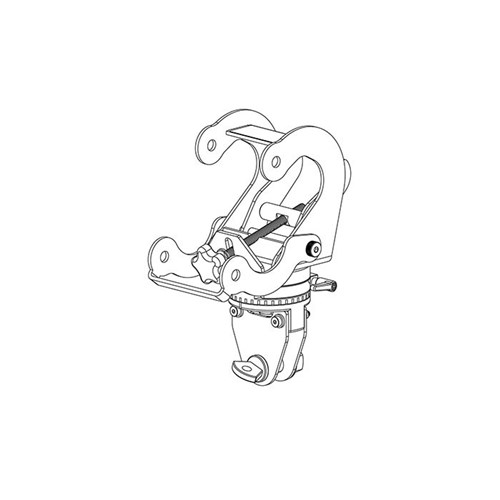

The VTX RC500 is a universal truss/pipe adapter designed for vertically suspending speaker arrays from standard truss structures or pipes. The RC500 supports arrays of up to 500 kg (1,100 lbs) and is compatible with array frames that support 1/2-inch shackles, such as the VTX A8 MF. An adjustable clamping mechanism allows the RC500 to be secured to a wide range of truss/pipe sizes. The included thrust bearing allows for smooth 360-degree rotation, even when loaded. 10-degree rotation marks allow for quick and easy horizontal aiming, with a locking mechanism to secure the RC500 at the desired position.

Included:

  • (1) VTX RC500 Rotating Clamp
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Construction High-grade steel with anti-corrosion coating
Finish Black powder coat
Mechanical Limits Working Load Limit: 500 kg
Dimensions (H x W x D) 254 mm x 128 mm x 137 mm
Net Weight 3.3 kg
