  • JBL VTX-M20 - Dual 10-inch Professional Stage Monitor

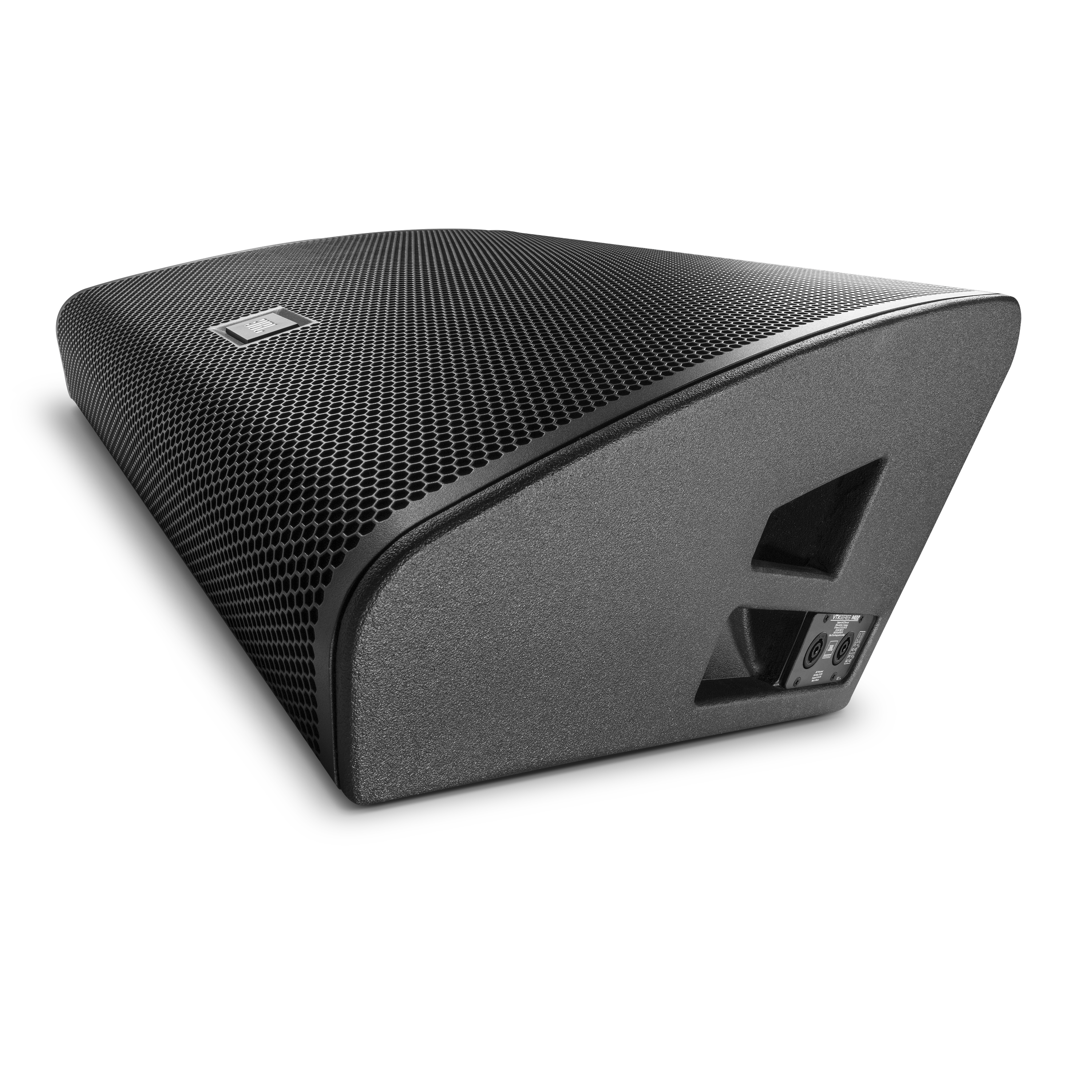

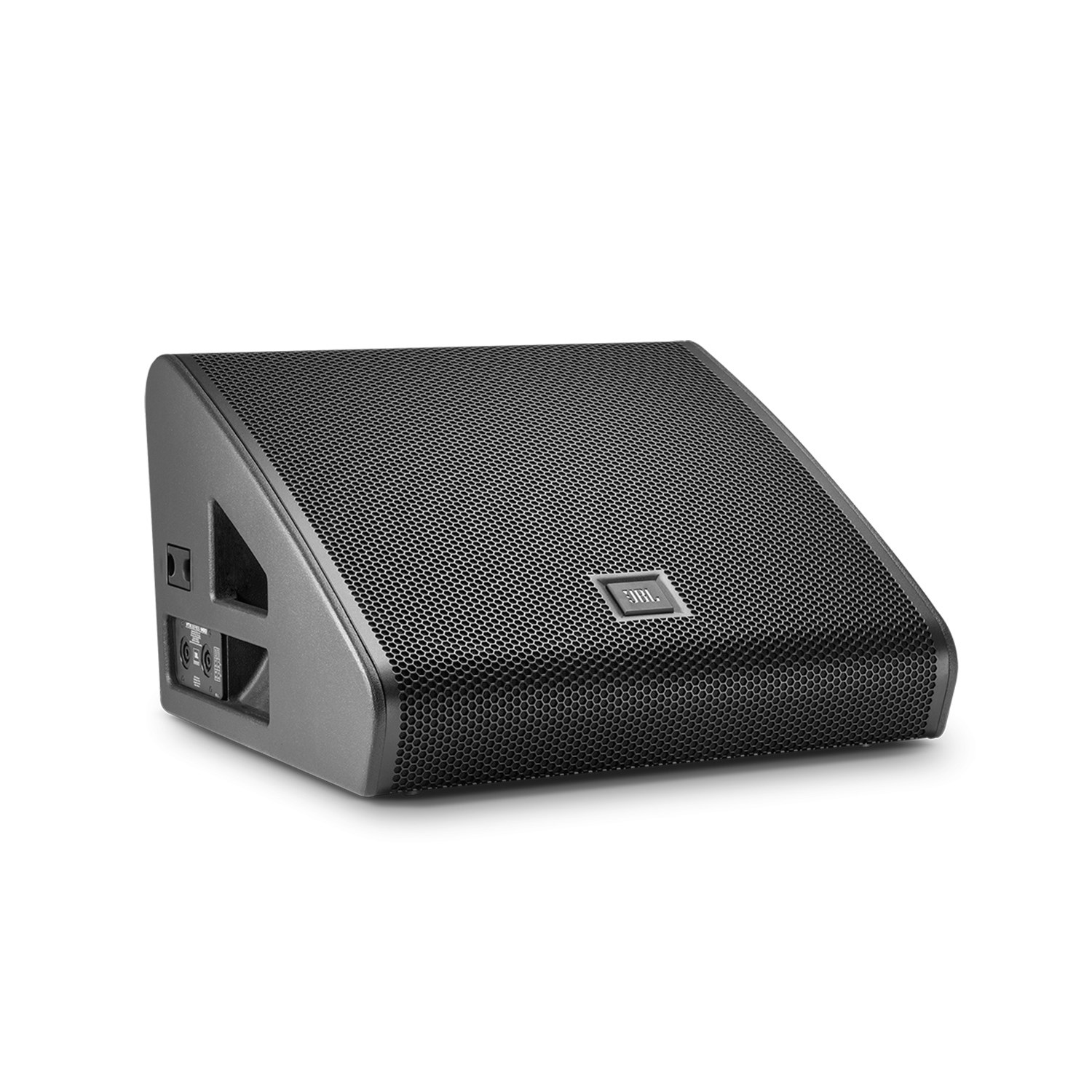

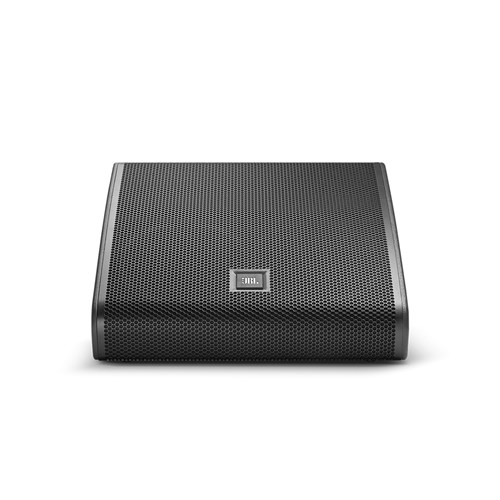

JBL VTX-M20 - Dual 10-inch Professional Stage Monitor

Product Code: JBL VTX-M20

Key Features
  • Elegant, low profile, compact design suitable for touring and high profile broadcast applications
  • State of the art JBL transducers, including Differential Drive™ cone transducers and D2 dual diaphragm dual voice coil compression driver
  • 60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology
  • Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL VTX-M20 - Dual 10-inch Professional Stage Monitor

VTX M Series is comprised of the dual 10” VTX M20 and the dual 12” VTX M22 professional stage monitors, both featuring highperformance differential drive woofers and the large-format D2 dual-diaphragm dual voice-coil high frequency driver. The option of Single-Channel (Passive) or Dual-Channel (Bi-Amp) operation modes comes standard, allowing the user to choose the right option for the application, with no compromise in output power or performance. Drawing on JBL’s unique history of sharing technological innovations across product lines, the VTX M Series HF waveguide features Image Control Waveguide Technology, which gives both the VTX M20 and VTX M22 a broad and stable 60H x 60V coverage that delivers maximum gain-before-feedback. All of these premium, tour-ready features are enclosed in a pair of modern, low profile designs that are lightweight, ergonomic, and show-ready for even the most high profile concert or broadcast events. And because VTX M Series is part of the VTX family, it comes fully supported in JBL HiQNet Performance Manager with V5 presets.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10dB) 55 Hz - 19.5 kHz
Coverage Pattern (-6 dB) Horizontal: 60; Vertical: 60
System Input Power Rating Passive: 1250 W Continuous (IEC / 100 hour) Active: LF: 1250 W Continuous (IEC / 100 hour)             HF: 100 W Continuous (IEC / 100 hour)
Maximum SPL (1m) 136dB (Preset: VTX M20 FR)
System Latency3 3.33ms
System Processing Crown Audio I-Tech HD Series Crown Audio I-Tech 4x3500HD
Nominal Impedance Passive: 4 ohms
Active LF: 4 ohms
Active HF: 8 ohms
LF Driver 2 x 2261H, 254 mm (10 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™
HF Driver 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil
Monitor Angle 30 degrees
Enclosure 18 mm, 11-ply Finnish birch plywood
Grille Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing

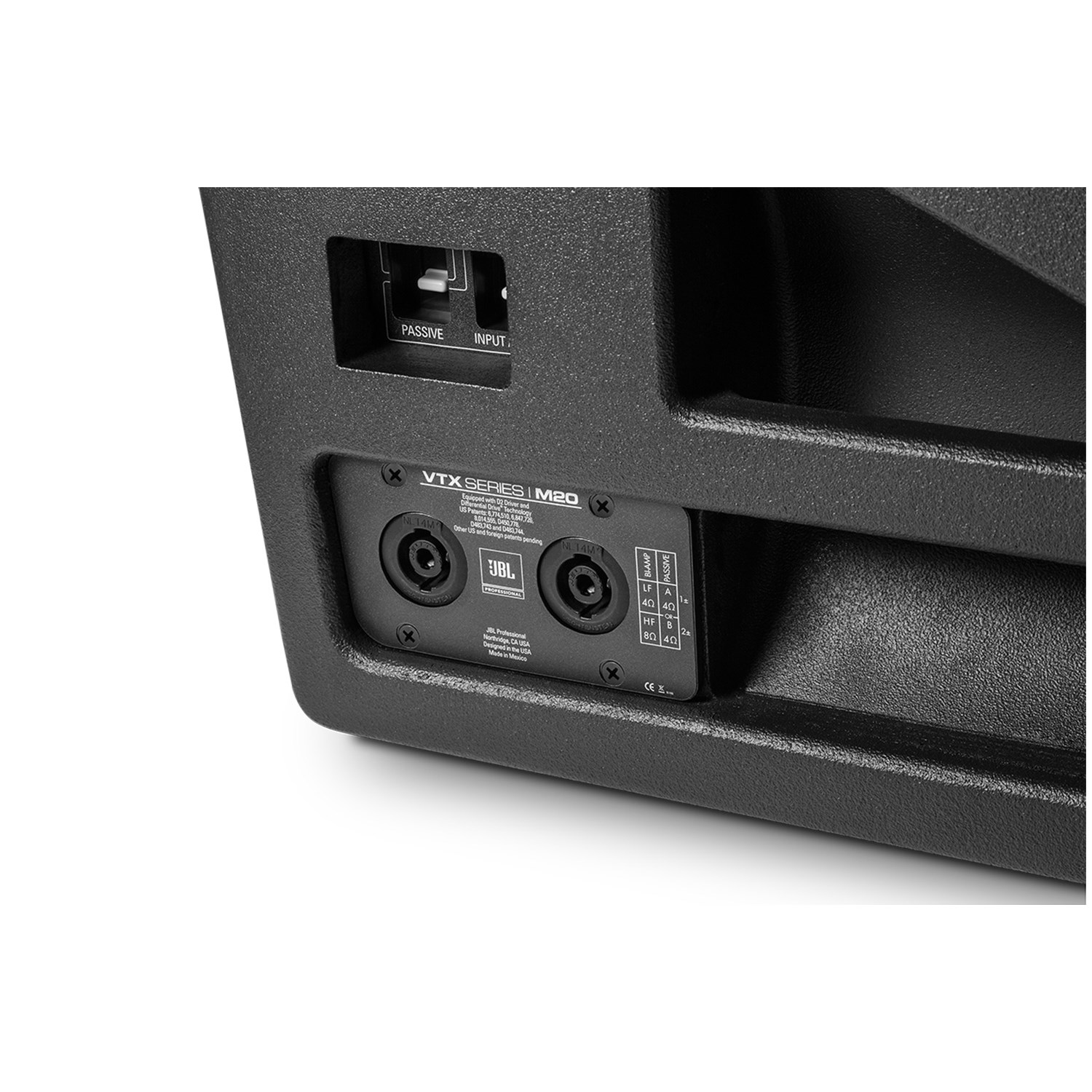

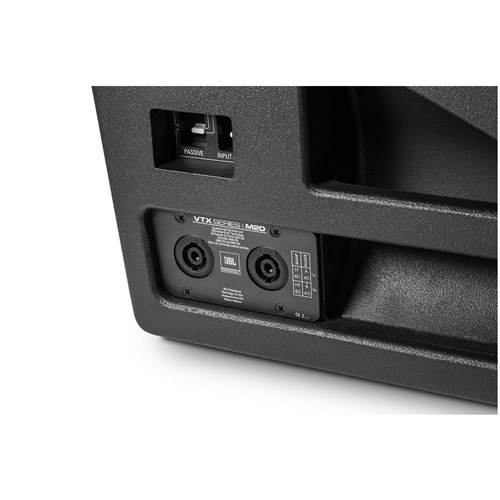

Input Connectors Passive: Neutrik® Speakon® NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ± Active: Neutrik® Speakon® NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)
Dimensions (H x W x D) 342.9 mm x 575.0 mm x 515.3 mm (13.6 in x 22.6 in x 20.3 in)
Net Weight (each) 23 kg (51 lbs)
