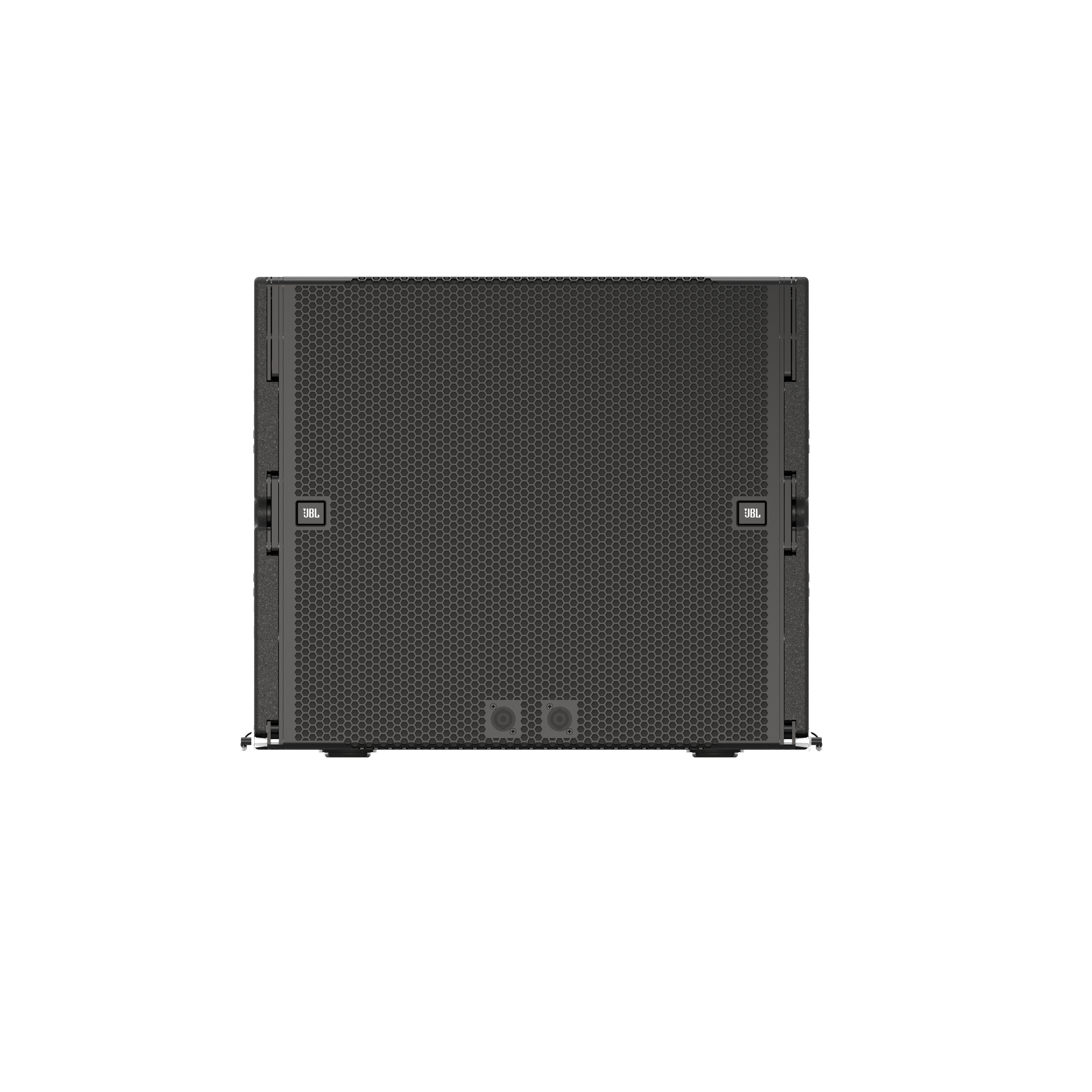

JBL VTX-B15 Sub-compact Arrayable 15-inch Subwoofer

Product Code: JBL VTX-B15

Key Features

The VTX B15 Compact Arrayable 15-inch Subwoofer extends the low-end performance of VTX full-range sound-reinforcement systems, including the VTX A6 Subcompact Dual 6.5-inch Line Array Element. The B15 is a versatile solution for production companies, touring acts, rental houses, theaters, houses of worship or anyone who demands superior sound reinforcement when space is at a premium.

Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL VTX-B15 Sub-compact Arrayable 15-inch Subwoofer

The VTX B15 Compact Arrayable 15-inch Subwoofer extends the low-end performance of VTX full-range sound-reinforcement systems, including the VTX A6 Subcompact Dual 6.5-inch Line Array Element. The B15 is a versatile solution for production companies, touring acts, rental houses, theaters, houses of worship or anyone who demands superior sound reinforcement when space is at a premium.

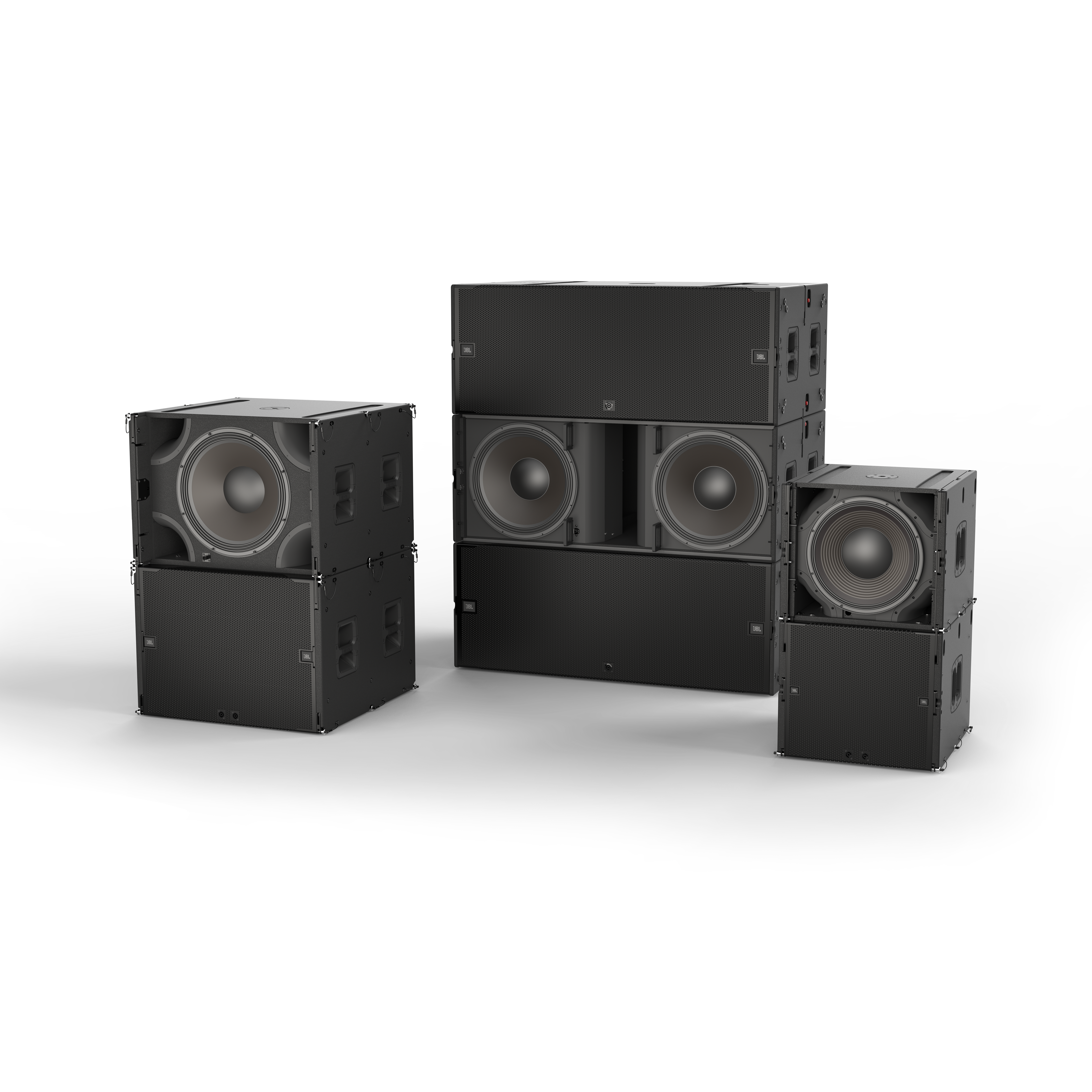

The B15 joins the VTX B Series subwoofer family in harnessing VTX acoustic innovations such as SlipStream™ double-flared expo¬nential ports and Differential Drive® dual-voice coil woofer design. The B15 has the same width and suspension hardware as the A6, allowing the two products to be combined in a range of flown and ground-stacked configurations.

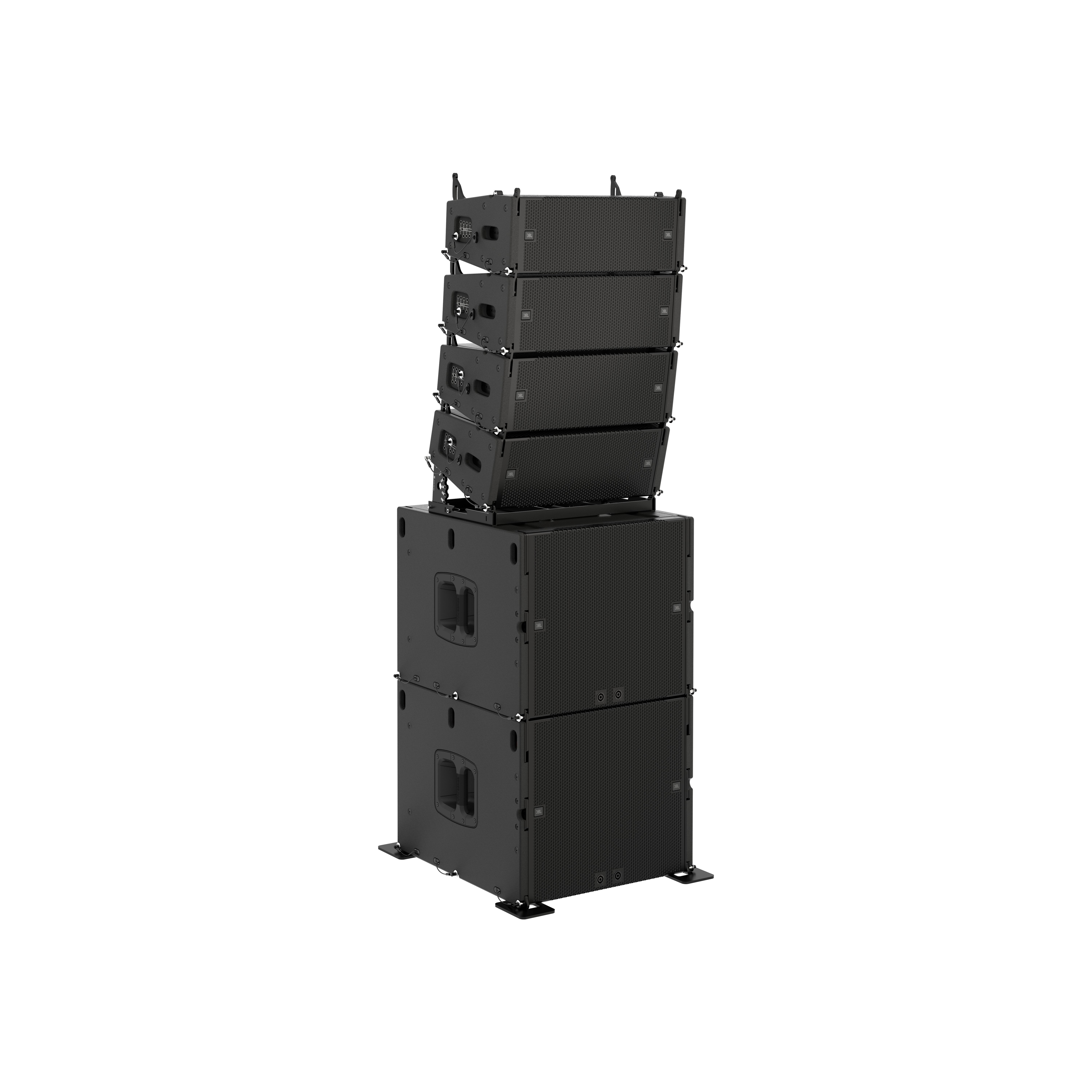

Together with the A6, the B15 brings flagship VTX sound quality and performance to a compact footprint, whether supporting small and midsize applications or supplementing large VTX systems. It’s never been easier to deliver impactful, VTX-quality sound at any scale.

Features:

  • New JBL 2285H 15-inch woofer offers low distortion and improved linearity
  • SlipStream double-flared ports reduce noise and air turbulence
  • Differential Drive dual-voicecoil, dual-gap woofer design delivers superior low-frequency performance in a compact footprint
  • Two models are available: the arrayable B15 and the B15G, designed without rigging hardware
  • Integrates seamlessly with JBL LAC-3, Array Link and Performance Manager software applications

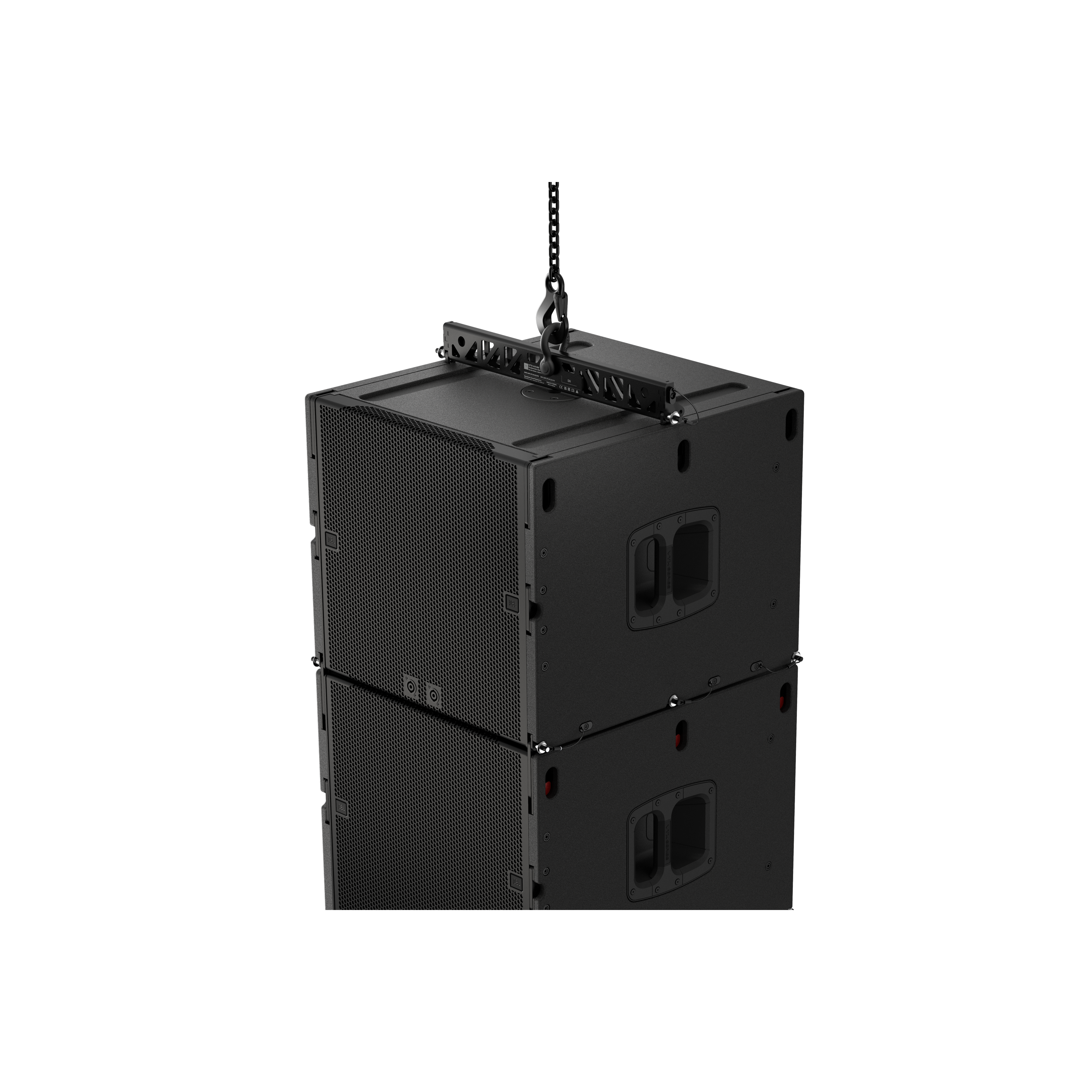

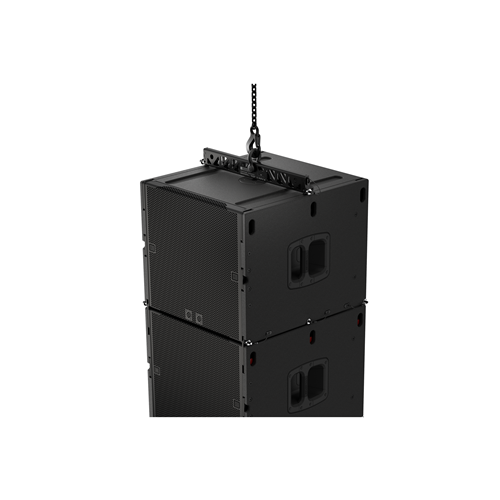

  • Standard VTX rigging and suspension features allow fast, accurate deployment in both ground-stacked and flown configurations
  • Support for omnidirectional and cardioid array configurations

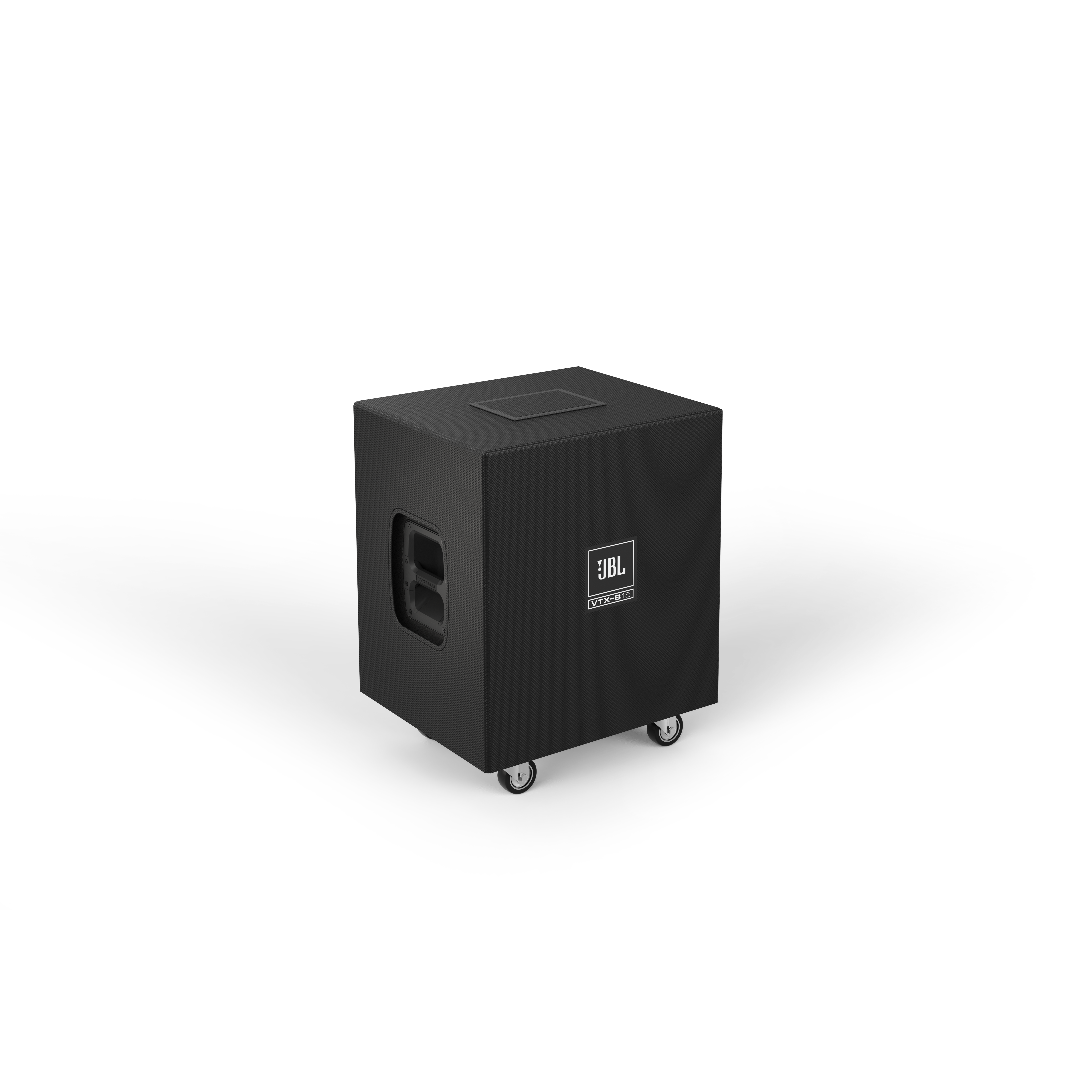

  • Available accessories include mini frame, suspension bar, ground stack accessory and transportation accessories
  • Neutrik STX speakON NL4 connectors
  • Rugged, exterior-grade birch plywood enclosure with black Duraflex™ finish and recessed handholds
  • Powder-coated, hex-perforated stainless steel grille with acoustically transparent cloth backing









Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10dB) 35 Hz-95 Hz (Preset: 80 Hz)
Coverage Pattern Omnidirectional or Cardioid
Maximum SPL (1m) 132 dB (Preset: 80 Hz)
System Processing Crown iTech 9000HD, Crown iTech 12000HD
Crown iTech 4x3500HD
Nominal Impedance 8 ohms
LF Driver (1) JBL 2285H, 15 in diameter, dual 4 in diameter voice coil, neodymium Differential Drive®
Enclosure 15 mm, 18 mm and 24 mm exterior grade birch plywood, black DuraFlexTM finish, two integral recessed handles
Dimensions (H x W x D) 446 mm x 536 mm x 586 mm
18.3 in x 21.1 in x 23.1 in
Net Weight 41.5 kg (91.5 lbs)
