JBL VRX918SP 18 inch High Power Powered Flying Subwoofer

Product Code: JBL VRX918SP

Key Features

18 inch High Power Powered Flying Subwoofer - Black

Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

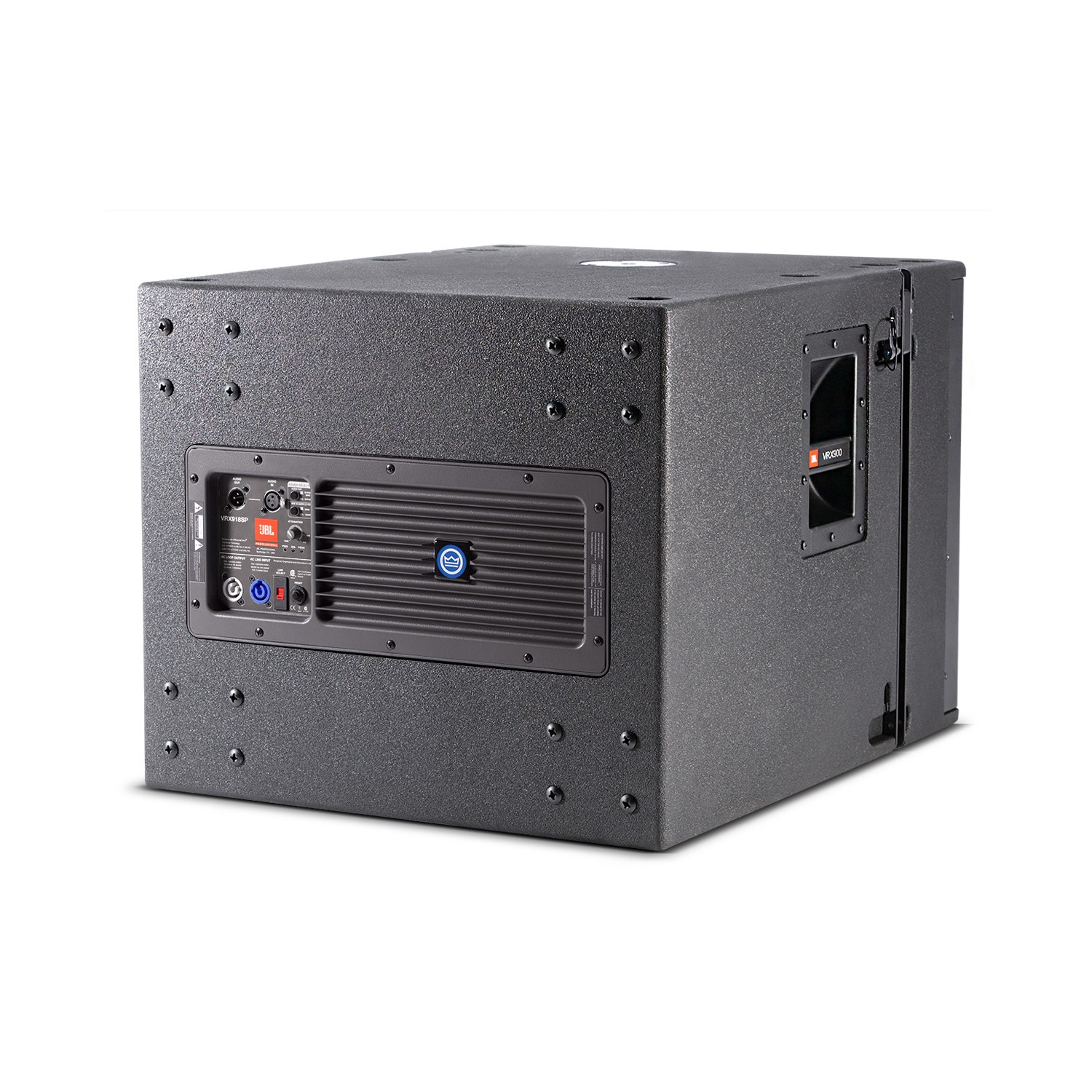

JBL VRX918SP 18" High Power Powered Flying Subwoofer

18 in. High Power Powered Flying Subwoofer

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.

Features

  • Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
  • 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and
    light weight.
  • Integral rigging hardware for simple connection of enclosures and optional array frame.
  • 20 mm threaded pole socket for solid, secure satellite speaker mounting.
  • Large port area for reduced distortion.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Power Rating 1500 Watts PeakLF: Dual-Bridged Technology™, Class D
Frequency Range 31 Hz – 220 Hz
Dimensions (H x W x D) 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
Frequency Range (-10dB) 31 Hz – 220 Hz
Maximum Peak Output 126 dB SPL at 1m
Bandpass Nominal Impedance LF: 2 x 2 ohms
LF Driver 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet
Inputs XLR with loop through
User Controls Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.
System Processing DSP based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range 90-132 VAC or 216-264 VAC, 50/60Hz
AC Line Voltage User selectable: 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector Neutrik PowerCon (NAC 3MPB)
AC Current Requirements 6A per system at 120V, 3A per system at 240V
Enclosure 18 mm birch plywood.
Suspension / Mounting Optional VRX-AF line-array frame kit or 10 mm forged eyebolts
Finish Black DuraFlex™ finish
Grille Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
Net Weight (each) 38.5 kg (85 lb)
Optional Accessories VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit
Outputs 1 x XLR
Nominal Impedance LF: 2 x 2 ohms
