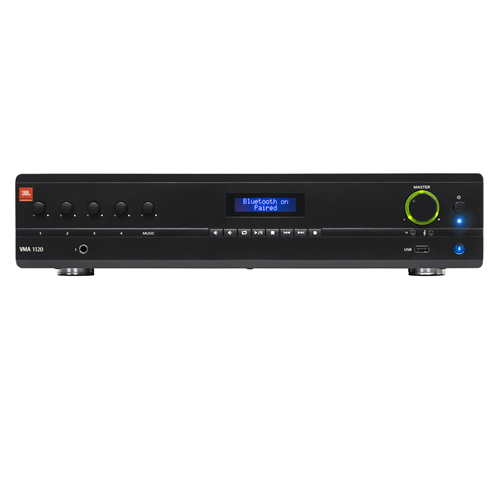

JBL VMA 1120 - 5 Input Channel x 1 120W Output Channel Bluetooth Enabled Mixer/Amplifier

Product Code: JBL VMA1120

Key Features
(5) input channel x (1) 120W output channel Mixer/Amplifier
$1,485.46 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL VMA 1120 - 5 Input Channel x 1 120W Output Channel  Bluetooth Enabled Mixer/Amplifier

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4Ω, 8Ω) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

Features:

  • 5 inputs with 1 output of 120-watts of power
  • Independent bass and treble controls for each output channel
  • 100V and 70V output, or 4Ω/8Ω
  • Paging Chime, and Priority muting
  • Works with JBL CSR-V wall controllers
  • Balanced mic/line inputs; RCA (.775V) inputs
  • Rack mounting hardware included
  • Bluetooth connection for music playback
  • USB playback and record
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Max Output Power per Channel into 4 Ω or 8 Ω; 1kHz, ≤ 0.5% THD - VMA160: 60W VMA1120: 120W VMA1240: 240W
Insertion Loss (70V & 100V outputs) 1dB maximum
Number of Inputs 5
Number of Outputs 1
Tone Controls (Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
Input Sensitivity (to obtain full rated power into 8 Ω load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
Frequency Response (measured at 2.83VRMS into rated load impedance at any output) 4/8 Ω Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
Total Harmonic Distortion (THD) (measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz
Signal to Noise Ratio (Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB
Input Impedance (nominal) Mic: 400 Ω Line: 20 kΩ (balanced) RCA: 50 kΩ
Phantom Power 27VDC
Crosstalk (reference rated power, volume at mid position, 1kHz) -70 dB
Nominal AC Line Voltages 100V, 120V, 220V, 220-240V, 50/60 Hz
Minimum Load Impedance (Low Impedance Output, 70V Output, 100V Output) VMA160: 4 Ω, 80 Ω,160 Ω VMA1120: 4 Ω, 40 Ω, 80 Ω VMA1240: 4 Ω, 20 Ω, 40 Ω
Operating Temperature/Humidity 0°C to 35°C @ 95% R.H. (non-condensing)
Storage Temperature -20°C to 85°C
Net Weight VMA160: 19.4 lb (8.8 kg) VMA1120: 20.2 lb (9.2 kg) VMA1240: 25.5 lb (11.6 kg)
Dimensions Width: 17.0 in. (432 mm) Depth: 16.3 in. (415 mm) Height: 3.5 in. (88 mm)
Shipping Weight VMA160: 24.6 lb (11.2 kg) VMA1120: 25.5 lb (11.6 kg) VMA1240: 30.8 lb (14 kg)
