JBL Sleek Low-Profile On-Wall Loudspeaker with 3 Inch Driver - White - Priced as Each Sold as Pair

Product Code: JBL SLP12T-WH

Key Features
  • Transducer: 75 mm (3 in) full-range
  • Power handling: 30W continuous pink noise, 60W continuous program

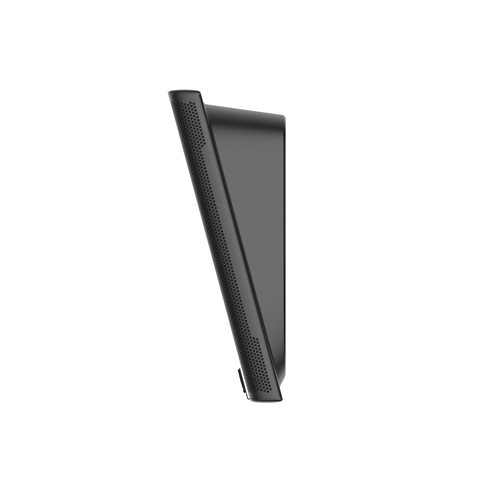

  • 15° down-tilted coverage allows flush-to-wall mounting
  • Included slide-in wall bracket makes installation a breeze
  • Sonically matched to JBL Control 12C/T ceiling speakers
  • Included rain cover protects terminal compartment in protected outdoor applications
  • Multi-tap transformer for use in 70V/100V systems
  • ADA-compliant at less than 4 inches deep
$374.22 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

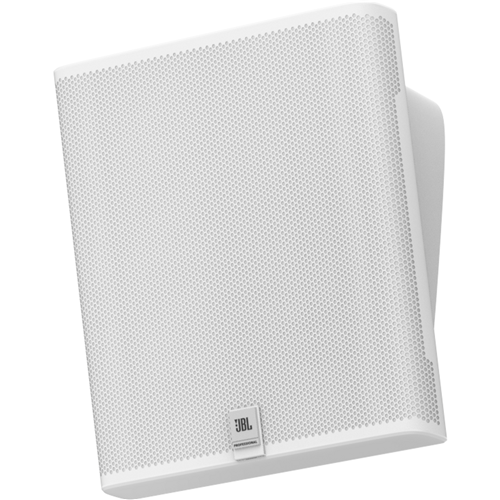

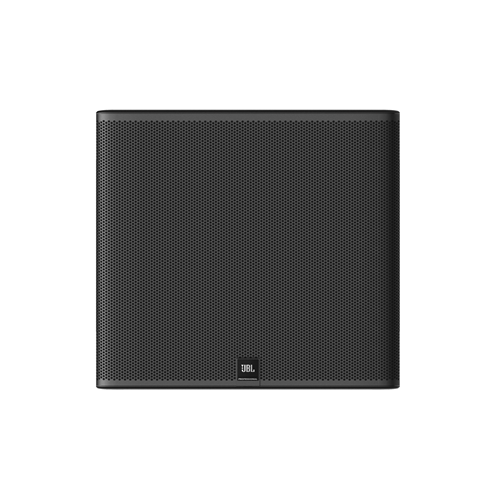

JBL Sleek, Low-Profile On-Wall Loudspeaker with 3 Inch Driver - White

The SLP12/T full-range on-wall loudspeaker provides superior sound and broad, consistent coverage in a sleek, low-profile enclosure, with a powerful 75mm (3-inch) driver that delivers the legendary sound that JBL is known for. The SLP12/T is an ideal foundation for a range of applications: It features a 15-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation; voicing matches well with JBL Control 12C/T ceiling speaker for consistent sound character, allowing mixing and matching within a single system. This compact-yet-robust speaker boasts 40-watt power handling, delivering clean, clear sound at any volume.

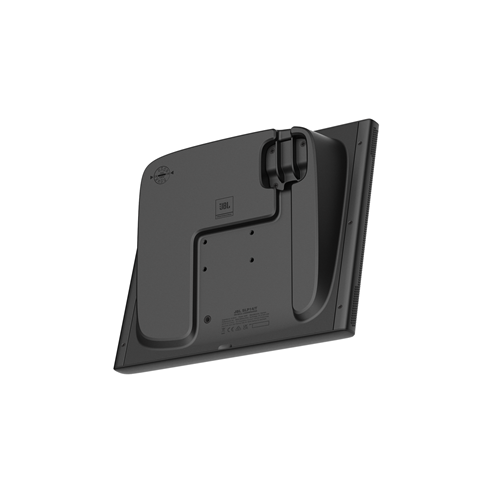

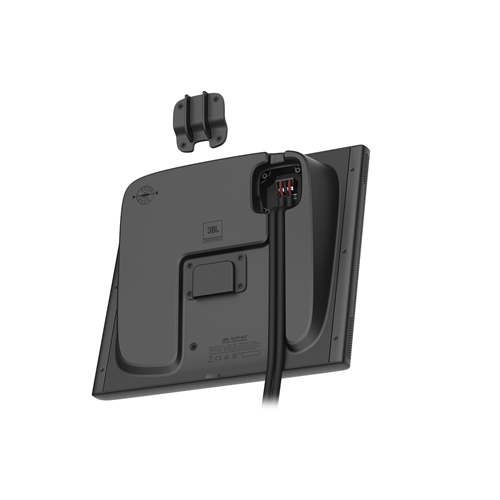

Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker—winner of the RedDot international design award for industrial design excellence—complements any décor and is available in black or white finishes.

The stylish, highly versatile JBL SLP12/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.



Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10dB) 90 Hz – 20 kHz
Frequency Response (+/-3 dB) 110 Hz – 15 kHz
Power Rating 60 W Continuous Program (2 hrs)
30 W (160 W Peak), Continuous Pink Noise (2 hrs)
20 W (80 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity 84 dB (80 Hz – 20 kHz) half-space (mounted on a wall)
Maximum SPL 105 dB peak (99 dB continuous, 2 hr) @ 1m
Nominal Coverage 130° horizontal x 130° vertical
Directivity Factor (Q) 6.1
Directivity Index (DI) 7.8 dB
Nominal Impedance 8 (at 8 tap setting)
Transformer Taps 70V: 15 W, 7.5 W, 3.8 W, 1.9W
100V: 15 W, 7.5W, 3.8W
Driver 75mm (3 in) full-range driver, polypropylene cone 20 mm (0.8 in) voice coil on Kapton™ voice coil former
Terminals Terminals 4-pin Euroblock connector for bare wire
Enclosure Material Polycarbonate + ABS, UL94V-0 flammability rated
Color Black or white
Dimensions 248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in)
Net Weight 2.1kg (4.6 lbs.)
Included Accessories Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use.
