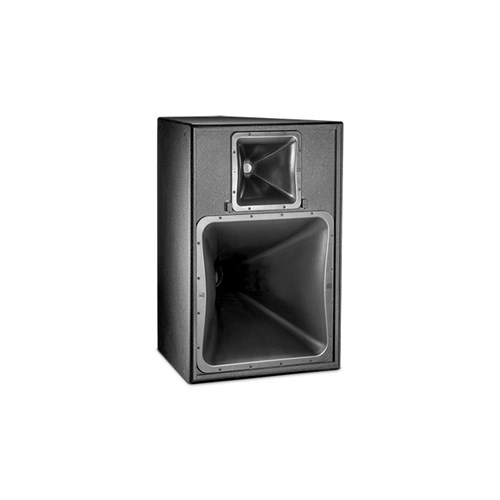

JBL PD6212/95-WRC - Precision Directivity Full Range Two-Way Loudspeakers with Weather Protection Treatment

Product Code: JBL PD6212-95-WRC

Key Features
High Sensitivity Two-Way FULL-RANGE Loudspeaker with Horn Loaded 12" LF and 90° x 50° Coverage Pattern. 300 mm (12 in.) M222- 8A Horn-loaded LF and Large Format 2451H-1 Neodymium HF Driver. 80 Hz to 18 kHz Frequency Range. 991 x 673 x 706 mm. (39 x 26.5 x 27.8 in), 69 kg (152 lbs). With Extreme Weather Protection Treatment. Refer to WEATHER RESISTANT Configurations for AE, PD & VLA Series document for details regarding WRC/WRX models. Standard color is GRAY. Available in Black (-BK) & White (-WH).
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

Precision Directivity Full Range Two-Way Loudspeakers

The PD6212 Series Precision Directivity loudspeakers are designed for applications requiring high output capability with excellent pattern control. The speakers can be utilized alone in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full range systems.

Features

  • 300 mm (12 in) horn-loaded LF and largeformat HF driver high sensitivity design with high continuous
    SPL capability.
  • Large PT Progressive Transition waveguides provide broad band pattern control, low distortion at high SPL levels and smooth frequency response.
  • Rotatable low and high frequency waveguide allow either horizontal or vertical cabinet orientation.
  • Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
    Frequency Range 80 Hz to 18 kHz (-10 dB)
    Frequency Response 90 Hz to 16 kHz ( 3 dB)
    Coverage Pattern /43: 40 x 30 /64: 60 x 40 /66: 60 x 60 /95: 90 x 50
    Crossover Modes Bi-amp / Passive switchable
    Passive Crossover 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 850 Hz
    Transducer Power Rating (AES) LF: 400 W (1600 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
    Long-Term System Power Rating (IEC) Passive Mode: 300 W (1200 W peak), 100 hrs
    Maximum SPL LF: 137 dB-SPL HF: 135 dB SPL (141 dB peak)Passive Mode: 134 dB SPL (140 dB peak)
    System Sensitivity Passive Mode: 109 dB-SPL
    Low Frequency Driver M222-8A 300 mm (12 in) driver with 75 mm (3 in) voice coil
    High Frequency Driver 2453H, 38 mm (1.5 in) exit compression driver with 100 mm (4 in) voice coil
    Nominal Impedance 8 ohms
    Enclosure Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior
    Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware
    Finish Black DuraFlex finish. White (-WH) available upon request.
    Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements.
    Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam
    Input Connectors Neutrik Speakon NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
    Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
    Dimensions (H x W x D in vertical orientation) 991 x 673 x 897 mm
    Net Weight 79.5 kg (175 lb)
    Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
