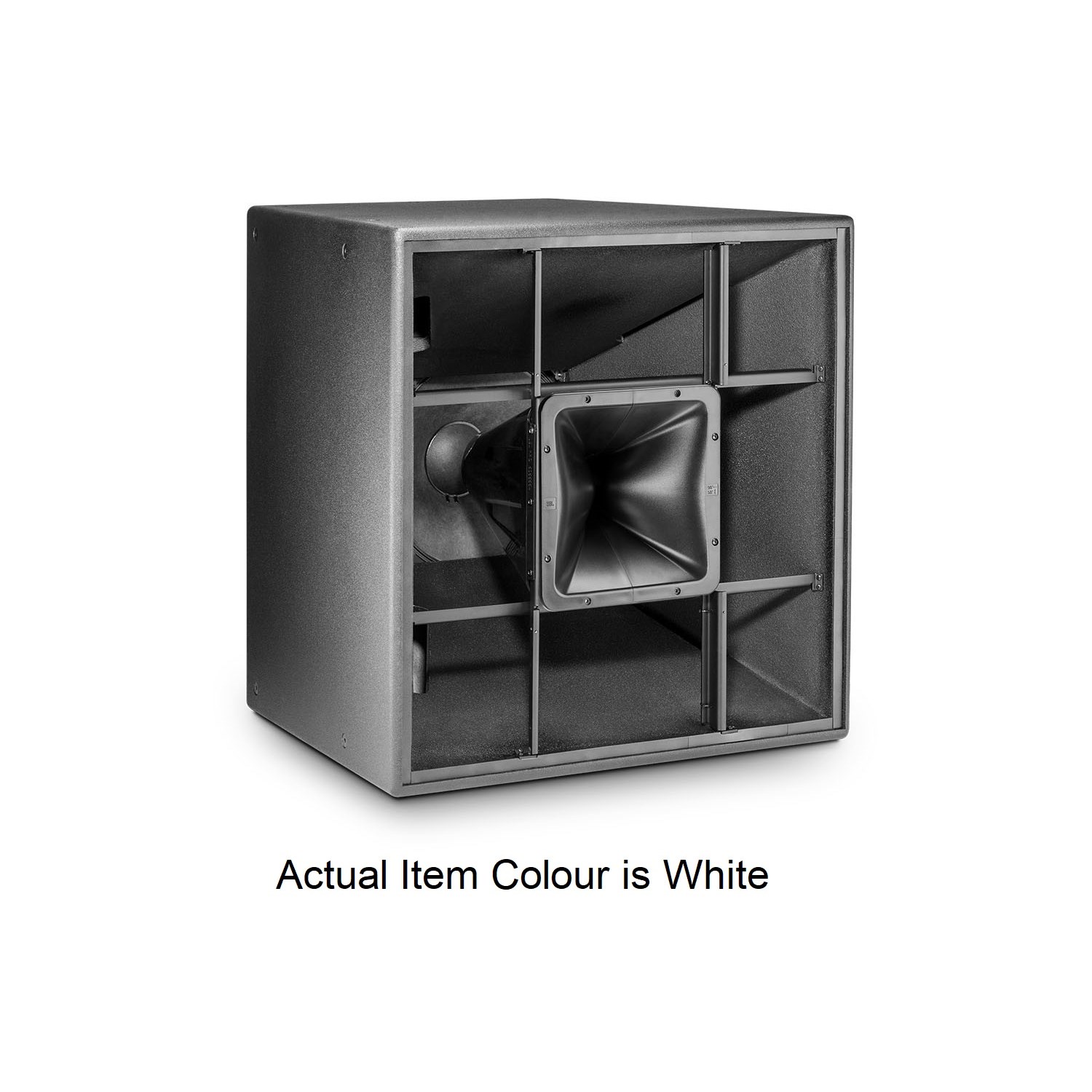

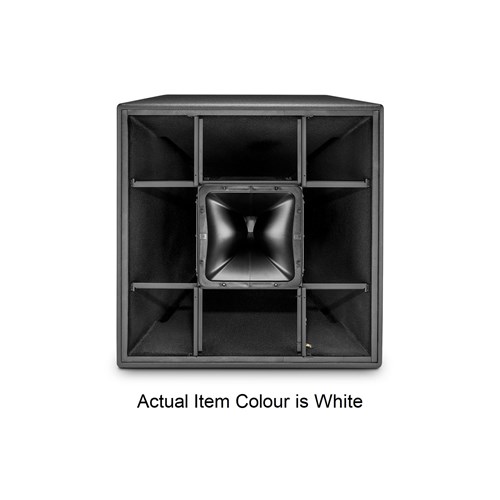

JBL PD595-WRX - 15 Inch Horn-Loaded Full-Range Loudspeaker System White with Extreme Weather Protection Treatment

Product Code: JBL PD595-WRX-WH

Key Features
15" Horn-loaded 2-way full-range loudspeaker 2-way system, 90° x 50° coverage pattern with 2432H 38mm (1.5 in) exit, 75mm (3 in) voice coil HF driver and 2031H 75mm (3 in) voice coil LF driver. With Extreme Weather Protection Treatment.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

15” Horn-Loaded Full-Range Loudspeaker System White

PD595 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control. PD595 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth fullrange systems.

Features

  • 380 mm (15”) horn-loaded low-frequency driver
  • Large PT™ Progressive Transition™ waveguides provide broad band 90° x 50° pattern control, low distortion at high SPL levels and smooth frequency response
  • Rotatable waveguide allows for either horizontal or vertical cabinet orientation
  • Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
  • Extreme Weather Protection Treatment

Applications

  • Sports Facilities
  • Performance spaces
  • Auditoriums
  • Worship facilities
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10 dB) 50Hz to 20kHz
Frequency Response ( 3 dB) 90Hz to 16kHz
Coverage Pattern 90 x 50
Directivity Factor (Q) 10
Directivity Index (DI) 10 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover 1.3 kHz
Transducer Power Ratings (AES) LF: 450W 2hrs, 300W 100hrs HF: 75W, 2hrs, 50W 100hrs
System Power Rating (IEC) Passive mode: 500W 2hrs, 300W 100hrs (IEC)
Maximum SPL Bi-amp: LF: 133 cont (139 peak) HF: 131 cont (137 peak) Passive: 131 cont (137 peak)
System Sensitivity (1w @ 1m) 104 dB SPL
Nominal Impedance 8 ohms
Low Frequency Driver 2031H 380 mm (15 in) driver with 75 mm (3 in) voice coil
Sensitivity (1W, 1m within operational band) 106 dB (avg 300Hz-1.3kHz)
High Frequency Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (1W @ 1m) 113 dB (avg 1.5k-5kHz)
Waveguide HF: PT-H95HF-1 300 x 300 mm (12 x 12 in)
Enclosure Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood.
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish White DuraFlex finish.
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. See WRC/WRX configuration sheet for details.
Grille Powder coated 14 gauge perforated steel, acoustically transparent and weather resistant cloth backing.
Input Connectors CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental Specifications Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation) 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in)
Net Weight 69.0 kg (152 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
