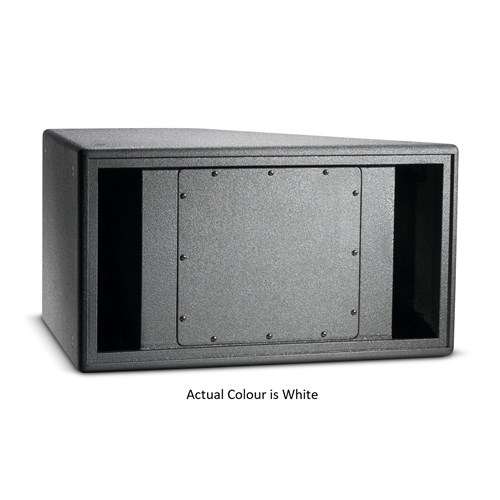

JBL PD5122-WH - Full Range / Low Frequency Speaker - White

Product Code: JBL PD5122-WH

Key Features
High Output Low Frequency Loudspeaker with 12" Slot Loaded Woofers. Two 300mm (12 in.) VGC Vented Gap Cooled 2206H Low Frequency Drivers in a Slot Loaded, Vented Configuration. Same as LF Section in PD5322 Series. 41 Hz to 1 Hz Frequency Range. 375 x 673 x 706 mm (14.8 x 26.5 x 27.8 in.), 36.4 kg (80 lb). White finish.
$8,575.91 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL PD5122-BK - Full Range / Low Frequency Speaker - White

The PD5122 is intended for use as a flown or ground supported, high power low frequency module used in conjunction with mid/high-only or fullrange systems of the PD5000 series.

Features:

  • Dual high power 300 mm (12 in) low frequency drivers.
  • Designed to extend LF pattern control of PD6322 systems.
  • Slot-loaded configuartion duplicates LF performance of PD6322.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range 41 Hz to 1 kHz (-10 dB)
Frequency Response 49 Hz to 300 Hz ( 3 dB)
Transducer Power Rating (AES) 1600W (6400 W peak) 2 hrs
Long-Term System Power Rating (IEC) P1200 W (4800 W peak), 100 hrs
Maximum SPL 128 dB-SPL cont avg (134 peak)
Input Modes Drivers Parallel / Drivers Discrete
Nominal Impedance 4 ohms in parallel-drive mode
Sensitivity (1W, 1m) 116 dB-SPL
Low Frequency Driver 2 x JBL 2206H 300 mm (12 in) VGC drivers with 100 mm (4 in) voice coil with minimal power compression and low distortion
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply
Waveguides MF: PT-N64MF 600 x 600 mm (24 x 24 in) HF: PT-H64HF 300 x 300 mm (12 x 12 in)
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish White DuraFlex finish.
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments.
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
Input Connectors Neutrik Speakon NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental Specifications Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation) 357 x 673 x 706 mm (14.1 x 26.5 x 27.8 in)
Net Weight 36.4 kg (80 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
