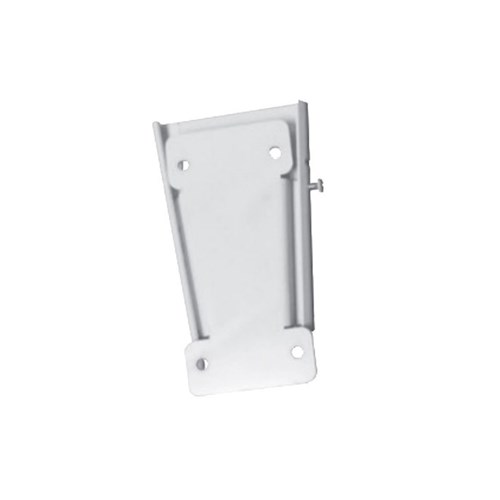

JBL MTC-CBT-FM1-WH - Flush Mount Wall Bracket for CBT50LA-1 and 100LA-1 - White

Product Code: JBL MTC-CBT-FM1-WH

Key Features
"Flush-Mount" Wall Bracket for CBT50LA-1 and 100LA-1
$142.12 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL MTC-CBT-FM1-WH - Flush Mount Wall Bracket for CBT50LA-1 and 100LA-1 - White



Key Features:

  • Provides Low-Profile, Close-to-Wall Mounting Brackets for JBL CBT Line Array Column Speakers
  • Drop-In Ease of Assembly with Set Screw(s) for Secure Installation
  • ROHS-Compliant Zinc Plating for Weather Resistance
  • For Mounting Speaker in Typical Vertical Orientation (not for Horizontal Orientation)
  • For Use with CBT 50LA-1 and CBT 100LA-1.
  • Loudspeaker-Mount Section of bracket attaches to the included insert points on the back panel of the speaker (using the M6x15 mm bolts, flat washers & lock washers that come with the speaker). Mounting points are at 107.6 mm x 50.8 mm (4-1/4 x 2 inch) spacing.
  • Wall-Mount Section has 3 aligned holes vertically; 3 aligned holes horizontally.
  • Loudspeaker-Mount Section drops easily into Wall-Mount Section. Set screw holds securely.
  • 2.25 mm thick (13-Gauge AWG) Metal Bracket assembly spaces back of speaker within 16 mm  0.62 inches) of wall (typical).
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
