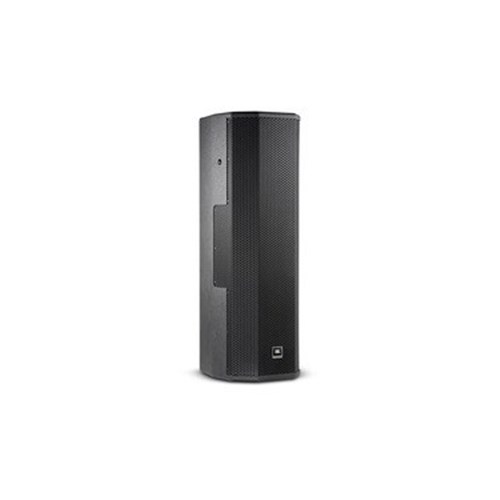

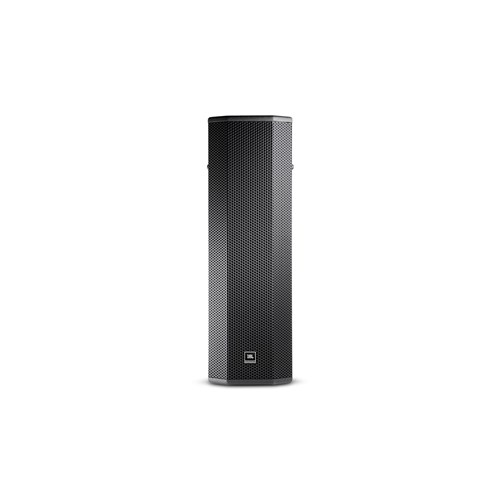

JBL CWT128-WH Dual 8 Inch 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology White

Product Code: JBL CWT128-WH

Key Features
JBL CWT128-WH 2-Way Full-Range Crossfire Waveguide - White, Crossfired Waveguide Technology. Extremely Wide Coverage Dual 8", Dual 2408H-1 Compression Drivers In A Compact 2-Way Passive Loudspeaker System. 400W Watt Pink Noise Power Handling. 1600 Watt Peak Power Handling. 126 Db Maximum Spl, 8 Ohms. Foam Backed Powder Coated 16 Gauge Steel Grille. Four M10 Suspension Points And Omnimount Provision On Rear Panel. Standard Finish: Black Duraflex. Optional Finishes: White (-Wh), Wrc And Wrx. Net Weight 18.6 Kg (40.9 Lbs).
$8,382.96 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Dual 8" 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology

The JBL Crossfired Waveguide Technology CWT128 is a compact full-range 2-way system designed to provide extremely wide-angle coverage with maximum bandwidth and SPL in a single system package. The unique wide coverage pattern horn is designed to provide seamless coverage to 160-degrees horizontally. CWT128’s small footprint makes the system ideal for nearly all architecturally sensitive environments, taking up about a third of the footprint of two speakers splayed side by side.

Features

  • Seamless horizontal coverage across a full 160°
  • Compact size and small footprint make it ideal for architecturally sensitive environments

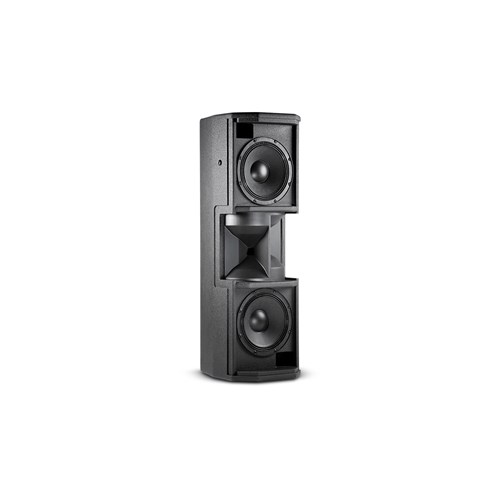

  • Dual 205 mm (8 in) LF transducers
  • Extremely wide-coverage 160° x 60° waveguide
  • Dual 25 mm (1") exit, 38 mm (1.5") diaphragm compression driver
  • Easy to install with 4 M10 attachment points built in across the top and sides
  • 4 M8 points on the back panel accept OmniMount® wall mounting brackets
  • WRC and WRX weather resistant versions are available upon request
  • CWT128 is available in white - WH

Applications

  • Transportation Facilities
  • Cinema
  • Sports Facilities
  • Theme Parks
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

System Format Extremely Wide Angle Coverage Dual 8" 2-Way Loudspeaker System
Frequency Range (-10dB) 71 Hz - 20 kHz
Frequency Response (±3 dB) 96 Hz - 19 kHz
Coverage Pattern 160° x 60°
Maximum SPL (1m) 129 dB
System Nominal Impedance 8 Ohms
Long-Term System Power Rating 450W (1800W Peak)
System Power Rating 850W/1700W/3400W Continuous/Program/Peak
Crossover 1.5 kHz
LF Driver 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
HF Driver 2 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil

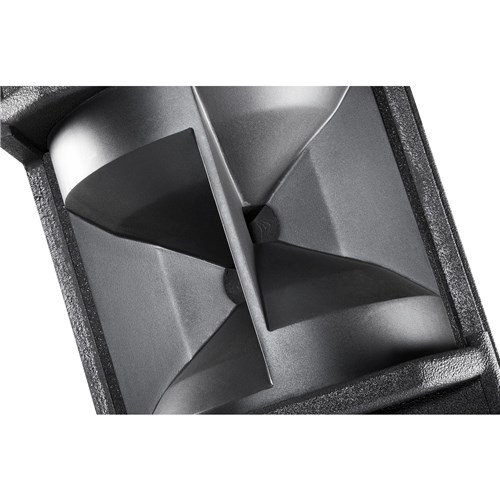

High-Frequency Waveguide Crossfired Waveguide
Finish Black DuraFlex™ finish. White (-WH) available upon request
Dimensions (w x h x d) 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in)
Net Weight (each) 18.6 kg (40.9 lb)
Crossover Modes Passive
System Sensitivity (1w @ 1m) 94 dB SPL
Nominal LF Driver Impedance 8 Ohms
Transformer Taps 70V: 110W, 55W, *28W 100V: 110W & 55W
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 4 x M10 (1 x M10 points, one top, one bottom, plus 1 x M10 point on each side panel.) 4 x M8 rear for MultiMount® MM-120-BT
Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
