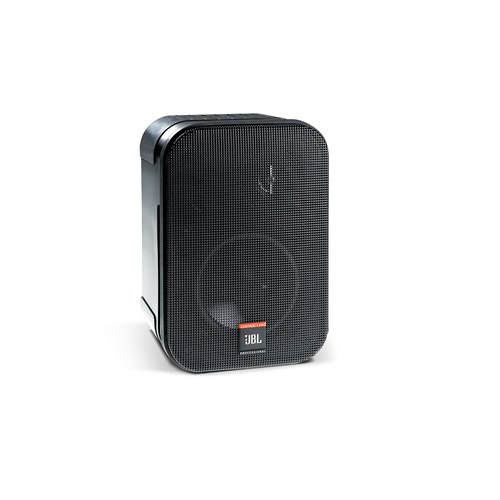

JBL CSS-1S/T - Compact Two-Way 100V/70V/8-Ohm Loudspeaker - Priced as Each Sold as Pair

Product Code: JBL CSS-1S-T

Key Features
Compact 2-Way 100V/70V/8 Surface-Mount Loudspeaker. 5¼ LF and ¾ HF, 85 Hz 18 kHz, 10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines (10W and 5W taps, plus 2.5W at 70V only), or 60W at 8 , ball-type wall-mount included. (priced as each; sold in pairs). 5¼ LF and ¾ HF, 85 Hz 18 kHz, 10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines (10W and 5W taps, plus 2.5W at 70V only), or 60W at 8 , ball-type wall-mount included. (priced as each; sold inCompact 2-Way
$479.13 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Compact Two-Way 100V/70V/8-Ohm Loudspeaker

CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5.25 inch) low frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.

Features

  • 10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines
  • 8 Ohm Direct Setting
  • Included Wall-Mounting Bracket
  • Professional Drivers and Network

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 85 Hz 18 kHz
Frequency Response ( 3 dB) 120 Hz 16 kHz
Power Capacity 60 Watts
Sensitivity 86 dB SPL, 1W (2.83V) at 1m (3.3 ft)
Maximum SPL 106 dB at 8 Ohm Direct setting; 96 dB at 10W setting
Nominal Coverage 120 H x 120 V
Directivity Factor (Q) 6.2
Directivity Index (DI) 7.9 dB
Nominal Impedance 8 ohms (in 8 DIRECT mode, selectable on back panel)
Transformer Taps 10 W, 5 W (& 2.5W @ 70V)
Crossover Frequency 4.3 kHz
LF Driver 135 mm (5.25 in) low frequency driver
HF Driver 19 mm (0.75 in) polycarbonate dome tweeter
Input Connectors Spring-loaded terminals
Enclosure Material Polypropylene Structural Foam
Color Black
Dimensions 229 mm x 159 mm x 143 mm(9.0 in x 6.3 in x 5.6 in)
Net Weight (each) 2.0 kg (4.5 lb)
Shipping Weight (pair) 4.8 kg (10.5 lb)
Included Accessories Wall-mounting bracket assembly
