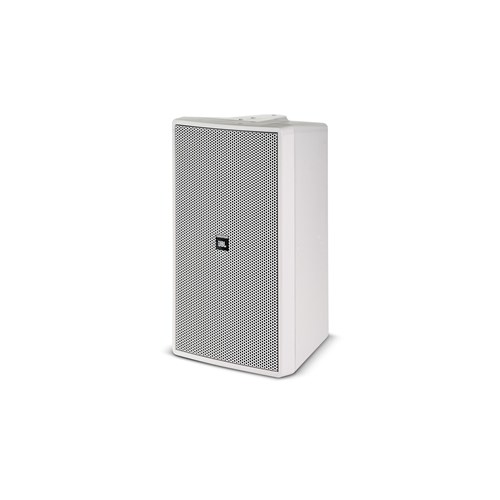

JBL Control 29AV-1 - Premium Indoor / Outdoor Monitor Speaker White

Product Code: JBL C29AV-1-WH

Key Features
High Output Indoor/Outdoor Monitor Speaker. 150W Pink Noise, 300W Program Power, 92 dB Sensitivity. 70V/100V Taps at 110W, 55W, & 28W (and 14W at 70V) plus 8 ohm Thru. 110° x 80° Coverage with Rotatable Horn. Built-In Invisiball® Installation System plus Ten M6 Suspension Points. Kevlar Cone Woofer and Titanium Compression Driver. Includes Sonicguard(tm) Overload Protection. Includes MTC-PC2 Sealed-Entrance Panel Cover, in White. (Priced and Packed as Each).
$1,731.27 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Premium Indoor / Outdoor Monitor Speaker

Features

  • Extended bandwidth, extremely smooth frequency response.
  • 110 x 85 HF coverage, rotatable horn.
  • 110 W transformer for 70 V or 100 V lines, with 8 ohm thru.
  • SonicGuard overload protection.
  • 200 mm (8 in) Kevlar cone woofer,
    25 mm (1 in) titanium diaphragm compression driver.
  • Includes InvisiBall mounting hardware, plus ten 6 mm attachment points for suspension and
    optional U-bracket.
  • Sealed input panel cover and screwdown input terminals.
  • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Range 37 Hz 18 kHz (-10 dB)
    Power Capacity 300 W Continuous Program Power; 150 W Continuous Pink Noise
    Transformer Taps 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W, Thru Position: 8 ohms nominal
    Frequency Response 45 Hz 18 kHz ( 3 dB)
    Maximum SPL @ 1m Short-Term: 120 dB; Long-Term: 114 dB
    Nominal Sensitivity 90 dB (2.83V / 1m)
    Nominal Coverage Angle 110 H x 85 V, rotatable
    Directivity Factor (Q) 7.2 dB, averaged 500 Hz to 16 kHz
    Directivity Index (DI) 8.6 dB, averaged 500 Hz to 16 kHz
    Nominal Impedance 8 ohms
    Minimum Impedance 6.3 ohms @ 230 Hz
    Crossover Network 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency
    Low Frequency 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former
    High Frequency 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
    Enclosure Material High impact polystyrene
    Grille Thermoset composite coated steel, WeatherMax multi-layer foam
    Overload Protection Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions.
    Environmental

    IEC 529 IP-X4 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.

    Terminations Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2).
    Safety Agency Rating Transformer is listed per UL1876
    Colors Black or white (-WH)
    Dimensions (H x W x D) 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.)
    Net Weight (ea) 12.2 kg (26.8 lb.)
    Shipping Weight (ea) 14.0 kg (30.8 lb.)
    Included Accessories 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench.
    Optional Accessories MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket
