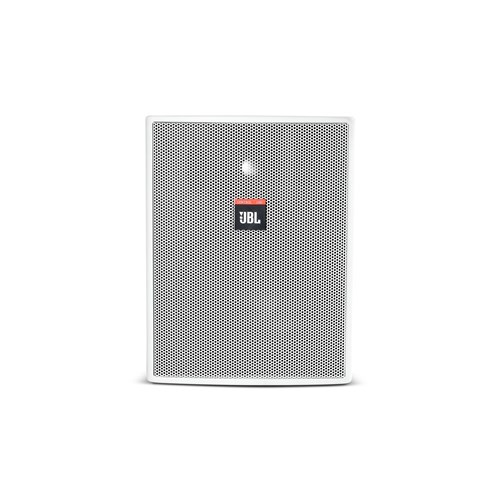

JBL Control 25AV-LS - Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications White - Priced as Each Sold as Pair

Product Code: JBL C25AV-LS-WH

Key Features
Premium 5.25" two-way, UL1480 UUMW rated for fire alarm use, highly weather resistant, aluminum grille, UL1480/UUMW rated, 110 x 85 coverage, 200W program power, 70V/100V taps at 60W, 30W, 15W (7.5W @ 70V only), See spec sheet for details of UL listing, MTC-PC included, white (priced as each, sold in pairs).
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications

The Control 25AV-LS built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems.

Features

  • UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems; EN54-24 certified
  • Video shielded for use near video monitors.
  • Extremely smooth frequency response.
  • Aluminum Grille with Polyester Powder Coating for enduring reliability.
  • 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
  • SonicGuard overload protection.
  • 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
  • Includes InvisiBall mounting hardware and sealed input panel cover.
  • Screw-down input terminals.
  • 105 x 85 high frequency horn.

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Freq. Range (-10 dB) 90 Hz - 20 kHz
Power Capacity 200 Watts Continuous Program Power (at 8 ohm bypass mode) 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) 60 Watts (at 60W tap setting)
Transformer Taps 60W, 30W, 15W (& 7.5W @ 70V)
Nominal Sensitivity 87dB, 1W at 1m (1kHz–10kHz, ave., at 8 ohm bypass mode); 71 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 60W tap)
Nominal Coverage Angle 110 x 85 (1kHz to 16kHz)
Directivity Factor (Q) 4.8 (500 Hz to 4kHz)
Directivity Index (DI) 6.5dB (500 Hz to 4kHz)
Rated Maximum SPL 107 dB @ 1m (3.3 ft) average, 113 dB peak, at 8 ohms bypass mode, 89 dB at 4 m (13.2 ft.) average, at 60W tap setting, measured
LF Driver 130mm (5.25 in) with polypropylene coated paper cone withWeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
HF Driver 20mm (.75 in) titanium coated PEI
Termination Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
Cabinet Material ABS, (materials rated UL94-5VA)
Grille Aluminum with polyester powder coating
Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating
Safety Agency UL1480-UUMW Listed (S7232), EN54-24:2008 certified (Certificate No. 0359-CPR-00245), NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849
Dimensions (H x W x D) 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
Net Weight 3.8 kg (8.4 lbs) ea
Shipping Weight 8.6 kg (19 lbs) pair
Included Accessories 1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench
Optional Accessories MTC-25V for vertical columnar mounting of up to 3 speakers MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360 horizontal coverage.MTC-28/25CM to install speaker down from the ceiling.See JBL Control Contractor Bracket and Adapter Handbook.
