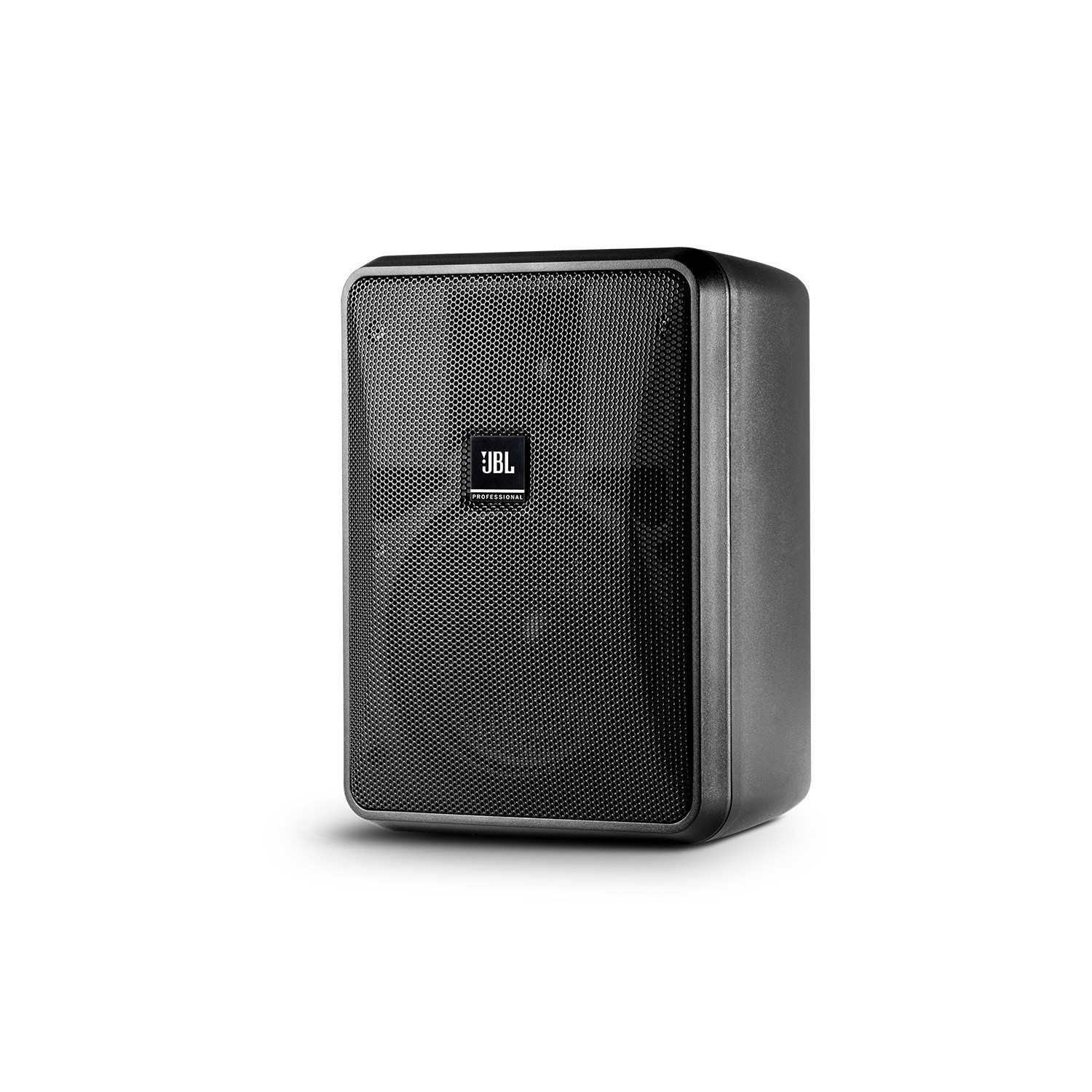

JBL Control 25-1L - Compact 8-Ohm Indoor/Outdoor Background/Foreground Speaker Black - Priced as Each Sold as Pair

Product Code: JBL CTRL25-1L-BK

Key Features
Low-Impedance-Only Version of Control 25-1 (&-WH), without 70V/100V transformer, 8 ohms only.
$609.79 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Compact 8-Ohm Indoor/Outdoor Background/Foreground Speaker

The Control® 25-1L is a two-way 5-¼” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Features

  • 5-¼” woofer with woven fiberglass cone
  • 3/4” PEI diaphragm tweeter with fluid cooling
  • Contemporary, high-design appearance
  • Built-in InvisiBall® mounting hardware, plus available U-bracket
  • Weather resistant enclosure and transducers
  • Wide 100° x 100° coverage
  • 100 Watt power handling (200 Watt program)
  • High fidelity sound character with broad frequency response of 60 Hz – 20 kHz.

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 60 Hz to 20 kHz
Frequency Response (+/-3 dB) 85Hz - 17 kHz
Power Rating 200 W Continuous Program (2 hrs) *Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor. Continuous Program Power is defined as 3 dB above the Continuou Pink Noise Rating and is a conservative expression of the system s ability to handle normal speech and music program material.
Maximum Input Voltage 25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL 110 dB ave. Continuous Pink Noise (116 dB peak) *Calculated from sensitivity and power handling, exclusive of power compression.
Sensitivity 90 dB, 1W/1m (ave. 100 Hz 10 kHz) *Half-space (on-wall) averaged 100 Hz 10 kHz, 2.83V.
Coverage Angle 100 x 100 *Coverage angle (-6 dB) average between 1 kHz and 12 kHz.
Directivity Factor (Q) 6.04 (averaged 1kHz 16kHz)
Directivity Index (DI) 7.6dB (averaged 1kHz 16kHz)
Nominal Impedance 8 ohms
Crossover Type 2nd order low-pass, 3rd order high-pass
Recommended Protective High-Pass 60 Hz high-pass (24 dB/oct) *For protection against driving below resonant frequency and to keep transformer out of saturation.
Low Frequency Driver 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
High Frequency Driver 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton voice coil former.
Enclosure Material High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax multi-layer foam and tight-weave mesh vapor barrier backing.
Installation InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Environmental IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-25WMG-1 WeatherMax grille for breaking up driving rain and for especially difficult environments.
Termination Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Agency Rating ROHS-compliant
Colors Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D) 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket. *In vertical orientation
Net Weight 3.0 kg (6.7 lbs)
Shipping Weight 7.3 kg (16.0 lbs) for the pair-pack (for 2 speakers)
Included Accessories InvisiBall wall-mounting system, 6 mm x 100 mm hex key
Optional Accessories MTC-25UB-1 Yolk-type U-bracket (&-WH)
