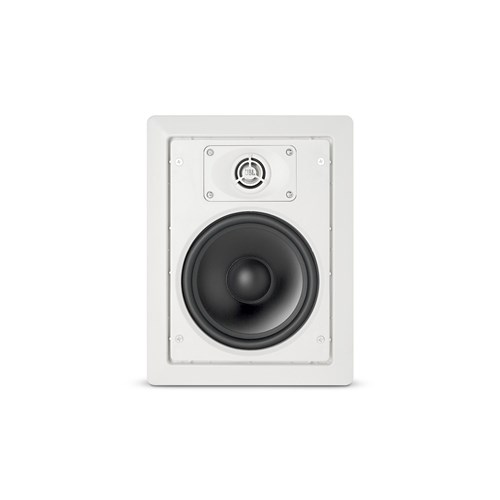

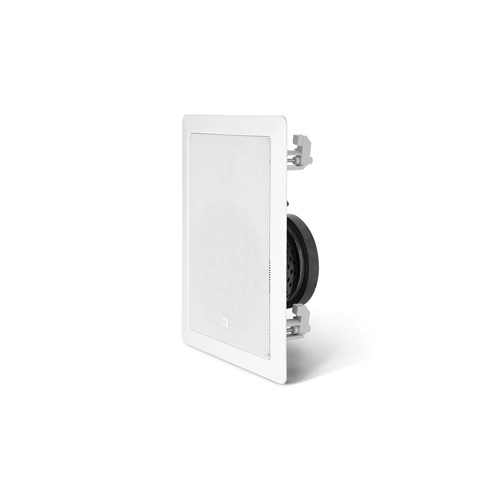

JBL Control 126 WT - Premium In-Wall Loudspeaker 6.5 Inch Woofer with Transformer - Priced as Each Sold as Pair

Product Code: JBL CTRL126WT

Key Features
Control 126W With Transformer for Use on a 70.7V or 100V Distributed Line. Selectable Taps at 30W, 15W, and 7.5W (Plus 3.7W at 70V Only). (Priced as Each, Sold in Pairs).
$746.10 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Premium In-Wall Loudspeaker

The Control 126WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

Features

  • Components:
    165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
    25 mm (1 in) pure-titanium dome low diffraction swivel aimable titanium tweeter.
  • High-slope crossover for natural midrange sound.
  • Extended bandwidth performance of 38 Hz – 20 kHz.
  • 50W continuous (100W program, 200W peak) power handling (126W).

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range 38 Hz - 20 kHz (-10 dB)
Power Capacity 200 W Peak 100 W Continuous Program Power50 W Continuous Pink Noise
Transformer Taps 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps
Nominal Impedance 8 ohms
Low Frequency 165 mm (6.5 in) polymer-coated aluminum cone.
High-Frequency 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
Terminations Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
Crossover Network 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter.
Optimum Air Cavity Behind Speaker 20 to 40 liters (0.7 to 1.4 cu ft)
Outside Dimensions (H x W x D) 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker.
Maximum Wall Thickness 2 mm (1.25 in)
Cutout Size (H x W) 246 x 181 mm (9.7 x 7.2 in),
Net Weight (ea) 2.7 kg (5.9 lb)
Shipping Weight (ea) 6.2 kg (13.5 lb)
Included Accessories Cutout template & paint shield
Optional Accessories WB6 Rough-In Frame for new construction installation to wallstuds
