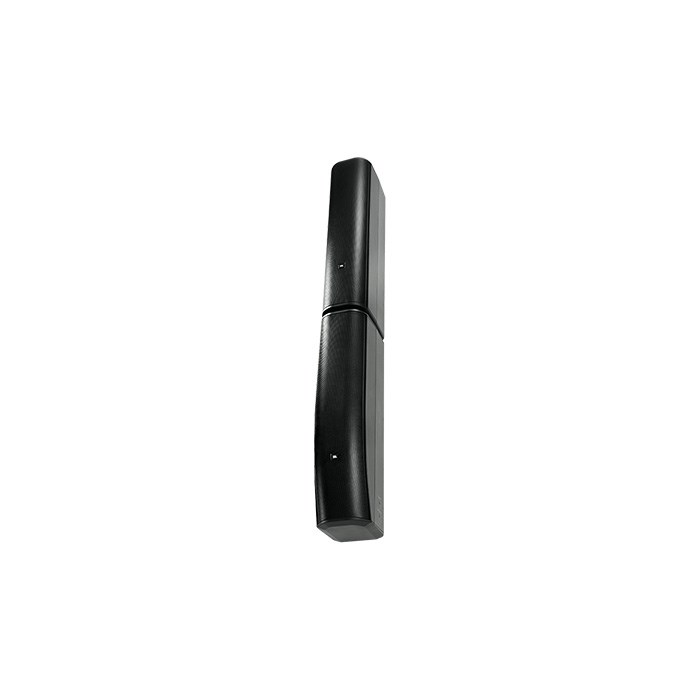

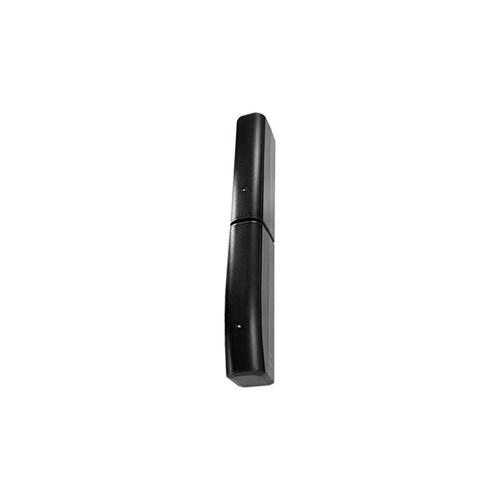

JBL CBT70JE-1 - Purpose-Designed Extension for CBT 70J-1 Line Array Column Speaker With stronger grille Black

Product Code: JBL CBT70JE-1-BK

Key Features
70 cm Extension for CBT 70J-1 Line Array, 4 x 5 Drivers. 500W continuous pink noise, 8 ohms, linking bracket included, 70 cm tall for 140 cm tall CBT 70J-1/JE-1 array, connect 70J-1 and 70JE-1 in parallel. (priced and sold individually). Combined with CBT 70J-1, system response is 45 Hz 20 kHz with well controlled pattern to 250 Hz.
$2,585.72 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Purpose-Designed Extension for CBT 70J-1 Line Array Column Speaker. With stronger grille.

When connected to a CBT 70J-1 line array column speaker, the CBT 70JE-1 Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.

Features

  • Components: Four 125 mm (5 in) high-power LF drivers (70JE-1)
  • 500 Watt power handling (70JE-1)
  • Built-in purpose-designed crossover network, for combining with CBT 70J-1 (70JE-1)
  • Coupler plate included (70JE-1)
  • Extended pattern control (to 400 Hz for 20 control, to 200 Hz for substantial off-axis cancellation)
  • Extended bass response to 45 Hz.
  • Components: Sixteen 25 mm (1 in) soft dome tweeters and eight 125 mm (5 in) high-power LF drivers.
  • Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage switchable between 45 for medium-throw coverage and 25 for
    long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Coupler plate and wall swivel (pan)/tilt bracket included (rear insert-point pattern fits standard
    third-party brackets)
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

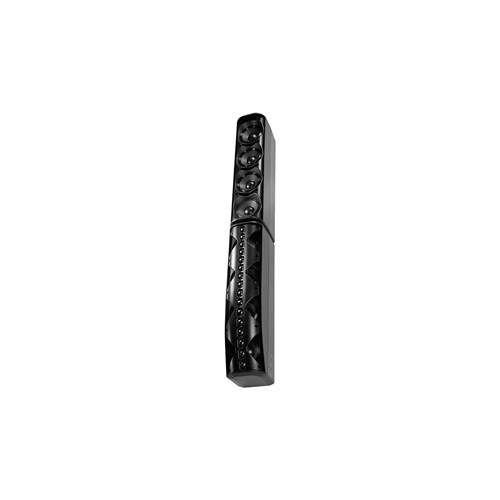

    Components Eight (8) 130 mm (5 in) LF drivers Sixteen (16) 25 mm (1 in) HF drivers
    Frequency Range (-10 dB) 45 Hz 20 kHz
    Coverage Vertical (selectable via switch) Narrow Mode: 25 (2 kHz 16 kHz) ( 10) Broad Mode: 45 (350 Hz 16 kHz) ( 10) Horizontal 150 (500 Hz 18 kHz, 20)
    Sensitivity (@1m) Narrow: (speech mode) 98 dB @ 2.83V, 95 dB @ 2.0V (150 Hz 8 kHz) (music mode) 94 dB @ 2.83V, 91 dB @ 2.0V (80 Hz 18 kHz) Broad: (speech mode) 97 dB @ 2.83V, 94 dB @ 2.0V (100 8 kHz) (music mode) 93 dB @ 2.83V, 90 dB @ 2.0V (70 Hz 18 kHz)
    Nominal Impedance 4 ohms
    Power Capacity 1000 W (4000 W peak), 2 hrs 700 W (2800 W peak), 100 hrs
    Max SPL Narrow: (speech mode) 125 dB cont ave (131 peak) (music mode) 121 dB cont ave (127 peak) Broad: (speech mode) 124 dB cont ave (130 peak) (music mode) 120 dB cont ave (126 peak)
    Low Frequency Drivers 8 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV and salt resistance, shielded.
    High Frequency Drivers 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
    Enclosure Fiberglass-reinforced ABS cabinet, painted aluminum grille.
    Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
    Colors Black or white (-WH)
    Insert Points 20 insert points total, 8 utilized for coupler plate, M6 (16 mm deep) on back panel
    Mounting Coupler plate joins the CBT70J-1 and 70JE-1 end-to-end. Threaded points on coupler plate accepts OmniMount 60.0 Series and 120.0 Series compatible wall-mount brackets, as well as points for the swivel (pan)/tilt wall bracket that is included with CBT 70J-1. Twelve (12) additional M6 mounting points accept forged shoulder steel eyebolts or swivel clips for suspension.
    Dimensions (H x W x D) 1388 x 170 x 237 mm(54.8 x 6.7 x 9.3 in)
    Net Weight 20.4 kg (45 lb)
    Included Accessories Coupler plate (included with 70JE-1) Swivel (pan) / tilt wall bracket (included with 70J-1)
    Optional Accessories MTC-PC2 terminal panel cover MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm heavy duty speaker stand (must be heavy-duty stand for stability with this array) MTC-CBT-FM2 flush-mount low-profile wall-mount bracket
    Components - 70JE-1 Four (4) 130 mm (5 in) LF drivers
    Frequency Range (-10 dB) - 70JE-1 45 Hz 700 Hz
    Sensitivity (2.83V @ 1m) - 70JE-1 90 dB full space, 96 dB half-space (65 Hz - 300 Hz)
    Nominal Impedance - 70JE-1 8 ohms
    Power Capacity - 70JE-1 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs
    Max SPL - 70JE-1 117 dB
    Net Weight - 70JE-1 8.2 kg (18 lb)
