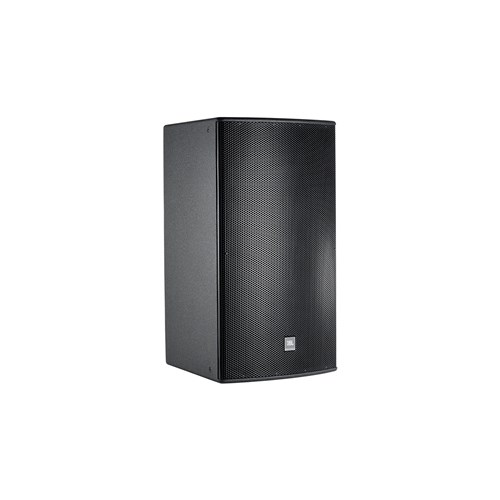

JBL AM7315/95 - High Power 3-Way Loudspeaker with Extreme Weather Protection Treatment

Product Code: JBL AM7315-95-WRX

Key Features
With Extreme Weather Protection Treatment. Refer to WEATHER RESISTANT Configurations for AE, PD & VLA Series document for details regarding WRC/WRX models. WRC & WRX enclosures are larger than the standard enclosure. Visit www.jblpro.com to download AE Series 2D WRC & WRX drawings. MountU brackets do not fit WRC & WRX enclosures. Standard color is GRAY. Available in Black (-BK) & White (-WH). 8-10 weeks for 1-10 pcs if larger 10-or greater has to be reviewed.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power 3-Way Loudspeaker

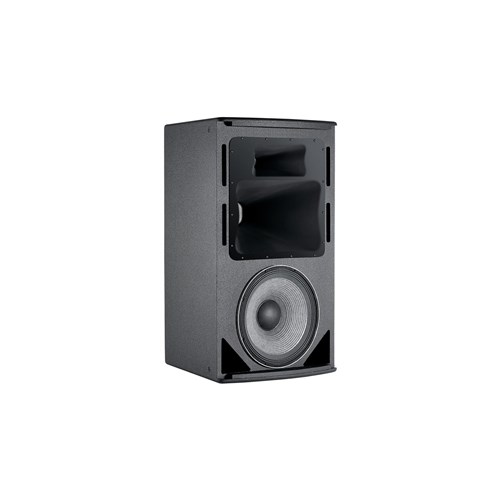

AM7315 speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Features

  • 2265H Differential Drive® Low-Frequency Driver
  • CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
  • 2432H High-Frequency Compression Driver
  • PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
  • Bi-Amp/Tri-Amp Switchable.

    • Applications

  • Performing arts facilities
  • Theatrical sound design
  • Auditoriums
  • Houses of worship
  • Live clubs
  • Dance-clubs/discotheques
  • Sports facilities
  • Themed entertainment venues
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
    Frequency Range (-10 dB) 38 Hz 20 kHz
    Frequency Response ( 3 dB) 45 Hz 18 kHz
    Coverage Pattern /64: 60 x 40, rotatable waveguide/95: 90 x 50, rotatable waveguide
    Directivity Index (DI) 13 dB
    Crossover Modes Tri-amp/Bi-amp switchable
    Crossover Frequencies 300 Hz and 2.3 kHz
    Transducer Power Rating (AES) LF: 1000 W (4000 W peak), 2 hrs750 W (3000 W peak), 100 hrsMF: 350 W (1400 W peak), 2 hrsHF: 100 W (400 W peak), 2 hrs
    Long-Term System Power Rating (IEC) LF: 600 W (2400 W peak), 100 hrsMF/HF: 200 W (800 W peak), 100 hrs
    Maximum SPL LF: 127 dB-SPL cont avg (133 dB peak)Tri-amp mode:MF: 133 dB-SPL cont avg (139 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Bi-amp mode:MF/HF: 133 dB-SPL cont avg (139 dB peak)
    System Sensitivity of Passive Sections (1W @ 1m) MF/HF Section in Bi-amp mode: 108 dB SPL
    Nominal Impedance System Sensitivity 8 ohms
    Low Frequency Driver 1 x JBL 2265H 380 mm (15 in ) Differential Drive driver with 75 mm (3 in)
    Sensitivity (1W @ 1m) (Low Frequency) 97 dB SPL
    Midrange Driver JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive dual voice coil internal driver
    Sensitivity (1W @ 1m) (Midrange) 108 dB SPL
    High Frequency Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
    Sensitivity (1W @ 1m)(High Frequency) 115 dB SPL
    Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
    Suspension Attachment 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
    Finish Black DuraFlex finish. White available upon request.
    Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
    Input Connector NL8 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
    Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
    Dimensions (H x W x D in vertical cabinet orientation) 967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in)
    Net Weight 45.8 kg (101 lb)
    Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
