JBL AM7215-95-WH High Power 2-Way Loudspeaker with 1 x 15 Inch LF and Rotatable Horn White

Product Code: JBL AM7215-95-WH

Key Features
JBL AM7215-95-WH Two-Way Full Range Loudspeaker (White), High Power 15" 2-Way Full-Range Loudspeaker System With Jbl Differential Drive 75Mm (3-In) Dual Voice Coil And Dual Magnetic Gap 2265H Low Frequency Driver And 2432H High-Frequency 38Mm (1.5 In) Exit, 75Mm (3 In) Voice-Coil Compression Driver. 90Deg X 50Deg Rotatable Progressive Transition Waveguide, Bi-Amp/Passive Switchable. Available In Black Or White (-Wh). Suspension Eyebolts Not Included. Optional U-Bracket Model Mountu-1. White Finish.
$9,183.37 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn

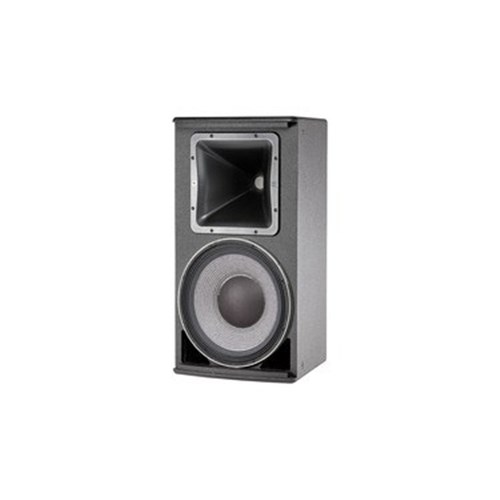

The AM7215 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability

Features

  • 60° x 60° Coverage
  • 2265H Differential Drive® Low- Frequency Driver
  • 2432H High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Available in Black, White and WRC/WRX finishes

Applications

  • Performing Arts Facilities
  • Theatrical Sound Design
  • Auditoriums
  • Worship Facilities
  • Live Clubs
  • Dance Clubs
  • Sports Facilities
  • Themed Entertainment Venues
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10dB) 34 Hz - 20 kHz
Frequency Response (±3 dB) 40 Hz - 18 kHz
Coverage /64: 60° x 40°/66: 60° x 60° /95: 90° x 50° /26: 120° x 60°
LF Driver 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
HF Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
System Type 15" Two - Way, High Power, Full - Range
Dimensions (H x W x D) 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
Net Weight (each) 27.2 kg (60 lb)
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.8 kHz
Transducer Power Rating (AES) LF: 1000 W (4000 W peak), 2 hr750 W (3000 W peak), 100 hrsHF: 100 W (400 W peak), 2 hrs
System Power Rating Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (1m) Bi-amp mode:LF: 128 dB-SPL cont avg (134 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Passive mode:124 dB-SPL cont avg (130 dB peak)
System Sensitivity (1w @ 1m) Passive mode: 96 dB SPL
Nominal Impedance 8 ohms
System Power Rating Passive mode: 600 W (2400 W peak), 100 hrs (IEC rated)
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Environmental Mil-Std 810; IP-x3 per IEC529.
