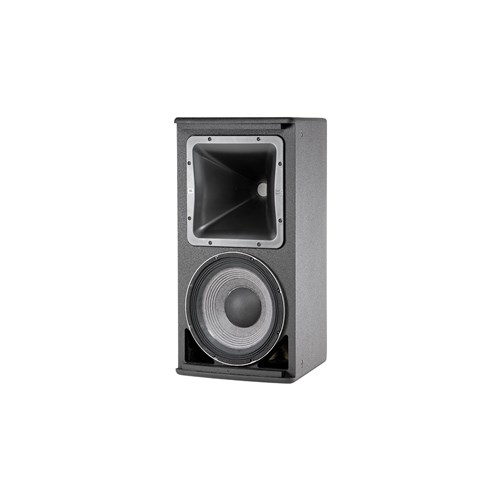

JBL AM7212/64 - High Power 2-Way Loudspeaker with 1 x 12 Inch LF and Rotatable Horn Black

Product Code: JBL AM7212-64-BK

Key Features
High Power 12 2-Way Full-Range Loudspeaker System with JBL Differential Drive® 75mm (3-in) dual voice coil and dual magnetic gap 2262H low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75mm (3 in) voice-coil compression driver. 60° x 40° rotatable Progressive Transition waveguide, Bi-Amp/Passive Switchable. Available in Black or White (-WH). Priced as each. Suspension eyebolts not included. Optional U-bracket model MountU-3.
$8,747.44 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power 2-Way Loudspeaker with 1 x 12" LF & Rotatable Horn

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features

  • 2262H Differential Drive® Low- Frequency Driver
  • 2432H High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Available in Black, White and WRC/WRX finishes
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range ( 10 dB) 36 Hz - 20 kHz
Frequency Response ( 3 dB) 42 Hz - 18 kHz
Coverage /64: 60 x 40/66: 60 x 60/95: 90 x 50/00: 100 x 100/26: 120 x 60
LF Driver 2262H
HF Driver 2432H
System Type 12" Two - Way, High Power, Full - Range
Dimensions (H x W x D) 711 x 369 x 458 mm (28 x 14.5 x 18 in)
Weight 23.1 kg (51 lb)
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.8 kHz
Transducer Power Rating (AES) LF: 1000 W (4000 W peak), 2 hr700 W (2800 W peak), 100 hrsHF: 100 W (400 W peak), 2 hrs
Long-Term System Power Rating (IEC) Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (dB-SPL, 1W @ 1m) Bi-amp mode:LF: 126 dB-SPL cont avg (132 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Passive mode:123 dB-SPL cont avg (129 dB peak)
System Sensitivity (1w @ 1m) Passive mode: 95 dB SPL
Nominal Impedance 8 ohms
