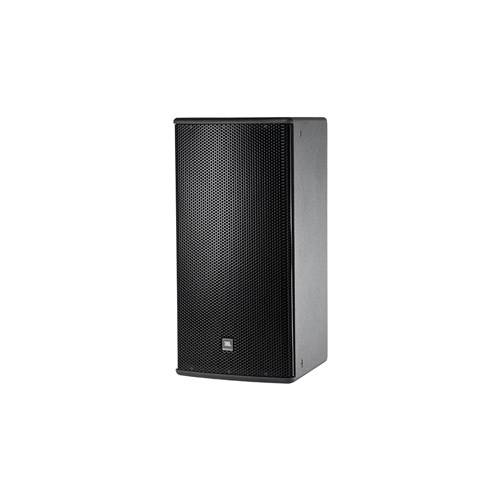

JBL AM7212/00 - High Power 2-Way Loudspeaker with 1 x 12 Inch LF and Rotatable Horn with Extreme Weather Protection Treatment

Product Code: JBL AM7212-00-WRX

Key Features
High Power 12 2-Way Full-Range Loudspeaker System with JBL Differential Drive® 75mm (3-in) dual voice coil and dual magnetic gap 2262H low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75mm (3 in) voice-coil compression driver. 100° x 100° rotatable Progressive Transition waveguide, Bi-Amp/Passive Switchable. With Extreme Weather Protection Treatment. WRC & WRX enclosures are larger than the standard enclosure. Visit www.jblpro.com to download AE Series 2D WRC & WRX drawings. MountU brackets do not fit WRC & WRX enclosures. Standard color is GRAY. Available in Black (-BK) & White (-WH). 8-10 weeks for 1-10 pcs if larger 10-or greater has to be reviewed.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power 2-Way Loudspeaker with 1 x 12" LF & Rotatable Horn

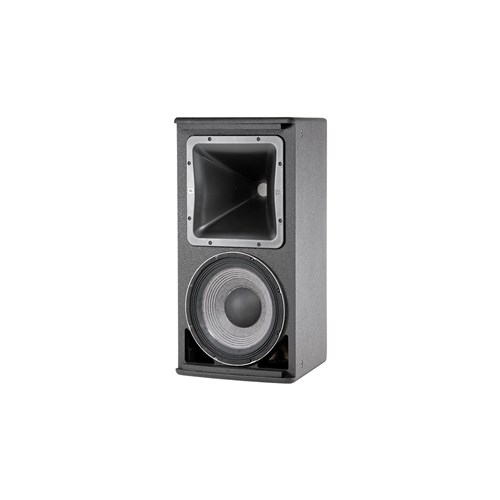

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features

  • 2262H Differential Drive® Low- Frequency Driver
  • 2432H High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Available in Black, White and WRC/WRX finishes
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
    Frequency Range ( 10 dB) 36 Hz - 20 kHz
    Frequency Response ( 3 dB) 42 Hz - 18 kHz
    Coverage /64: 60 x 40/66: 60 x 60/95: 90 x 50/00: 100 x 100/26: 120 x 60
    LF Driver 2262H
    HF Driver 2432H
    System Type 12" Two - Way, High Power, Full - Range
    Dimensions (H x W x D) 711 x 369 x 458 mm (28 x 14.5 x 18 in)
    Weight 23.1 kg (51 lb)
    Crossover Modes Bi-amp/Passive switchable
    Passive Crossover Frequency 1.8 kHz
    Transducer Power Rating (AES) LF: 1000 W (4000 W peak), 2 hr700 W (2800 W peak), 100 hrsHF: 100 W (400 W peak), 2 hrs
    Long-Term System Power Rating (IEC) Passive mode: 600 W (2400 W peak), 100 hrs
    Maximum SPL (dB-SPL, 1W @ 1m) Bi-amp mode:LF: 126 dB-SPL cont avg (132 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Passive mode:123 dB-SPL cont avg (129 dB peak)
    System Sensitivity (1w @ 1m) Passive mode: 95 dB SPL
    Nominal Impedance 8 ohms
