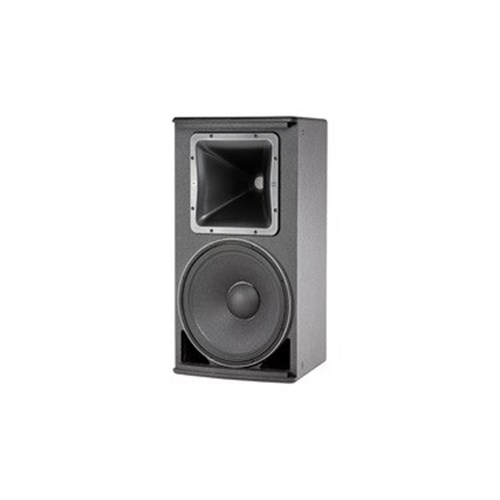

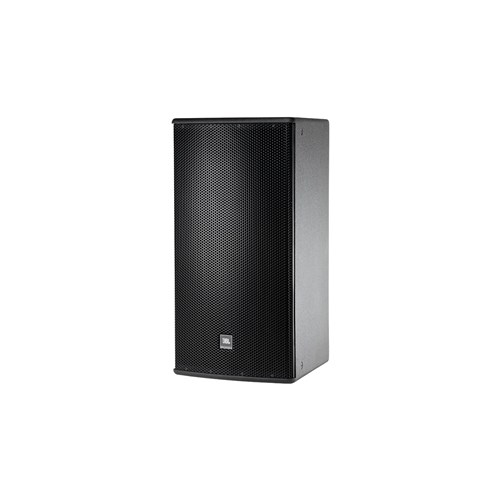

JBL AM5215-95-WH 2-Way Loudspeaker System with 1 x 15 Inch LF White

Product Code: JBL AM5215-95-WH

Key Features
JBL AM5215-95-WH Two-Way Full Range Loudspeaker (White), Medium Power 15" 2-Way Full-Range Loudspeaker System With Jbl Differential Drive 50.8 Mm (2-In) Dual Voice Coil And Dual Magnetic Gap 265H Low Frequency Driver And 2408H-1 High-Frequency 38Mm (1.5 In) Exit, 38Mm (1.5 In) Voice-Coil Compression Driver. 90Deg X 50Deg Rotatable Progressive Transition Waveguide, Bi-Amp/Passive Switchable. Available In Black Or White (-Wh). Suspension Eyebolts Not Included. Optional U-Bracket Model Mountu-1. White Finish.
$6,138.94 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

2-Way Loudspeaker System with 1 x 15" LF

The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features

  • 90° x 50° Coverage
  • 265H-1 Differential Drive® Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Available in Black, White and WRC/WRX weather resistant finishes

Applications

  • Performing Arts Facilities
  • Theatrical Sound Design
  • Auditoriums
  • Worship Facilities
  • Live Clubs
  • Dance Clubs
  • Sports Facilities
  • Themed Entertainment Venues
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10dB) 35 Hz - 20 kHz
Frequency Response (±3 dB) 41 Hz – 18 kHz
Coverage Pattern /64: 60° x 40°/66: 60° x 60°/95: 90° x 50° /26: 120° x 60°
Directivity Factor (Q) 14.5
Directivity Index (DI) 11.6 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 2 kHz
Transducer Power Rating (AES) LF: 500 W (2000 W peak), 2 hrs350 W (1400 W peak), 100 hrsHF: 40 W (160 W peak), 2 hrs
System Power Rating Passive mode: 350 W (1400 W peak), 100 hrs
Maximum SPL (1m) Bi-amp mode:LF: 125 dB-SPL cont avgHF: 131 dB-SPL cont avg.
System Sensitivity (1w @ 1m) Passive mode: 98 dB SPL
LF Driver 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m, within operational band) 99 dB SPL
HF Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Sensitivity 115 dB SPL
Waveguide PT-H66HF-1
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish Black DuraFlex™ finish. White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation) 783 x 422 x 504 mm(30.8 x 16.6 x 19.85 in)
Net Weight (each) 25.0 kg (55 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
System Power Rating Passive mode: 350 W (1400 W peak), 100 hrs (IEC rated)
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance

8 ohms
