JBL AM5212/95 - 2-Way Loudspeaker System with 1 x 12 Inch LF Black

Product Code: JBL AM5212-95-BK

Key Features
Medium Power 12 2-Way Full-Range Loudspeaker System with JBL Differential Drive® 50.8 mm (2-in) dual voice coil and dual magnetic gap 262H low frequency driver and 2408H-1 high-frequency 38mm (1.5 in) exit, 38mm (1.5 in) voice-coil compression driver. 90° x 50° rotatable Progressive Transition waveguide, Bi-Amp/Passive Switchable. Available in Black or White (-WH). Priced as each. Suspension eyebolts not included. Optional U-bracket model MountU-3.
$5,817.33 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

2-Way Loudspeaker System with 1 x 12" LF

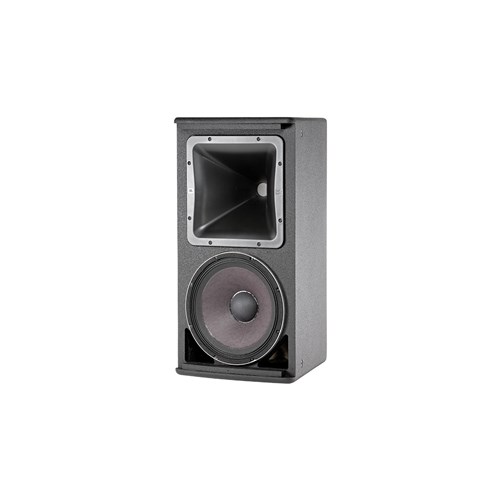

The AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features

  • 60° x 40° Coverage
  • 262H-1 Differential Drive® Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Available in Black, White and WRC/WRX weather resistant finishes

Applications

  • Performing Arts Facilities
  • Theatrical Sound Design
  • Auditoriums
  • Worship Facilities
  • Live Clubs
  • Dance Clubs
  • Sports Facilities
  • Themed Entertainment Venues
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10 dB) 37 Hz 20 kHz
Frequency Response ( 3 dB) 43 Hz 18 kHz
Coverage Pattern /64: 60 x 40/66: 60 x 60/95: 90 x 50/00: 100 x 100/26: 120 x 60
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.5 kHz
Transducer Power Rating (AES) LF: 400 W (1600 W peak), 2 hrs300 W (1200 W peak), 100 hrsHF: 40 W (160 W peak), 2 hrs
Long-Term System Power Rating (IEC) Passive mode: 300 W (1200 W peak), 100 hrs
Maximum SPL Bi-amp mode:LF: 122 dBHF: 131 dB
System Sensitivity (1w @ 1m) Passive mode: 96 dB SPL
Low Frequency Driver 1 x JBL 262H-1 300 mm (12 in) driver with 50.8 mm (2 in) dual voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m, within operational band) 97 dB SPL
High Frequency Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Sensitivity (1W @ 1m) 113 dB SPL
Waveguide PT-H126HF-1
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish Black DuraFlex finish. White available upon request.

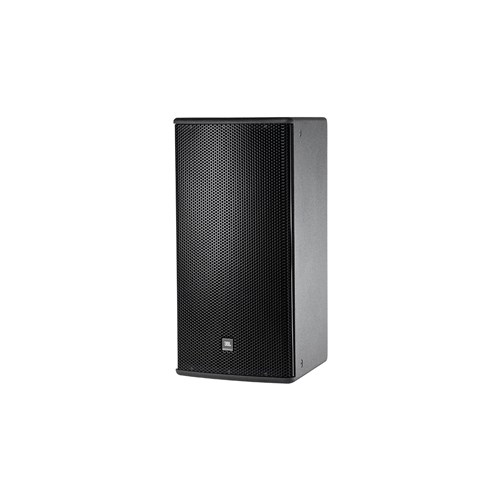

Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

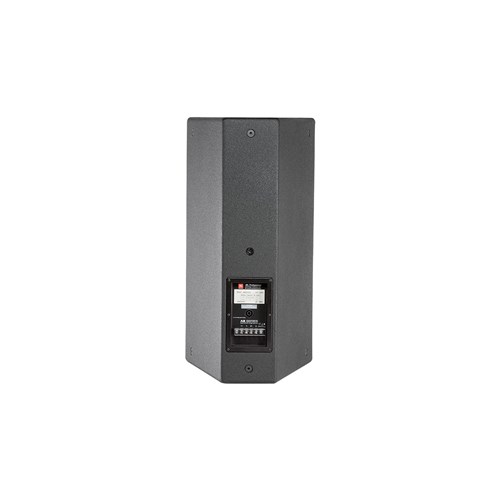

Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifications Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D invertical cabinet orientation) 713 x 371 x 458 mm(28.06 x 14.6 x 18.1 in)
Net Weight 20.2 kg (45 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3
