JBL AC28-26-WRC - Compact 2-way Loudspeaker with 2 x 8 Inch LF With Weather Protection Treatment

Product Code: JBL AC28-26-WRC

Key Features

Compact 2-Way Loudspeaker with 2 x 8" LF. 120degrees x 60degrees Coverage, Passive. Compact PT Progressive Transition Waveguide, Rotatable. With Weather Protection Treatment. WRC & WRX enclosures are larger than the standard enclosure. MountU brackets do not fit WRC & WRX enclosures. Standard color is GRAY. Custom product manufactured to order.

Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

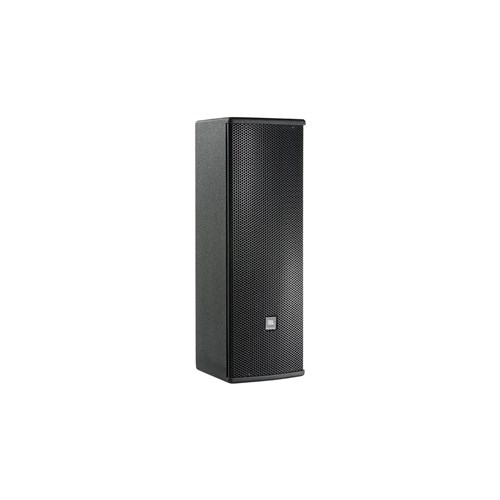

JBL AC28-26-WRC - Compact 2-way Loudspeaker with 2 x 8” LF (With Weather Protection Treatment)

High output, 2-way loudspeaker systems combining flexibility with high fidelity

Features:

  • 1” Exit Compression Driver with PT™ Waveguide
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 750W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10dB) 53 Hz - 20 kHz
Frequency Response (±3 dB) 65 Hz – 20 kHz
System Power Rating 700 W (AES rated)
375 W / 750 W / 1500 W (Continuous/Program/Peak) (IEC rated)
Impedance 8 ohms
Coverage Pattern /26: 120° x 60°/95: 90° x 50°
Dimensions (H x W x D) 679.5 x 237.5 x 254.0 mm (26.8 x 9.4 x 10.0 in)
Net Weight (each) 18.6 kg (40.9 lb)
Crossover Modes Passive
Maximum SPL (1m) 120 dB
System Sensitivity (1w @ 1m) 94 dB SPL
LF Driver 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance 8 Ohms
HF Driver 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M8 rear for MultiMount® MM-120-BT.
Environmental IP55 per IEC 529 Rating. Use in Covered/Protected Outdoor Areas
