Name: JBL AC25-WH Ultra Compact 2-way Loudspeaker with 2 x 5.25 Inch LF White
Price: 2364.87 AUD

(EA)

Qty	Each (inc GST)	Each

High output, 2-way loudspeaker systems combining flexibility with high fidelity

90° x 90° waveguide with 25 mm (1 in) dome tweeter
135 mm (5.25 in) LF transducer
Ultra Compact 2-way Loudspeaker with 2 x 5.25” LF
450W Program
Dual Neutrik NL4 connectors plus screw terminal
FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
Attachment points for optional U-bracket

Frequency Range (-10dB)	80 Hz -20 kHz
Frequency Response (±3 dB)	90 Hz -18 kHz
System Power Rating	300 W (AES rated) 225 W / 450 W / 900 W (Continuous/Program/Peak) (IEC rated)
Impedance	16 ohms
Coverage Pattern	90° x 90°
Dimensions (H x W x D)	377.8 x 150.3 x 177.8mm (14.9 x 5.9 x 7.0in)
Net Weight (each)	7.5 kg (16.5 lb)
Crossover Modes	Passive
Maximum SPL (1m)	115 dB
System Sensitivity (1w @ 1m)	91 dB SPL

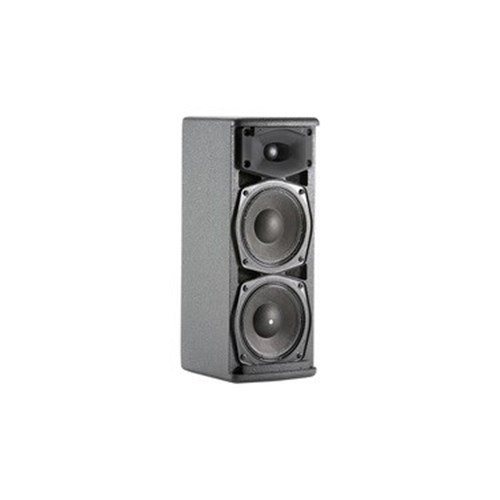

LF Driver	2 x JBL 225H, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil
Nominal LF Driver Impedance	16 Ohms
HF Driver	1 x JBL 201J, 25mm (1 in) voice coil dome tweeter
Enclosure	12 mm exterior grade multi-ply hardwood plywood
Suspension Attachment	4 x M8 points; 1 top, 1 bottom, 2 rear. 4 x M6 rear for MultiMount® MM-022-BT, MM-024-BT, or MM-020-CM.
Environmental	Mil-Std 810; IPx3 per IEC529.

JBL AC25-WH Ultra Compact 2-way Loudspeaker with 2 x 5.25 Inch LF White
