PTZOptics Move 4K Auto-Tracking PTZ Camera with 20x Optical Zoom and 60.7 Deg HFOV White

Product Code: HUD-PT20X-4K-WH-G3

Key Features
  • Built-In Auto-Tracking
  • Advanced White Balance Modes
  • Wide Dynamic Range
  • Full Frame Rates: 2160p-60/50/30/25, 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
  • 3D Noise Reduction
  • SRT Support
  • Up to 4K Resolution @ 60fps
  • Blackmagic Switcher Integration
  • Broadcast Frame Rates: 2160p-59.94/29.97, 1080p59.94/29.97, 1080i59.94, 720p59.94
  • 20x Optical Zoom
  • Colour: White
$5,255.07 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

PTZOptics Move 4K Auto-Tracking PTZ Camera with 20x Optical Zoom and 60.7 Deg HFOV White

The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI®|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Mount your PTZ Move camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.

Control your production from behind the scenes – or right in front of them. In addition to the Move 4K’s auto-tracking features, users will also have access to our latest Web UI — updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Users can also take control of their PTZ cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Image Sensor & Lens:

Video Sensor 12x: 1/2.5 inch, UHD CMOS sensor, effective pixels: 8.51M
20x: 1/1.8 inch, CMOS, Effective pixels: 8.42M
Resolution and Frame Rate HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
Digital Zoom Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)
Field of View 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
Min. Lux 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s

Pan/Tilt Movement:

Pan Speed 1.7° ~ 100°/s
Tilt Movement +90° to -30
Tilt Speed 1.7° ~ 69.9°
Presets 255 Presets
Video Tracking Supported
Image Flip, Mirror and Freeze Supported

Power Options:

Power Supply DC 12V / PoE+ (802.3at)
Input Power 18W (Max)

Physical Specifications:

Material Aluminum, Plastic
Color White and Gray
Dimensions (W x D x H) 5.57 W x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm
Weight 3.25 lbs (1.47 kg)
Working Environment Indoor
Operating Temperature 14°F ~ 104°F (-10°C to 40°C)
Storage Temperature -40°F ~ 140°F (-40°C to 60°C)

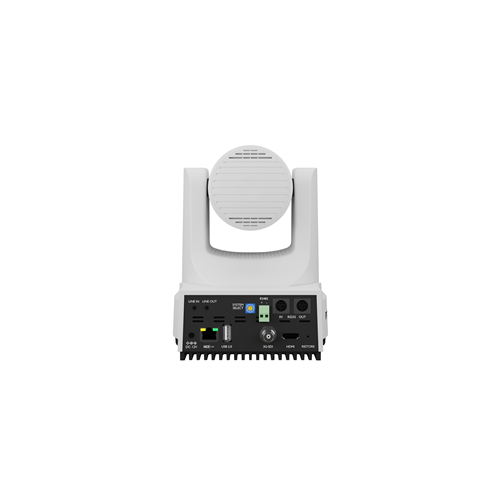

Rear Board Connectors:

HD Video Output 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
1x HDMI: version 2.0
1x USB 2.0: type A
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
Audio Interface 1x 3.5mm Line level Input
Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
Network Interface RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
Power Jack JEITA type (DC IN 12V)
