Roadworx RW600124 DMX / RS485 Control Cable 1 Pair 24AWG Black 100m Reels

Product Code: RW600124BK100

Key Features

DMX / RS485 Control Cable 1 Pair 24AWG Black 100M Reels

$2.67 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW600124 DMX / RS485 Control Cable 1 Pair 24AWG Black 100M Reels

Description

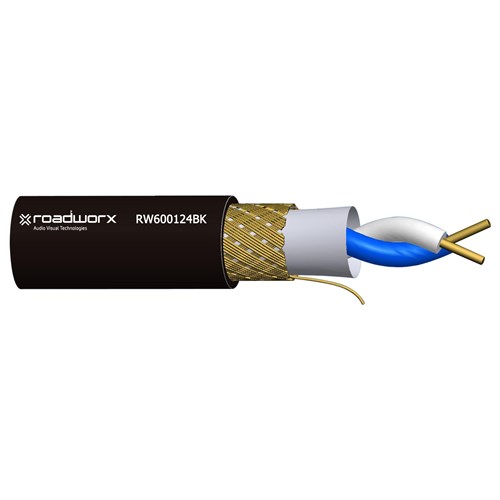

7/0.2TC x 1P + PE Insulation + Al. Foil + Drain Wire + 80/0.12TC Braid + PVC Sheath Φ4.5mm

Applicable Standards

EIA RS-485

Suitable Applications

Data transmission, Fixed or portable installations, EIA RS-485.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 7/0.20+/-0.006TC
Insulation Pair: 1
Material: PE
Colour: White/Blue Stripe, Blue/White Stripe
Min. Thickness 0.20mm / Nom. Thickness ≥0.25mm / Nom. O.D 1.2+/-0.1mm
Screen Al. Foil 100% Coverage
Drain Wire

7/0.20+/-0.006TC
Braiding

16/5/0.12+/-0.006mmTC / Nom. O.D ~2.98mm Coverage 90%
Sheath Material: PVC / Colour: Black
Min. Thickness 0.56mm / Nom. Thickness ≥0.70mm / Nom. Sheath O.D 4.5+/-0.2mm
Spark Voltage : 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 93.25 ohm/km 20°C
Characteristic Impedance 120 ohm
Nom. Capacitance Core to Core 12.8 pF/ft
Nom. Capacitance Core to Shield 23 pF/ft
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min
Suggest Voltage ELV

Physical Properties

Insulation Elongation ≥300%
Insulation Tensile Strength ≥13.6 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 75N
Min. Bend Radius (install) 45mm
Approximate Mass 3.21kg/100m
Sheath Printing ROADWORX RW600124 DMX / RS485 Control Cable, 1 Pair, 24AWG (meter marking)
