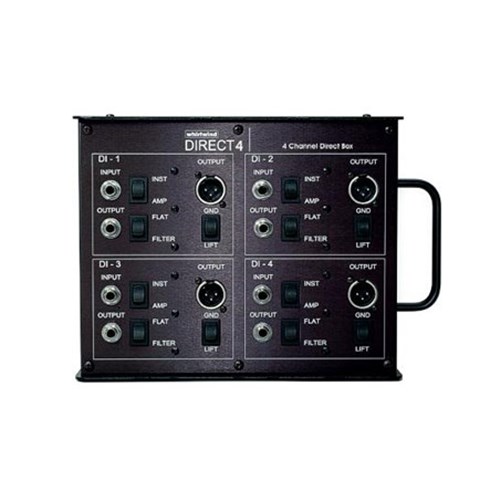

Whirlwind DIRECT4 - TRHLM Transformers 4-Channel Stagebox

Product Code: WH DIRECT4

Key Features

The DIRECT4 combines features found on four of our DIRECTOR ® direct boxes in one unit.
Perfect for converting unbalanced signals from multiple instruments, keys, acoustic guitar preamps, CD and tape players, computer sound cards, etc.

  • Type: Passive
$822.94 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Each section features:

  • 1/4" parallel wired in/out jacks
  • Ground Lift switch to help eliminate hum and buzz
  • Filter switch to help reduce amplifier noise and hiss
  • -20dB pad switch for connection to "hot" input signals
  • Uses Whirlwind's TRHL-M transformer with metal shield

The input and output grounds of each section are isolated from each other. This allows the DIRECT4 to be used as if it were four completely separate DIs without fear of creating ground loop interaction.

Model # - DIRECT4
Impedance Ratio (input to output): 133:1
Frequency Response: 20Hz-20kHz ±1dB
Level Change (input to output): -20dB (pad out), -40dB (pad in)

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
