Name: Kings Electronics DIN 75 Ohm 1.0/2.3 Plug for Belden 1505A Cable
Price: 26.04 AUD

(EA)

Qty	Each (inc GST)	Each

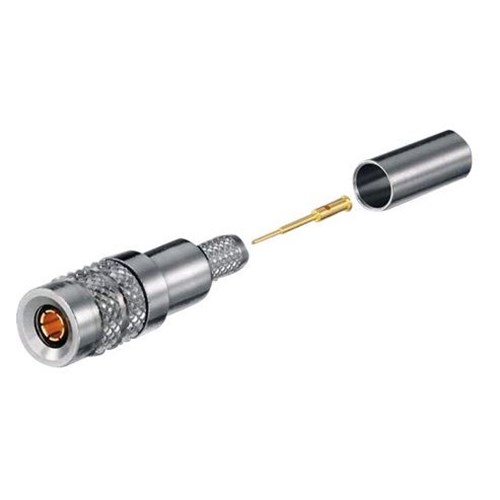

Kings Electronics DIN 75 Ohm 1.0/2.3 Plug for Belden 1505A Cable

DESIGNED FOR USE WITH BELDEN 1505A CABLE OR EQUIVALENT
MATERIAL SPECIFICATIONS:
BODY, CENTER CONTACT & FERRULE: BRASS PER ASTM B16.
OUTER CONTACT : COPPER ALLOY.
INSULATOR: TEFLON PER ASTM D1710.
FINISH SPECIFICATIONS:
BODY & FERRULE: .000100 MIN NICKEL PER AMS-QQ-N-290 OVER COPPER FLASH PER ASTM B734 (RoHS).
CONTACT: .000030 MIN GOLD PER ASTM B488 OVER .000080 MIN NICKEL PER AMS-QQ-N-290 (RoHS).
ELECTRICAL SPECIFICATIONS:
IMPEDANCE: 75 OHMS
FREQUENCY RANGE: DC-12.0 GHz
RETURN LOSS: -30dB MAX TO 3.0 GHz; -25dB MAX TO 6.0 GHz; -20dB MAX TO 12.0 GHz
COMPLIANT TO 3G/6G/12G-SDI SMPTE REQUIREMENTS
CONTACT AND FERRULE SHIPPED LOOSE.
INTERFACE PER CECC 22230.
CRIMP FERRULE (.255 HEX) AND CONTACT (.042 HEX) USE KINGS KTH-1000 AND KTH-2261
ASSEMBLE TO CABLE PER CAP-E03
