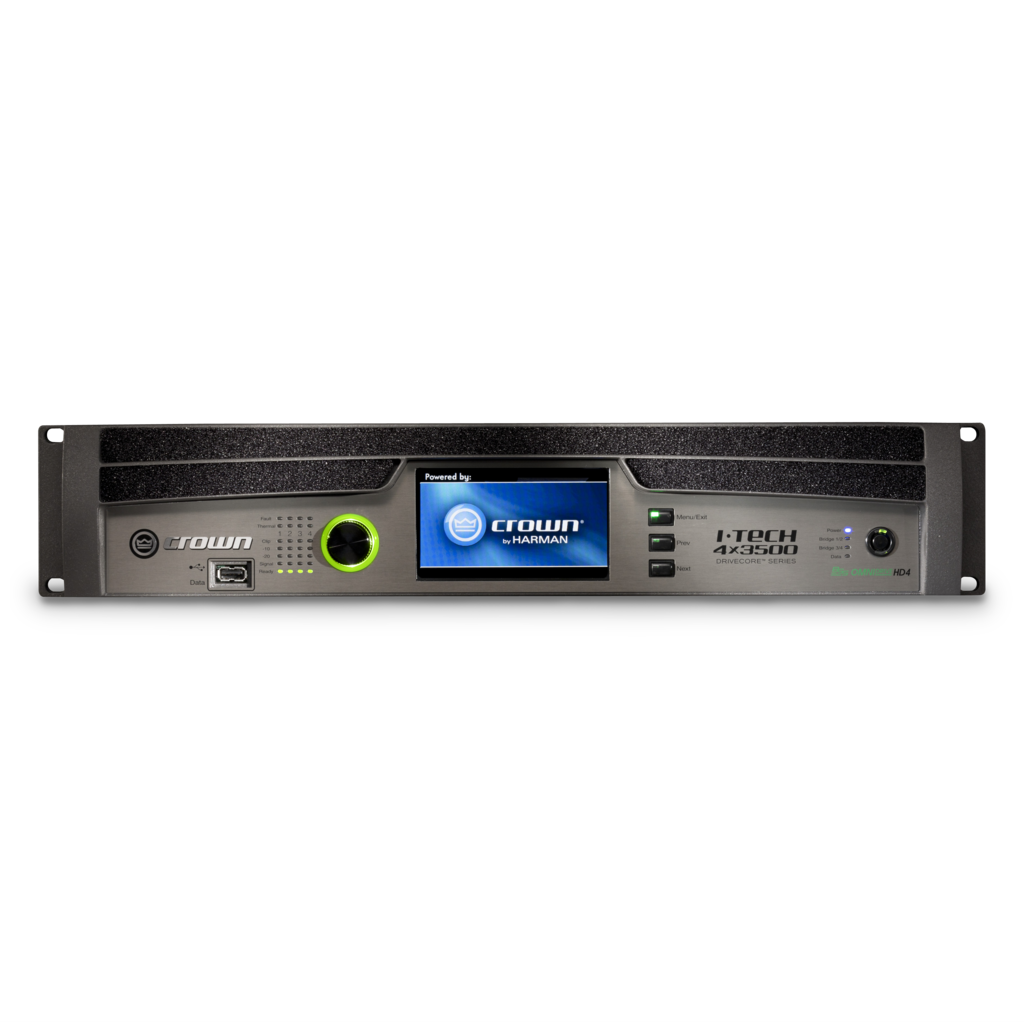

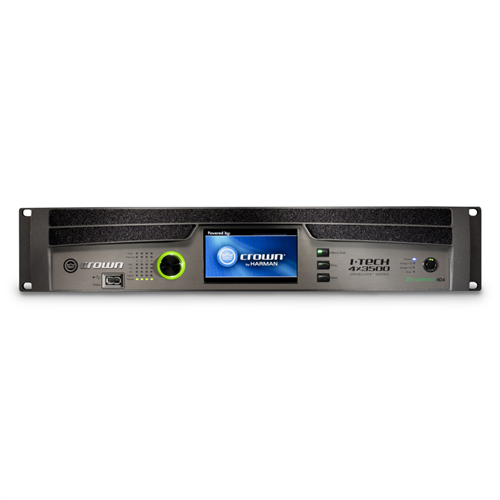

Crown I-Tech 4x3500HDB Four-Channel 4000W at 4Ohm Power Amplifier with Binding Posts

Product Code: CWN IT4X3500HDB

Key Features

More Flexibility

  • True Ethernet backbone – fast, reliable and scalable
  • Color LCD provides users with diagnostics and presets for easy setup
  • Includes SLM (Sweep Load Monitoring) with system-level diagnostics
  • Front panel USB connector transfers presets to/from a USB drive to the amp’s DSP
  • New software interface based on customer feedback manages presets, provides easier system-level changes, and includes a configuration wizard
  • The only product available with analog, AES, CobraNet®, HiQnet™ and Ethernet connectivity
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Crown I-Tech 4x3500HDB Four-Channel 4000W at 4Ohm Power Amplifier with Binding Posts

The I-Tech 4x3500HD amplifier is the industry's first high-powered tour sound amplifier featuring four inputs, Analog, AES3, and CobraNet™, fully routable to any one of 4 outputs.  Each channel features a complete compliment of OMNIDRIVEHD™ Processing, including the acclaimed LevelMAX™ Limiter Suite, and support for linear phase FIR filters as used in the latest JBL V5 loudspeaker tunings.  Combine that with Crown's patented Class-I technology delivering uncompromising power output across all four channels, and it's easy to see why the I-Tech 4x3500HD is the flagship tour sound amplifier from Crown.



The I-Tech 4x3500HD is available as two different model types:

  1. I-Tech 4x3500HD with Speakon Connectors (4x3500HDS)
  2. I-Tech 4x3500HD with Binding Posts (4x3500HDB)

This listing is for the Binding Posts (4x3500HDB) model.



Additional Features:

No Compromise

  • BSS OMNIDRIVEHD™ DSP processing with industry leading IIR filters and linear phase FIR filters
  • High common-mode rejection eliminates hum and RFI on input cables
  • Professional-grade connectors for all inputs and outputs
  • Full power-supply voltage is always available, allowing instantaneous power on demand
  • Quality-graded components let you safely drive the amplifier harder
  • More total capacitance provides tremendous energy reserves for power bursts

No Comparison

  • The only tour sound amplifier that provides four routable inputs to any output (analog, AES, VDrive, or CobraNet)
  • LevelMAX™ peak voltage and RMS power limiters communicate with each other, resulting in smooth and accurate response, better sound
  • Sixth generation patented Class-I (BCA®) circuitry couples power efficiently to the load and provides low AC current draw
  • Global Power Supply; universal AC input accepts 100-240VAC, 50/60 Hz (±15%)



  •
Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Channels 4 inputs, 4 outputs (Analog, AES 3, VDrive, CobraNet)
Sensitivity Adjustable in 0.1dB increments from 1.28Vrms to 8Vrms
Damping Factor >5000
Signal to Noise Ratio ≥108dB
THD (full rated power, 20 Hz - 20 kHz) 0.35%
Frequency Response ±0.25dB
Intermodulation Distortion (from 0 dB down to -40 dB) 0.06%
Crosstalk >80dB
Common Mode Rejection >80dB typical
Power Connector 32A PowerCON
Dimension (HxWxD) 89mm x 483mm x 431mm
3.5in x 19in x 16.9in
Net Weight 13.2kg (29lbs)
