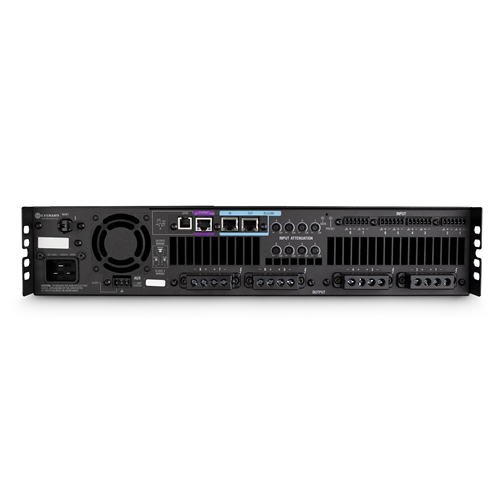

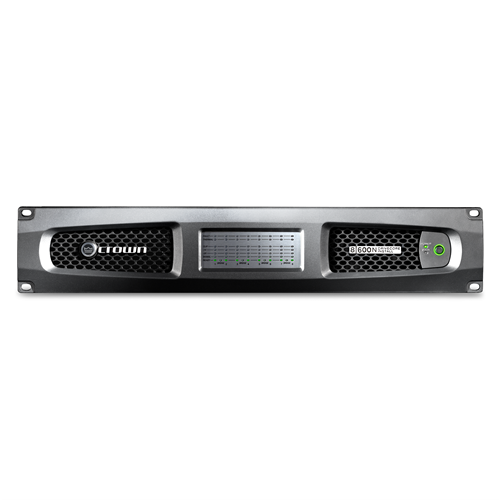

Crown DCI8600N - 8-Channel 600W Power Amplifier with BLU link

Product Code: CWN DCI8X600N

Key Features
Eight-channel, 600W @ 4 ohms Power Amplifier with BLU link, 70V/100V
$22,720.83 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The new DriveCore install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.

Network Power Matrix

Network Power Matrix Bridge

Features

ANALOG & DIGITAL INPUTS With digital audio transport via HARMAN s proprietary BLU-Link, plus balanced analog inputs, DCi gives you a tremendous audio advantage at a much lower cost. The priority input router allows you to specify a primary input, and if audio is lost the amp automatically switches to the other input.

NETWORK MONITORING & CONTROL Better monitoring, control and audio manipulation with the HiQnet™ protocol that s over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with DCi amplifiers.

PROGRAMMABLE GENERAL PURPOSE INPUT/OUTPUT PORTS GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer.

DIGITAL SIGNAL PROCESSING DSP capabilities include the following:

  • LevelMAX Limiters
  • Input/Output EQ
  • Delay
  • Matrix Mixer
  • Speaker Line Monitoring
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Response ( 8 Ohms, 20 Hz - 20 kHz) +/- 0.25 dB
BLU Link Input Signal to Noise Ratio (A-Weighted) > 104dB
Total Harmonic Distortion (at full rated power, 20 Hz - 20 kHz) 0.35%
Voltage Gain 34 dB
Damping Factor (20 Hz to 100 Hz) >1000
Input Impedance (nominal balanced, unbalanced) 10 kOhms, 5 kOhms
Maximum Input Level before Compression +20 dBu
Load Impedance (Stereo/Dual Mode) 2 - 16 Ohms; 70Vrms and 100Vrms
Load Impedance Bridge Mono 4 - 16 Ohms; 140Vrms and 200Vrms
Cooling Continuously variable speed forced air, front to back airflow
Maximum Fan Noise (re dBA SPL @ 1M) 47
Required AC Mains (+/- 10%) 100V-240V ~ 50/60 Hz
Dimensions 19" x 3.5" x 17" (48.3cm x 8.9cm x 42.5cm)
Weight 30lbs (13.60kg)
IEC Power Connector 20A
