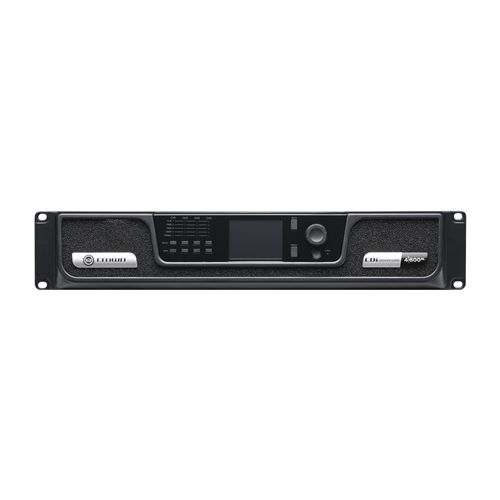

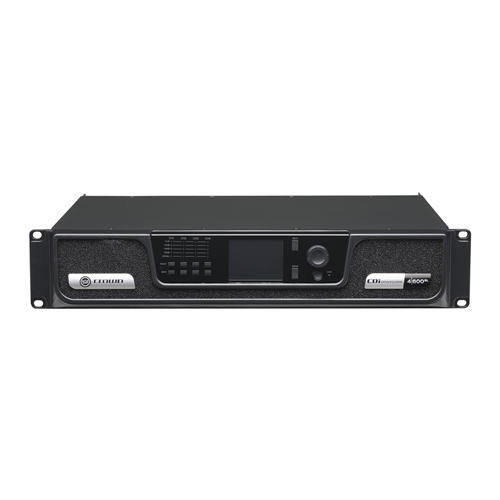

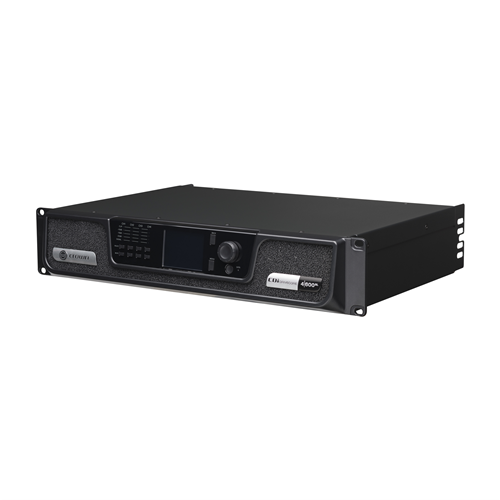

Crown CDI4600BL - 4-Channel 600W per output Channel Amplifier plus BLU link input

Product Code: CWN CDI4X600BL

Key Features
600 watts per channel 4 channel amplifier, 70/100V, 4/8 ohm, digital signal processing, networked, front panel interface, with BLU link .
$7,652.34 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost.  Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|600BL offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more.  Designed for ease-of-use in a variety of applications, the 4|600BL is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer.  The 4|600BL also comes with BLU link, adding the ability to send and receive channels over HARMAN s digital audio BUS. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

Feature Comparison

CDi DriveCore Model Channels Network Control DSP Control Port BLU link
4|600BL 4

Output Power: Dual Mode - All Channels Driven

CDi DriveCore Model Channels 2 4 8 16 70Vrms 100Vrms
4|600 / 4|600BL 4 300W 600W 600W 300W 600W 600W

Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)

Output Power: Bridge Mono Mode - All Channels Driven

CDi DriveCore Model 4 8 16 140Vrms 200Vrms
4|600 / 4|600BL 600W 1200W 1200W 1200W 1200W

Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

BLU link Yes
Channels 4
Sensitivity (for full rated power at 8 ohms) 0.7V RMS
Rated Power Output (per channel @ 4 ohms) 600W
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms) > 104dB
THD (full rated power, 20 Hz - 20 kHz) 0.35%
Damping Factor (20 Hz to 100 Hz) > 1000
Frequency Response (8 , 20 Hz - 20 kHz) +/-0.25dB
Crosstalk (below rated power) 20 Hz to 1 kHz > 80dB
Input Impedance (nominally balanced, nominally unbalanced) 20 k balanced, 10 k unblanced
Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion) 19 x 3.5 x 12.25
Weight 16.3 lbs (7.39 kg)
Power Supply Connector "15A IEC connector, 100 240V "
