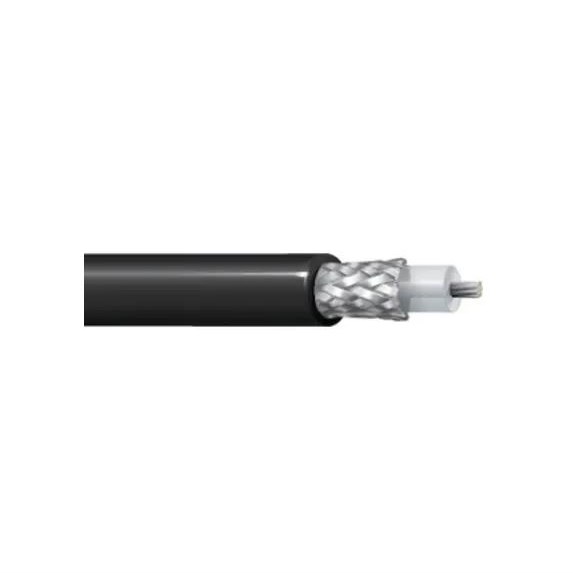

Belden Coax Cable RG-58A/U Type 50Ohm Black - 305m Reel

Product Code: 8259 0101000

Key Features
RG-58A/U type, 20 AWG stranded (19x33) .035" tinned copper conductor, polyethylene insulation, tinned copper braid shield (95% coverage), PVC jacket.
$2.73 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents
RG-58A/U type, 20 AWG stranded (19x33) .035" tinned copper conductor, polyethylene insulation, tinned copper braid shield (95% coverage), PVC jacket.

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Physical Characteristics (Overall)
# Coax1
AWG20
Stranding19x33
Conductor MaterialTC - Tinned Copper
Dia. (mm)0.889
Total Number of Conductors:1
Insulation MaterialPE - Polyethylene
Dia. (mm)2.9464
TypeBraid
Outer Shield MaterialTC - Tinned Copper
Coverage (%)95
Outer Jacket MaterialPVC - Polyvinyl Chloride
Nom. Wall Thickness (mm)0.6985
Overall Nominal Diametre:4.902 mm
Mechanical Characteristics (Overall)
Operating Temperature Range:-40°C To +75°C
Non-UL Temperature Rating:75°C
Bulk Cable Weight:37.205 Kg/Km
Max. Recommended Pulling Tension:186.824 N
Min. Bend Radius/Minor Axis:50.800 mm
Applicable Specifications and Agency Compliance (Overall)
EU Directive 2011/65/EU (ROHS II):Yes
EU CE Mark:No
EU Directive 2000/53/EC (ELV):Yes
EU Directive 2002/95/EC (RoHS):Yes
EU RoHS Compliance Date (mm/dd/yyyy):01/01/2004
EU Directive 2002/96/EC (WEEE):Yes
EU Directive 2003/11/EC (BFR):Yes
CA Prop 65 (CJ for Wire & Cable):Yes
MII Order #39 (China RoHS):Yes
RG Type:58A/U
Plenum (Y/N):No
