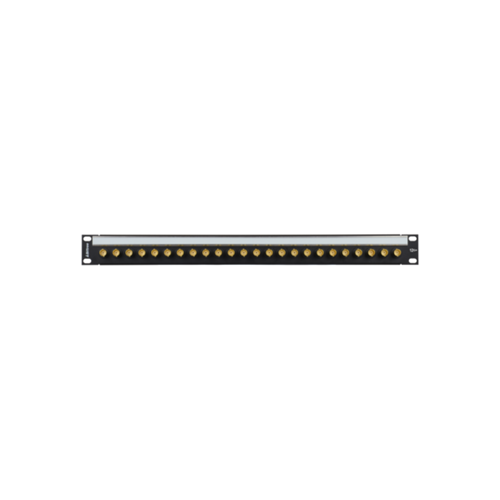

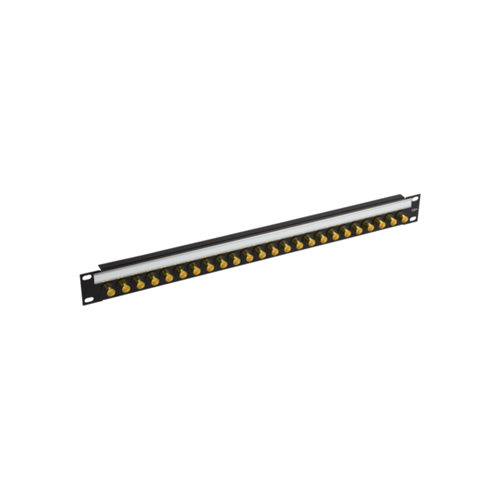

Bittree 12G+ BNC Coaxial Bulkhead Patch Panel - 1 RU 1x24 Connectors BNC to BNC 20 Ghz 1 Designation Strip

Product Code: BH-B124A1B12

Key Features
  • 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications
  • SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
  • 75 ohm impedance with low return loss
  • 500 Mating cycles
  • Operating temperature: -35 to +165°C
  • IP64 (mated)
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 2-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Bittree BHB124A1B12 Ru 1 Row Of 24 Connectors Bnc To Bnc 20 Ghz

Bittree® 12G+ BNC Coaxial Bulkhead Panel in 1 RU Height with 1x24 Jack Configuration

Coaxial Bulkhead. 24 Connectors Per Row. Prices of BNC Breakout Panels affected by the number of connectors and inclusion of designation strips Available in heights of 1 and 2 RU. Optional designation strip(s) available. Additional configurations available; please contact us or visit bittree.com for more information.

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

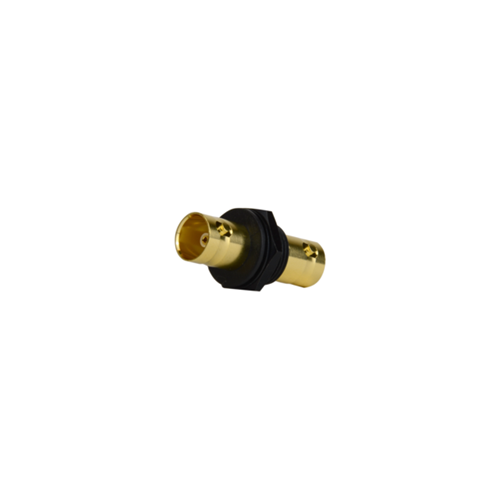

BNC Jack Properties:
• 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications
• SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
• 75 ohm impedance with low return loss
• 500 Mating cycles
• Operating temperature: -35 to +165°C
• IP64 (mated)

Panel Features:
• 1/16” (0.062 in. / 1.57 mm) folded aluminum with a durable black powder-coat finish
• BNC connectors on both the front and back of the panel
• Silk screened circuit numbering on the front with optional designation strip available

Options:
• Front Panel Circuit Identification:

- Silk screened numbering only, or
- 1 x DS580-20 Designation Strip (stainless-steel slider with white styrene and non-glare Lexan inserts)


Compliance:

• RoHS Compliance
