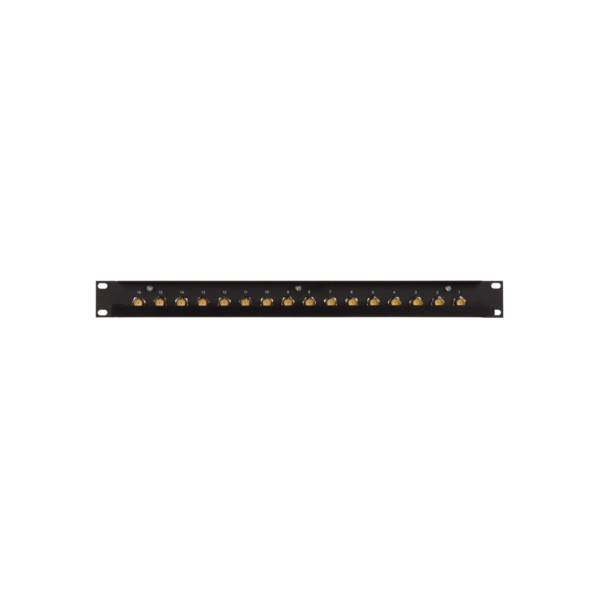

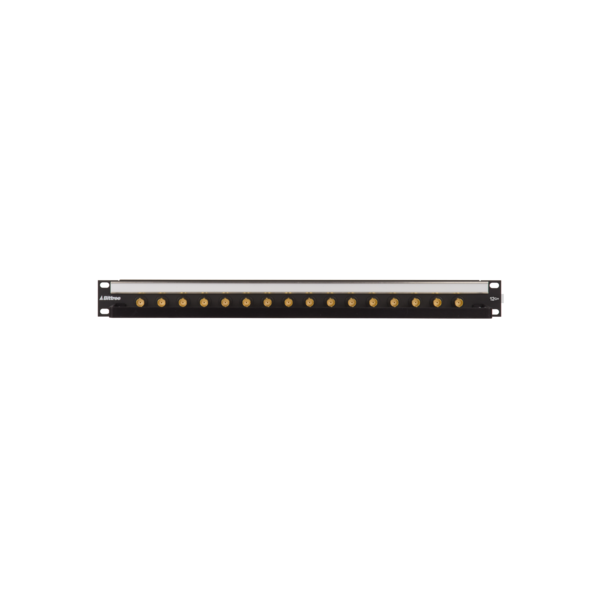

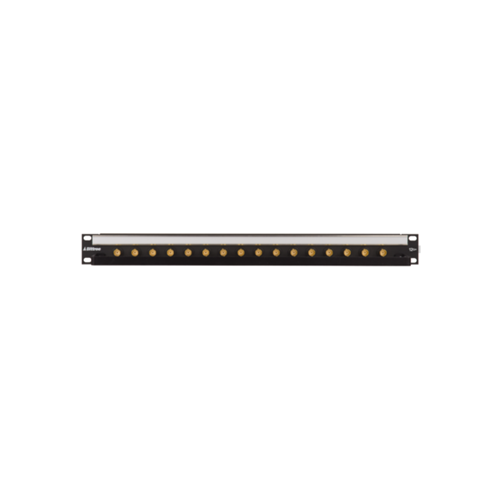

Bittree® 12G+ BNC Coaxial Bulkhead Panel;in 1 RU Height with 1x16 Jack Configuration
Coaxial Bulkhead. 16 Connectors Per Row. Prices of BNC Breakout Panels affected by the number of connectors and inclusion of designation strips Available in heights of 1 and 2 RU. Optional designation strip(s) available. Additional configurations available; please contact us or visit bittree.com for more information.
We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

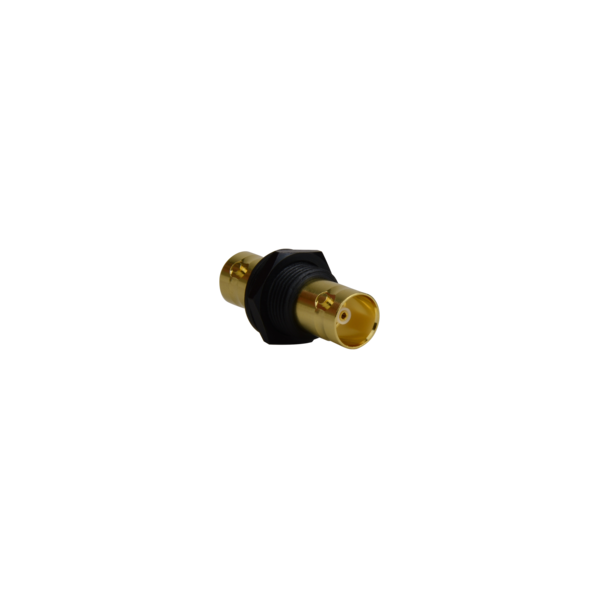

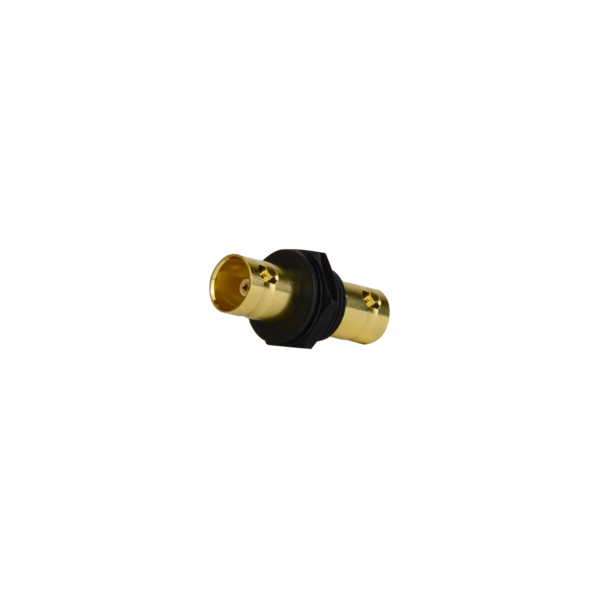

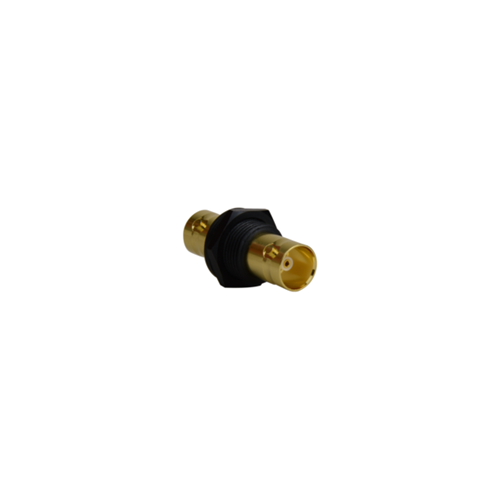

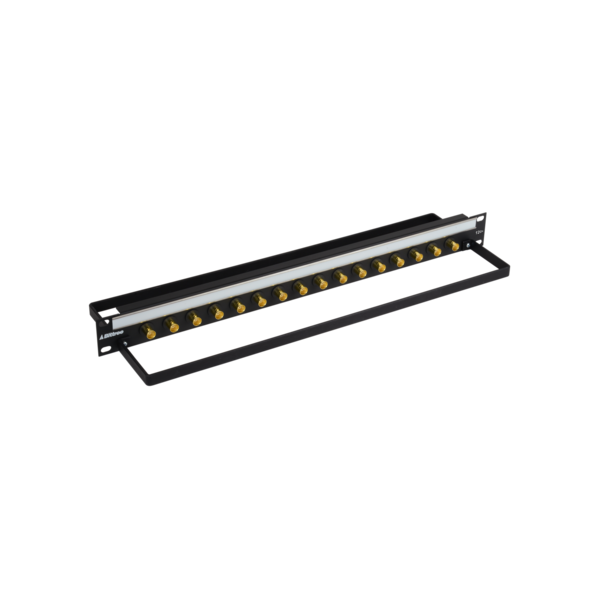

BNC Jack Properties:• 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications• SMPTE 292M, 424M, 2081-1, and 2082-1 compliant• 75 ohm impedance with low return loss• 500 Mating cycles• Operating temperature: -35 to +165°C• IP64 (mated)Panel Features:• 1/16” (0.062 in. / 1.57 mm) folded aluminum with a durable black powder-coat finish• BNC connectors on both the front and back of the panel• Silk screened circuit numbering on both the front and back with optional designation strip available for the front• Two 3" (7.62 cm) deep lacing bars for cable dressing (both are removable)• Alternative 6" (15.24 cm) deep lacing bars available; please make a request at checkout if interestedOptions:• Front Panel Circuit Identification:
Compliance:
