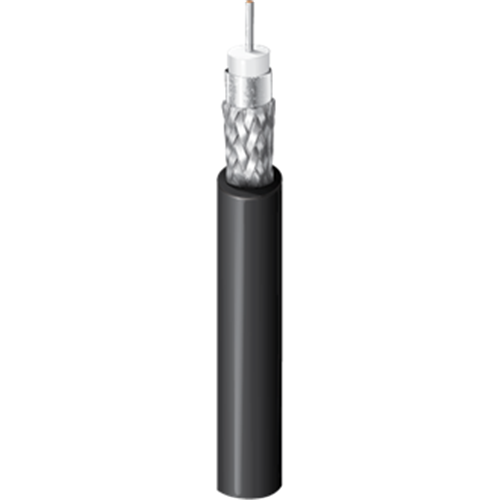

Belden 4K Ultra HD Coaxial Cable for 12G-SDI TV Video 75Ohm 23AWG Black - 305m Reel

Product Code: 4855R 0101000

Key Features

12 GHz, 4K UHD Precision Video Cable, Mini RG-59, 75 Ohm 23 AWG solid 0.023" silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil® bonded to the core + tinned copper braid shield (95% coverage), PVC Jacket

$3.91 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Belden 4K UHD Coax for 12G-SDI, 75 Ohm, Mini RG-59, 23 AWG Solid SC, Foil + 95% TC Braid, PVC Jacket, CMR

Suitable Applications

Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Construction Details

RG Type

Mini 59

CONDUCTOR
Size Stranding Nom. Diameter Material
23 AWG Solid 0.023 in SC - Silvered Copper

INSULATION
Material Nom. Insulation Diameter
PE - Polyethylene (Foam) 0.102 in (2.59 mm)

OUTER SHIELD
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Tinned Copper (TC) 95%

Overall Cable Diameter (Nominal)

0.159 in (4.04 mm)

OUTER JACKET
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.159 in (4.04 mm)

Electrical Characteristics

RETURN LOSS
Frequency Min. Return Loss
5 - 1600 MHz 23 dB
1600 - 4500 MHz 21 dB
4500 - 12000 MHz 15 dB

ATTENUATION
Frequency Nom. Attenuation
1 MHz 0.39 dB/100ft
3.58 MHz 0.78 dB/100ft
5 MHz 0.92 dB/100ft
6 MHz 1 dB/100ft
7 MHz 1.08 dB/100ft
10 MHz 1.2 dB/100ft
12 MHz 1.3 dB/100ft
25 MHz 1.8 dB/100ft
55 MHz 2.6 dB/100ft
67.5 MHz 2.83 dB/100ft
71.5 MHz 2.93 dB/100ft
88.5 MHz 3.22 dB/100ft
100 MHz 3.39 dB/100ft
135 MHz 3.84 dB/100ft
143 MHz 4.00 dB/100ft
180 MHz 4.41 dB/100ft
270 MHz 5.44 dB/100ft
360 MHz 6.34 dB/100ft
540 MHz 7.85 dB/100ft
720 MHz 9.09 dB/100ft
750 MHz 9.28 dB/100ft
1000 MHz 10.8 dB/100ft
1500 MHz 13.2 dB/100ft
2000 MHz 15.3 dB/100ft
2250 MHz 16.3 dB/100ft
3000 MHz 19.0 dB/100ft
4500 MHz 23.6 dB/100ft
6000 MHz 27.7 dB/100ft
12000 MHz 41.2 dB/100ft

ELECTRICALS
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
19.7 Ohm/1000ft (64.6 Ohm/km) 3.8 Ohm/1000ft (12 Ohm/km) 16.3 pF/ft (53.5 pF/m) 75 Ohm 82%

VOLTAGE
UL Voltage Rating
300 V RMS (CMR, CMG)

Mechanical Characteristics

TEMPERATURE
UL Temperature Operating
60°C -30°C to +75°C

BEND RADIUS
Installation Min.
1.6 in

Max. Pull Tension

33 lbs (15 kg)

Bulk Cable Weight

17 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor - Riser, Indoor, UV Resistance

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL1666 Vertical Shaft, FT4

NEC / UL Compliance

CMR

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

4855P

Accessories

Kings Electronics BNC 75 Ohm Crimp Plug 12G Rated Suits Belden 1855A and 4855R
Kings Electronics BNC 75 Ohm Crimp Plug 12G Rated Suits Belden 1855A and 4855R 2065-11-9 KINGS
In Stock
$9.80 (EA)
Increase value Decrease value View Product
