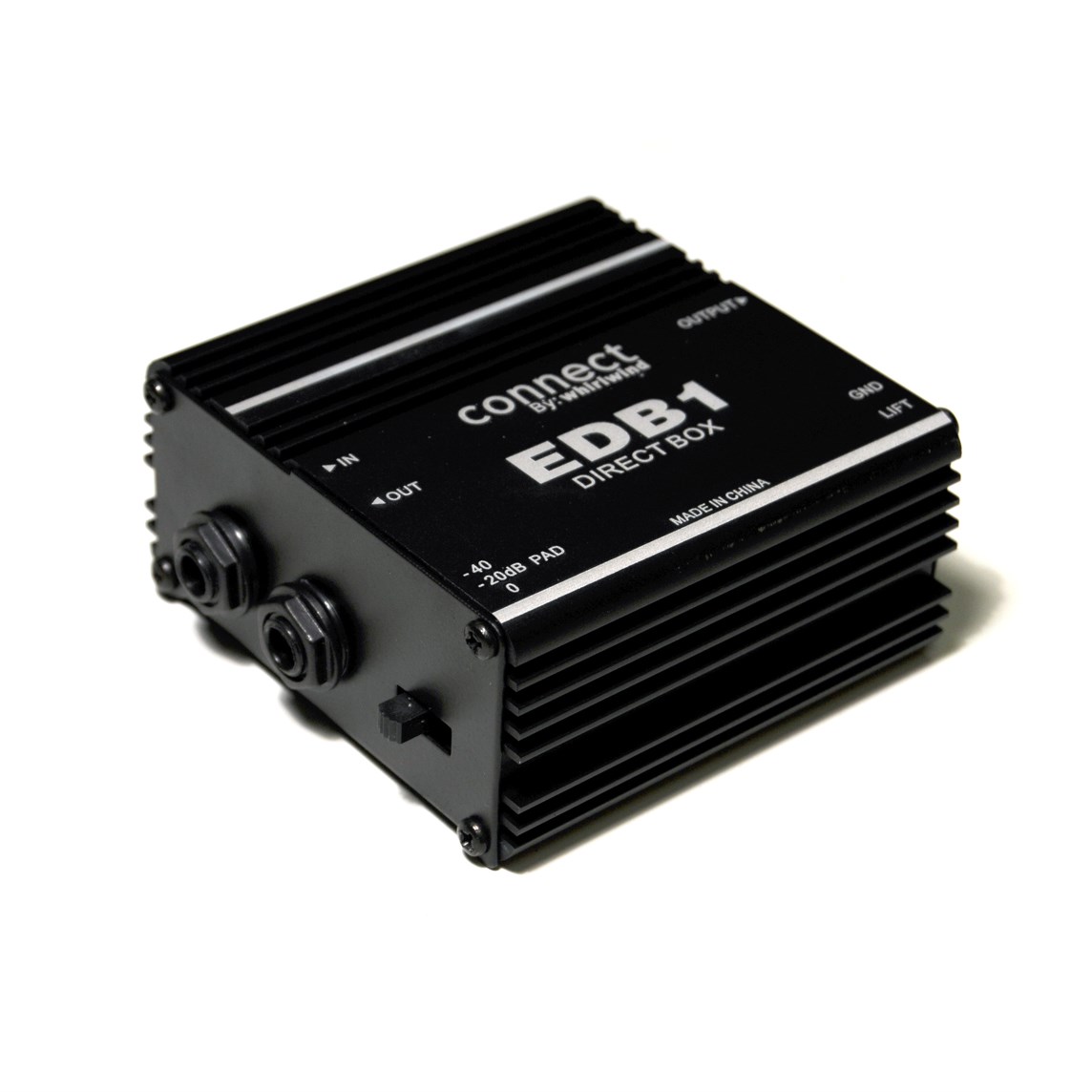

Whirlwind Connect Series EDB1 - Economy Model with Pad

Product Code: WH EDB1

Key Features

An imported economy direct box offering rugged construction while maintaining exceptional sound quality.

  • Product family: CONNECT SERIES
  • Type: Passive
$150.49 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Features include:

  • 1/4" In and Through jacks
  • XLR output
  • Pad switch for connection to "hot" signal sources
  • Ground Lift switch to help isolate hum and buzz
  • Metal construction and quality transformer

Model - EDB1
Impedance Ratio (input to output): 133:1
Frequency Response: 20Hz-20kHz ±1dB
Level Change: -20dB (input to output, pad switch set to zero dB)
Pad: 3 position, provides 0dB, -20dB, -40dB additional attenuation

Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
