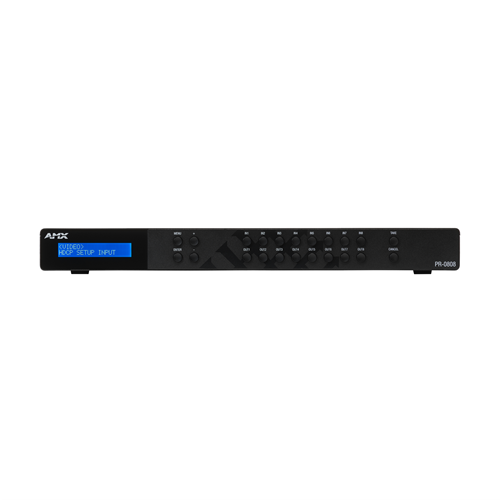

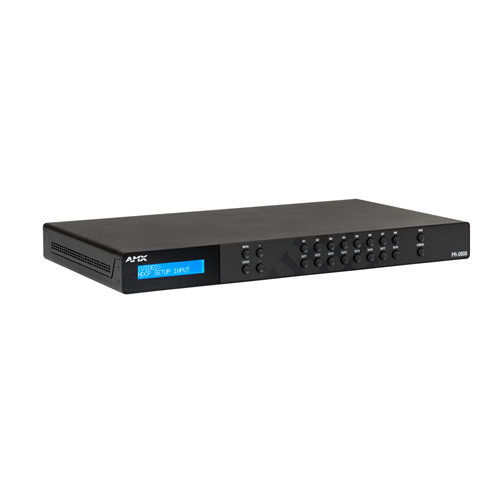

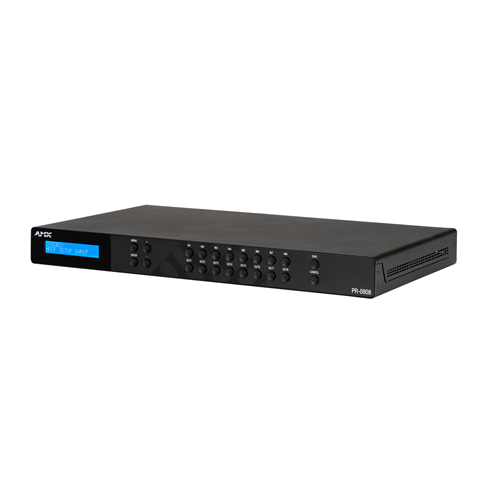

AMX PR-0808 Precis 8x8 4K60 HDMI Switcher

Product Code: AMX PR-0808

Key Features
  • Perfect HDMI 2.0 4K60 4:4:4 Video
  • High Dynamic Range (HDR) and Deep Color Support
  • HDCP 2.2
  • EDID Management
  • Audio De-Embedding
  • H-Control Upgradable
  • Multiple Control Options
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

AMX PR-0808 Precis 8x8 4K60 HDMI Switcher



The AMX Precis 8x8 4K60 HDMI Matrix Switcher is an extremely affordable yet fully featured HDMI video routing solution for medium to larger installations. Featuring 8 HDMI inputs and 8 HDMI outputs, it includes best-in-class capabilities like pixel-for-pixel video reproduction, comprehensive EDID management, manual switching modes, and extreme control flexibility with an open control API and a simple-to-manage HTML5 web interface.

The PR-0808 supports high quality HDMI 2.0, HDCP 2.2, HDR10+, 36-bit per pixel Deep Color, and Dolby Vision. Dynamic audio de-embedding and multiple open control options offer maximum configuration flexibility. Combining a robust matrix switcher and a highly affordable price point, backed by over 30 years of industry-leading matrix switching experience, the AMX Precis PR-0808 can be trusted to deliver an exceptional switching solution.

Common Applications:

The Precis PR-0808 4K60 HDMI Matrix Switcher is the ideal choice for beautiful, cost effective 4K60 4:4:4 matrix switching in larger meeting spaces and classrooms as well as lecture halls, houses of worship and more.

Features:

  • Perfect HDMI 2.0 4K60 4:4:4 Video - Ideal for users that can benefit from processing the full fidelity of their displays
  • High Dynamic Range (HDR) and Deep Color Support – Support for HDR10+, 36-bit per pixel Deep Color, and Dolby Vision
  • HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
  • EDID Management - Provides comprehensive management of EDID to ensure that every source is displayed at the optimal resolution and format
  • Audio De-Embedding – Includes the convenience of analog audio de-embedding from each HDMI output separately
  • H-Control Upgradable – Ready to support H-control in the future by firmware re-writing via USB
  • Multiple Control Options – Multiple control options are available including: Open API Control over IP and Serial, full Web GUI console, and front panel buttons
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Video Inputs (8) HDMI; supports HDMI/HDCP
Video Outputs (8) HDMI; supports HDMI/HDCP
Video Resolution Support Various up to 4096 x 2160@ 60 Hz - Reference Data Sheet for Specific Resolution Support
Audio Inputs Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel, PCM Multi-Channel, Dolby Digital, Dolby Digital Plus, Dolby Atmos, Dolby TrueHD, DTS, & DTS HD MA
Audio Outputs (8) 3 Position 3.5mm pluggable Phoenix Terminal Block; supports Unbalanced Analog Stereo

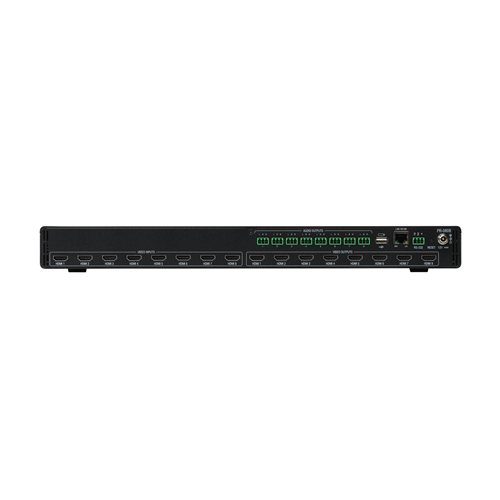

Ports 12V Power: (1) Screw Down Locking Power Connector; HDMI Input: (8) HDMI Type A Socket; HDMI Output: (8) HDMI Type A Socket; Ethernet: (1) RJ45 Connector; Analog Stereo Output: (8) 3 Position 3.5mm pluggable Phoenix Terminal Block; RS-232: (1) 3 Position 3.5 mm pluggable Phoenix Terminal Block; Program Port: (1) USB Type A Socket
Environmental Temperature (Operating): 32°F (0°C) to 122°F (50°C)
Temperature (Storage): -4°F (-20°C) to 140°F (60°C)
Humidity (Operating): 10% to 90% RH (non-condensing)
Humidity (Storage): 10% to 90% RH (non-condensing)
Thermal Dissipation (Typical): 251.1 BTU/hr
Regulatory Compliance FCC Part 15 Class B
EN 55032
EN 55035
CB IEC/EN 60950
CB IEC/EN 62368-1
UL 62368-1
RoHS/REACH
EMC (Australia)
EMC (Canada)
EMC (UKCA)
Prop65
Dimensions (H x W x D) 1.73” x 17.24” x 10.59” (4.4 cm x 43.8 cm x 26.9 cm)
Weight 7.9 lbs (3.6 kg)
FG Numbers AMX-PR-0808
