AMX CE-COM2 Universal Control Extender with 2 Serial Ports

Product Code: AMX CEB003

Key Features
  • Professional-Grade Quality
  • Open Control API
  • Web Configuration Interface
  • Compact Form-Factor
  • PoE Powered
  • HControl Native
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

AMX CE-COM2 Universal Control Extender with 2 Serial Ports

The AMX CE-COM2, Universal Control Extender with 2 serial ports, delivers AMX-quality hardware control to any system that supports IP connectivity. An open control API makes it simple to integrate these boxes with third-party control systems or apps, and the integrated web interface enables configuration without specialized applications. HControl enables them to be auto-discovered and integrated seamlessly with next generation AMX control processors and other HARMAN Professional products.

These universal control extender boxes provide a secure, professional-grade solution for interfacing with serially controlled devices over the network. They are PoE powered, with a small footprint for easy installation and concealment. As a network device, they extend the reach of control processors well beyond the limits inherent in point-to-point connections.

Common Applications

CE Series Universal Control Extenders are ideal additions to any control system that supports IP connectivity. An open control API makes it simple to integrate these boxes with any IP-capable control systems or apps, and the integrated web interface enables configuration without specialized applications. These professional-grade devices can extend the reach of control systems in corporate spaces, colleges and universities, and government facilities with security requirements that may disqualify similar solutions from other manufacturers.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

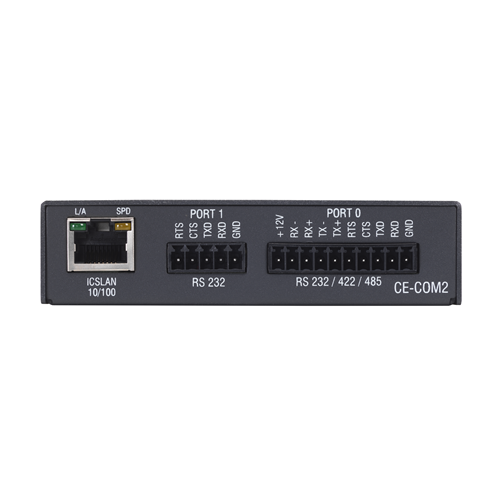

Ports (ICSLAN) Gigabit Ethernet port with PoE support, (RS232) 5-pin 3.5mm screw terminal, (RS232/422/485) 10-pin 3.5mm screw terminal
Environmental Operating Temperature: 0° C (32° F) to 40° C (104° F)
Storage Temperature: -10° C (14° F) to 60° C (140° F)
Operating Humidity: 5% to 85% RH (non-condensing)
Heat Dissipation (Typical): 36.9 BTU/hr Designed for indoor use only.
Product Dimensions (H x W x D) 1" x 4 1/16" x 4 3/32" (2.5 cm x 10.3 cm x 10.4 cm)
Product Weight 1 lb (454 g)
SKU Numbers AMX-CEB003
