Amphenol RCA D Type Black Shell Female Green

Product Code: ACJB-GRN

Key Features

M Series - D Type - RCA Chassis Mounts

$11.21 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

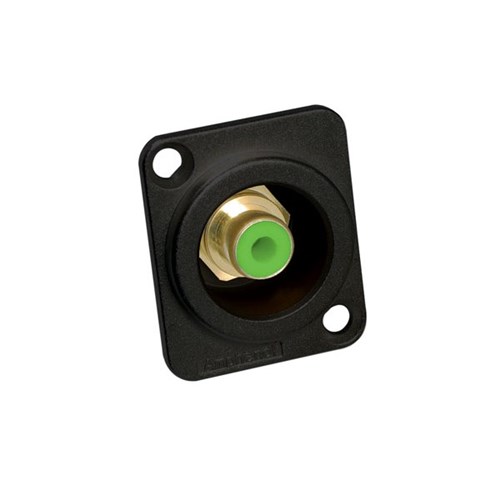

Amphenol RCA D Type Black Shell Female Green

Amphenol’s plugs and sockets range continually expands to meet the needs of our customers. The success of the M-Series phone plugs led to the RCA series being developed.

  • Female - Diecast Shell
  • Green Insulation
  • Gold Plated Contacts
  • Matt Black Shell Finish
Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Number of Contacts 2
Termination Solder
Max. Wire Gauge - Stranded Wire AWG 14 - 2.5mm²
Flammability rating of insulating plastics UL94V-0
Solderability, complies with IEC 68-2-20
Environmental Complies with EU RoHS 2 Directive 2011/65/EU

ELECTRICAL CHARACTERISTICS

Current Carrying Capacity 10A (Depends on Mating Connector)
Typical Contact Resistance ≤10mΩ (Depends on Mating Connector)
Insulation resistance (initial)
After Damp Heat Test		 >2GΩ
≥ 10³ Meg Ω
Dielectric Strength 1500 V dc

CLIMATIC CHARACTERISTICS

Protection Class IP40
Operating Temperature -25ºC to +75ºC (-13ºF to +167ºF)

MECHANICAL CHARACTERISTICS

Insertion and Withdrawal Force ≥10N - ≤30N (depends on mating connector)
Cable O.D. 3mm to 7mm (0.118” to 0.275”)
Mechanical Operations 500 mating cycles
Weight
- Cable Mount
- Panel Mount		 18g (0.039lb)
30g (0.066lb)

MATERIALS

Connector Shell Material (Plugs) Diecast Zinc Alloy EZDA No.3
Connector Shell Finish Satin Nickel or Coloured Polyester
Insulators PA66
Cable Bushing Thermoplastic Polyurethane
Contacts Brass Alloy
Plating Gold Flash
