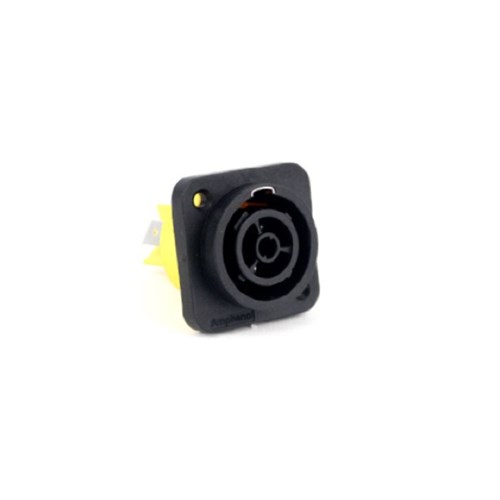

Amphenol Plastic Recptacle Panel Black 3 Pole

Product Code: HPT-3-FD

Key Features

HPT Series - Power Cable Connectors and Mounts

$6.81 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Amphenol Plastic Receptacle Panel Black 3 Pole

HPT Series connectors are suitable for AC power supply where a durable latch locking connector is required. They are rated at 16A, 250 Vac. HPT Series connectors can be connected or disconnected under load and are IP65 rated.

Features
  • 2+PE contact layout
  • Quick-release, vibration resistant latch lockable
  • High impact UV resistant material
  • True Mains Connector with Current Breaking Capacity (CBC)
  • 16A current rating (20A USA)
  • Industry-standard mating interface
  • IP65 rated
  • UL498 certified
  • UL50E enclosure type 4 (when mated or in combination with protective caps)
  • Patent Protected
Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Number of contacts 2 + PE
Termination
- Cable Connector
- Chassis Mount		 2mm Hex key screw terminal
Flat Tab 1/4”
Flammability UL94V-0
Environmental Complies with EU RoHS 2 Directive 2011/65/EU

ELECTRICAL CHARACTERISTICS

Rated Operating Voltage 250VAC
Test Voltage AC RMS 1500V

Current carrying capacity

16A (20A USA)
Typicial Contact Resistance ≤2mΩ
Insulation Resistance (initial) ≥2GΩ
Insulation Resistance (after damp heat test) ≥0.1GΩ

CLIMATIC CHARACTERISTICS

Protection Class IP65, UL50E enclosure type 4 (in mated or in combination with protective caps)
Operating Temperature -25 C to +80 C (-13°F to +176°F)

MECHANICAL CHARACTERISTICS

Weight**
- Chassis Connector
- Cable Plug		 15g (0.033lb) / 25g (0.055lb)
40g (0.088lb)
Typical Cable retention force Subject to cable material and O.D.
Cable O.D range 6.0 -12.0 mm with lockable backshell
7.5 -16.0 mm with non-lockable backshell
Conductor Size
- Screw Terminals		 2.5mm² (AWG12)

MATERIALS

Connector Shell / Finish PA66 GF30 / Black
Insulators PA66 GF30
Cable Boot / Backshell

Neoprene / PBT

Contact Plug - Material / Plating

Copper Alloy / Silver

Contact Chassis - Material / Plating

Copper Alloy / Silver
Protective Caps
- Base
- Overmolded Cap
- Chain

Santoprene, UV resistant
PA66 & Santoprene, UV resistance
Stainless Steel SS304
Protective Caps (Self closing)
- Base
- Overmolded Cap
- Gasket
- Spring

Polycarbonate, UV resistant
Polycarbonate & Santoprene, UV resistant
Silicone Rubber
Stainless Steel SS304
