Amphenol Plastic Chassis Screw Grey 3 Pole Without Divider

Product Code: HP-3-MDW

Key Features

HP Series - Power Cable Connectors and Mounts

$6.83 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

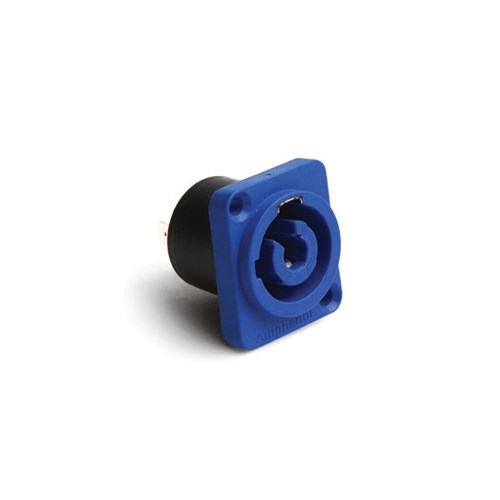

Amphenol Plastic Chassis Screw Grey 3 Pole Without Divider

HP Series connectors are suitable for AC power supply where a latch locking connector is required. They are rated at 25 A / 250 Vac. Connectors are keyed and colour coded for power-in (Blue) and power-out (Grey).

THE HP SERIES OF CONNECTORS ARE NOT DESIGNED TO BE “HOT PLUGGED” AND SO ARE WITHOUT “BREAKING CAPACITY”. IN OTHER WORDS, THE CONNECTORS SHOULD NOT BE CONNECTED OR DISCONNECTED LIVE OR WHEN UNDER LOAD.

Features
  • Quick release, vibration resistant latch lock
  • 3 pole
  • Screw Terminals or Solder Tab 3/16”
  • Chuck type cable clamp
  • 25A Current rating
  • Thermoplastic housing
  • Industry standard mating
  • UL, cUL recognized components (File no. E339831)
Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Number of contacts 2 + PE
Termination Screw or Solder Tab 3/16”
Flammability UL94V-0
Environmental Complies with EU RoHS 2 Directive 2011/65/EU

ELECTRICAL CHARACTERISTICS

Rated Operating Voltage 250VAC
Test Voltage AC RMS 3200V

Current carrying capacity

25A
Typicial Contact Resistance ≤3mΩ
Insulation Resistance (initial) ≥2GΩ
Insulation Resistance (after damp heat test) ≥1GΩ

CLIMATIC CHARACTERISTICS

Protection Class IP20
Operating Temperature -25 C to +75 C (-13°F to +167°F)

MECHANICAL CHARACTERISTICS

Weight**
- Chassis Connector
- Cable Plug		 12g (0.026lb)
32g (0.070lb)
Typical Cable retention force 200N
(Subject to cable material and O.D.)
Cable O.D range
- Blue Chuck Clamp
- Black Chuck Clamp		 5mm - 7.5mm (0.19” - 0.29”)
7.5mm - 15mm (0.29” - 0.59”)
Conductor Size
- Screw Terminals		 2.5mm² (AWG14)

MATERIALS

Connector Shell / Finish PA66 GF30 / Black
Insulators PA66 GF30
Cable Boot / Backshell

Santoprene / PBT

Cable Clamp (Chuck)

P.O.M

Contact Plug
- Material / Plating

Brass / Silver
Contact Chassis
- Material / Plating

Phosphor Bronze / Silver
