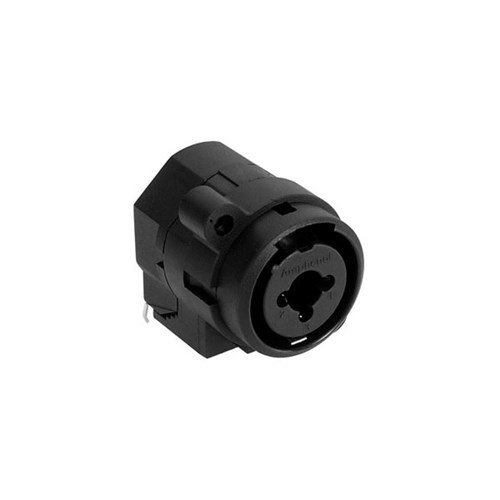

Amphenol Phone Jack with XLR Dual Vertical PCB Stereo Latchless

Product Code: ACJC6VL BULK

Key Features

AC Dual 1/4 / XLR - C Type - XLR Chassis Mounts

$6.59 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Amphenol Phone Jack / XLR Dual Vertical PCB, Stereo Latchless

The AC Series C type chassis receptacles feature two connectors in the one space saving housing. A combined XLR female receptacle together with a 6.35mm (1/4”) phone jack give the designer more flexibility ensuring premium board space is saved. The new low profile high density C type offers a 15% space saving over the traditional C type. Various configurations are available in either stereo or mono layouts with Vertical, Horizontal Printed Circuit Board or Solder contacts.

  • Stereo - Latchless
  • Non Switching
  • XLR Grounded
  • Vertical PCB
Features
  • Standard or low profile / high density shell design
  • Two connectors in the one housing
  • Industry standard PCB footprint layout on standard C type.
  • Vertical or Horizontal PCB mounting
  • Bulk packed
  • Positive latch lock system (XLR)
Options
  • Solder contacts
  • Vertical PCB contacts
  • Horizontal PCB contacts
  • Bulk Packaging
  • Overmoldable connector housing
Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Number of Contacts 6
Termination

Printed Circuit Board (PCB) - Low Profile Type

Printed Circuit Board (PCB) or Solder Bucket - Standard C Type
Flammability UL 94HB
Environmental Complies with EU RoHS 2 Directive 2011/65/EU

ELECTRICAL CHARACTERISTICS

Service Voltage RMS 50V
Test Voltage AC RMS 1500V
Current carrying capacity 7.5A
Typical Contact Resistance ≤50mΩ
Insulation Resistance (initial) > 0.5GΩ
Insulation Resistance (after damp heat test) > 0.2GΩ

CLIMATIC CHARACTERISTICS

Protection Class IP40
Operating Temperature -25 C to +70 C

MECHANICAL CHARACTERISTICS

Weight

9.2g (0.02lb) - Low Profile Type

14g (0.030lb) - Standard C Type
Retention Spring separating force ≥20N
Mounting Screw torque max. 1.5Nm
Mechanical Operations 1500 mating cycles
Fastening Self-Tapping PT screw with thread 2.9 x 1.06 and of Tri-rondular configuration

MATERIALS

Connector Shell

PA6.6 + 30% glass fibre reinforced, UL94HB (Low Profile Type)

PA6.6 + 20% glass fibre reinforced, UL94HB (Standard C Type)
Shell Finish Black (Standard C Type)
Insulators

PA6.6 glass fibre reinforced, UL94HB (Low Profile Type)

PA6.6 + 20% glass fibre reinforced, UL94HB (Standard C Type)

XLR Contact

Material

Plating



Bronze

Gold over Nickel plated

Jack Contact

Material

Plating



Bronze (Low Profile Type), Brass (Standard C Type)

Gold over Nickel plated (Low Profile Type), Silver over Copper plated (Standard C Type)
Latch lock and Spring Nickel Plated
Ground element

Nickel Plated (Low Profile Type)

Silver over Copper Plated (Standard C Type)
