Amphenol SP Series Loudspeaker Panel Mount 4 Pole EP Cutout

Product Code: SP-4-MC

Key Features

SP Series - Loudspeaker Chassis Mounts

$5.29 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

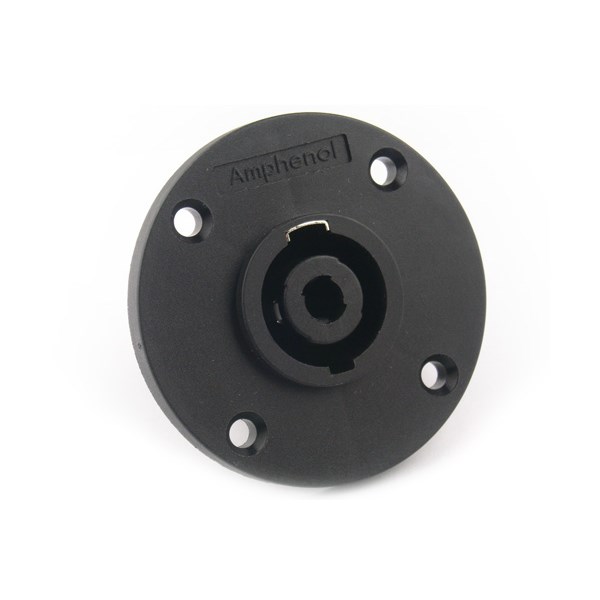

Amphenol Panel Mount, 4 Pole (EP Cutout)

The SP Series are available in 2 or 4 pole chassis mount connectors. The durable thermoplastic housings are fitted with high power contacts to ensure optimal current carrying capacity. Completely intermatable with industry standard loudspeaker connections.

Features
  • High current contacts for distortion free signal
  • Cost effective durable thermoplastic shell
  • Available in 2 and 4 contact arrangements
  • Quick release, vibration resistant latch lock
  • UL, cUL recognized components (File no. E339831)
  • Precision machined contacts
  • Thermoplastic shell
Options
  • Solder termination / Tab or Printed Circuit Board versions, Screw Terminals
  • Nickel Plated Zinc Alloy shell
  • Black finished Zinc Alloy shell
Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Number of contacts 2 or 4
Termination (Chassis) Printed Circuit Board (PCB) or Solder Tabs 3/16”
Termination (Cable Plugs) Screw or Solder Terminals
Flammability UL94HB
Environmental Complies with EU RoHS 2 Directive 2011/65/EU

ELECTRICAL CHARACTERISTICS

Service Voltage RMS 133V (Not suitable for domestic applications above 50V)
Test Voltage AC RMS 1500V

Current carrying capacity

20A
Typical Contact Resistance ≤3mΩ
Insulation Resistance (initial) ≥2GΩ
Insulation Resistance (after damp heat test) ≥1GΩ

CLIMATIC CHARACTERISTICS

Protection Class IP20 (IP40)
Operating Temperature -25 C to +75 C (-13°F to +167°F)

MECHANICAL CHARACTERISTICS

Weight** - Chassis Connectors 12g (0.026lb)
Weight** - Cable Plug
- Thermoplastic
- Metal		 44g (0.097lb)
65g (0.143lb)
Weight** - Cable Plug PG
- Thermoplastic
- Metal		 44g (0.097lb)
65g (0.143lb)
Weight** - Cable Plug PG S/Relief
- Thermoplastic
- Metal		 68g (0.150lb)
89g (0.196lb)
Typical Cable retention force 200N (Subject to cable material and O.D.)
Cable O.D range
- Chuck Clamp
- PG16 Gland
- PG16 Gland S/Relief		 4 pole
9-14mm (0.35” - 0.55”)
8-14mm (0.31” - 0.55”)
9-14mm (0.35” - 0.55”)
Conductor Size
- Screw Terminals
- Solder Bucket		 1.5mm² - 4mm² (AWG16 - AWG12)
1.5mm² - 6mm² (AWG16 - AWG10)
Mechanical Operations 5000 mating cycles

MATERIALS

Connector Shell / Finish
- Cable Plug Thermoplastic
- Cable Plug Metal		 PA66 GF30 / Black
Diecast Zinc Alloy / Nickel or Black
Insulators
- Chassis
- Cable Plugs		 PA66 GF20
PA66 GF30
Cable Boot / Backshell Santoprene / PA6 GF 15
Cable Clamp (Chuck)

P.O.M
Cable Clamp (PG)

Polyemide / EPDM
Sleeve

PBT
Contact Chassis
- Material / Plating
Contact Cable Plug
- Material / Plating

Phosphor Bronze / Silver
Brass / Silver
