Amphenol Metal Plug Cable

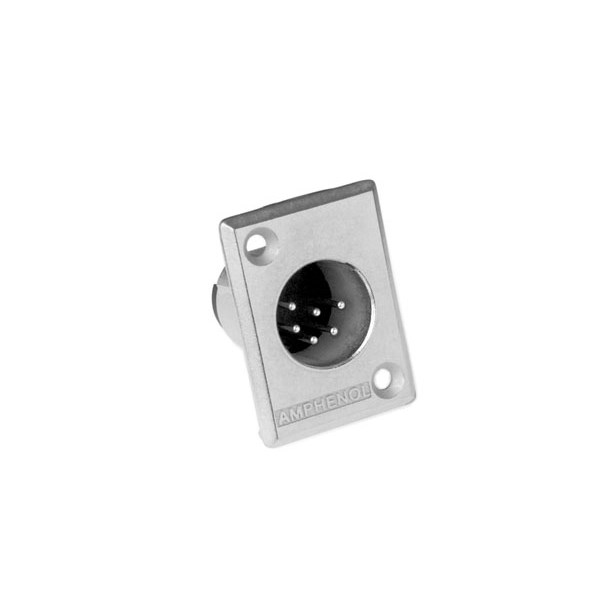

Amphenol Metal Plug Cable Male 6A Pole

Amphenol Australia have been manufacturing and designing innovative XLR connectors since 1955. The AC series cable connector range complies with IEC268-12 and AES 14-1992 standards. CSA File Number 68598.

• Nickel Shell Finish
• Silver Plating Contact Finish
• Male - 6A pole
• Length: 82.0 mm
• Diameter: 19.0 mm

Features

• AC series XLR connectors feature the unique Australian design and patented “Jaws” cable retention system
• A leading first mate last break socket contact is standard on all female connectors (Pin 1)
• The “Jaws” cable retention system provides up to 44kg (100lb) of strain
• The AC series connector can be quickly and easily assembled without screws – by hand or portable termination tool (Part number T2860)
• Available in 3, 4, 5, 6A and 7 contact arrangements
• Compatible with all other XLR brands

Options

• Solder Bucket termination
• Thermoplastic shell
• Zinc Diecast shell – Satin Nickel Finish
• Zinc Diecast shell – Black Polyester Finish
• Gold, Silver or Tin Plated contacts
• Bulk Style Packaging
• Single Bag packs
• Precision machined contacts
• Cost effective stamped contacts on 3 pole
• Standard Jaws cable clamp, Cable O.D 3mm to 6.5mm (0.118” to 0.255”)
• Large Jaws cable clamp, Cable O.D 6.5mm to 8mm (0.255” to 0.314”)
• Metal Boots / Backshells
• Coloured Boots / Backshells
• Coloured Identification rings
• Termination / Assembly tooling
