Amphenol Metal Panel 3 Pin

Product Code: AX3MD

Key Features

AX Series Chassis Mounts - XLR Chassis Mounts

$7.81 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

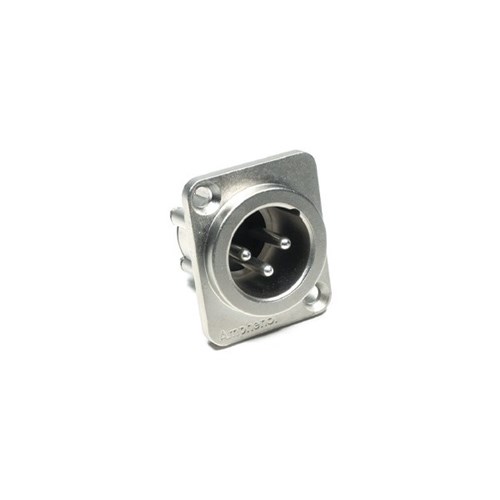

Amphenol Metal Panel 3 Pin

The metal chassis mount connectors are designed for the audio user where durability, reliability and strength across a wide range of applications are important. All products are manufactured to the highest quality standards and will withstand the harshest environments. This range complies with IEC268-12 and AES 14-1992 standards.

Features

  • Zinc Diecast Shell.
  • Male
  • D size housing can be front or rear-mounted using the same panel cutout.
  • Solder Bucket connections.
  • Precision machined or Stamped contacts (3 pins only).
  • Leading first mate last break socket contact.
  • Positive latch lock system.
  • M3 threaded holes (Optional).
  • Nickel Finish
Options
  • Stamped contacts (3 contacts only)
  • Gold plated contacts
  • Vertical PCB contacts
  • Black finish
  • Non-Latching (Female only)
  • Bulk Pack
  • M3 Screws
Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Number of contacts 3
Termination Solder Bucket / Printed Circuit Board (PCB)
Max. Wire Gauge - Solder 14AWG
Flammability rating of insulating plastics UL94V-0
Solderability, complies with IEC 68-2-20
Environmental Complies with EU RoHS 2 Directive 2011/65/EU

ELECTRICAL CHARACTERISTICS

Service Voltage RMS 133V (Not suitable for domestic applications above 50V)
Test Voltage AC RMS 1400V

Current carrying capacity:

Solder

Printed Circuit Board (PCB)



15A

15A
Typical Contact Resistance ≤3mΩ
Insulation Resistance ≥1000MΩ

CLIMATIC CHARACTERISTICS

Protection Class IP40
Operating Temperature -25ºC to +75ºC (-13ºF to +167ºF)

MECHANICAL CHARACTERISTICS

Weight - Metal 31g (0.068lb)
Mechanical Operations 1000 mating cycles

MATERIALS

Connector Shell Material (Plugs) Diecast Zinc Alloy
Connector Shell Finish Satin Nickel or Black Polyester
Insulators PA66 30% Glass Filled Resin
Male Contact
Stamped Solder and PCB-(Material/Plating)
Machined Solder-(Material/Plating)

Phosphor Bronze / Silver or Gold (optional)

Brass / Silver or Gold (optional)
Female Contact
Stamped Solder and PCB-(Material/Plating)
Machined Solder-(Material/Plating)

Phosphor Bronze / Tin or Gold (optional)

Brass / Silver or Gold (Optional)
