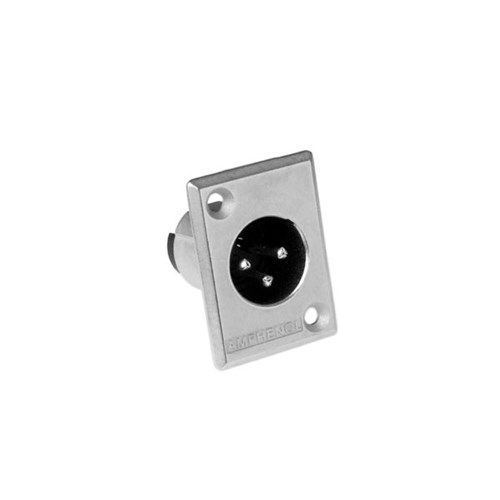

Amphenol Metal P Panel Mount Mach 3 Pin
The metal chassis mount “Z” series (P and PN Type) connectors are designed for the audio user where durability, reliability and strength across a wide range of applications are important. All AC products are manufactured to the highest quality standards and will withstand the harshest environments. This range complies with IEC268-12 and AES 14-1992 standards. CSA File Number 68598.
Note: A ground tag is standard on all AC “Z” series connectors. Although the ground tag is intended for RFI shielding applications, Amphenol cannot guarantee its effectiveness in all cases.
The non-conductive Black polyester finish insulates the ground tag from the shell and should not be used in applications requiring ground contact to the shell.
- Standard Plating
- Stamped Contacts
- P Flange
- Male - 3 pole
- Flange diameter: 20mm
- Flange length: 32.1mm
- Ground panel dimensions (LxW): 36.8mm x 22.2mm
Features
- The “P” size housing is the original wide flange front mounting XLR connector
- “PN” is the original narrow flange front mounting male connector
- A leading first mate last break socket contact is standard on all female connectors (Pin 1)
- Solder cup or Vertical PCB versions
- Connectors are fitted with a grounding system for RFI shielding applications
- Available in 3, 4, 5, 6A and 7 contact arrangements.
- Compatible with all other XLR brands
Options
- Solder Bucket termination
- Vertical PCB contacts
- Zinc Diecast Shell – Satin Nickel Finish
- Zinc Diecast Shell – Black Polyester Finish
- Gold, Silver or Tin Plated Contacts
- Bulk Packaging
- Single Bag packs
- Precision machined contacts
- Cost effective stamped contacts on 3 pole
