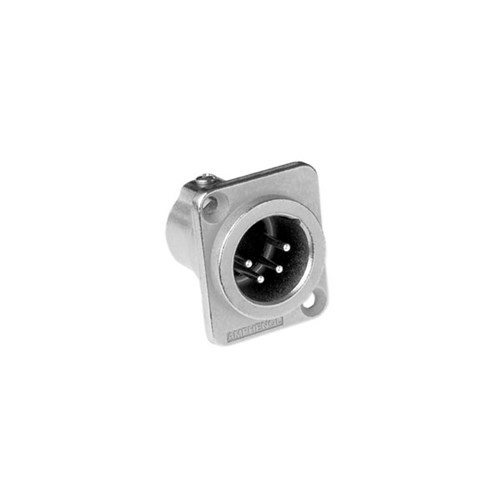

Amphenol Metal D Panel 4 Pin Gold Contact Plating Connector

Amphenol Metal D Panel 4 Pin Gold Connector

The metal chassis mount “Z” series (D Type) connectors are designed for the audio user where durability, reliability and strength across a wide range of applications are important. All AC products are manufactured to the highest quality standards and will withstand the harshest environments. This range complies with IEC268-12 and AES 14-1992 standards. CSA File Number 68598.

Note: A ground tag is standard on all AC “Z” series connectors. Although the ground tag is intended for RFI shielding applications, Amphenol cannot guarantee its effectiveness in all cases.

The non-conductive Black polyester finish insulates the ground tag from the shell and should not be used in applications requiring ground contact to the shell.

• Nickel Finish
• Gold Plated Contacts
• Solder Bucket
• Male - 4 pole
• Flange diameter: 24mm
• Flange length: 32.1mm
• Ground panel dimensions (LxW): 31.0mm x 26.0mm

Features

• The “D” size housing can be either front or rear mounted using the same panel cutout
• A leading first mate last break socket contact is standard on all female connectors (Pin 1)
• Solder cup or Vertical PCB versions
• Connectors are fitted with a grounding system for RFI shielding applications
• Available in 3, 4, 5, 6A and 7 contact arrangements.
• Compatible with all other XLR brands

Options

• Solder Bucket termination
• Vertical PCB contacts
• Zinc Diecast Shell – Satin Nickel Finish
• Zinc Diecast Shell – Black Polyester Finish
• Gold, Silver or Tin Plated Contacts
• Bulk Packaging
• Single Bag packs
• Precision machined contacts
• Cost effective stamped contacts on 3 pole
• Female only latchless versions (Non-latching)
