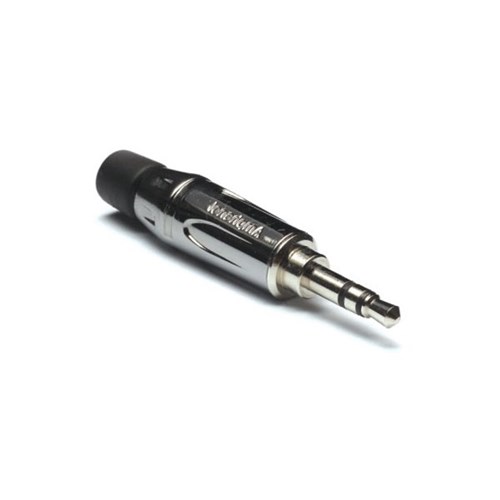

Amphenol 35mm Phone Str Stereo Black Chrome Gold Contact Plating

Product Code: KS3PC-AU

Key Features

K Series (3.5mm Plugs) - 1/4 and 3.5mm Plugs

$6.60 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Amphenol 35Mm Phone STR Stereo Black Chrome, Gold

The latest addition to the Amphenol range is a professional grade 3.5mm phone plug designed for applications that require a robust interconnect.

Features
  • Solder contacts
  • Suits cable O.D 2.5mm to 5mm
  • Stylised shell design
  • Flexible cable grommet
  • Metal cable clamp
Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Number of contacts 2 Pole (Mono)
3 Pole Tip Ring Sleeve (Stereo)
Termination Solder
Wire Gauge - Stranded Wire 2 Pole (Mono): AWG 16 - 1.5mm2
3 Pole (Stereo): AWG 18 - 1mm2
Flammability rating of insulating plastics UL94V-0
Solderability, complies with IEC 68-2-20
Environmental Complies with EU RoHS 2 Directive 2011/65/EU

ELECTRICAL CHARACTERISTICS

Current Carrying Capacity >0.5mA (Depends on Mating Connector and Cable)
Typical Contact Resistance ≤20mΩ (Depends on Mating Connector and Cable)

Insulation resistance (initial)
After Damp Heat Test

>200M Ω
>100M Ω
Test Voltage AC RMS:
Dielectric Strength		 250VAC

CLIMATIC CHARACTERISTICS

Protection Class IP40
Operating Temperature -20ºC to +65ºC (-4ºF to +149ºF)

MECHANICAL CHARACTERISTICS

Insertion and Withdrawal force <20N / >3N (depends on mating connector)
Cable O.D 3mm to 5mm (0.118” to 0.196”)
Mechanical Operations 1000 mating cycles
Weight 8g (0.017lb)

MATERIALS

Connector Shell Material (Plugs) Diecast Zinc Alloy EZDA No.3
Connector Shell Finish Satin Nickel or Black Polyester
Insulators PA66
Cable Bushing

Santoprene
Contacts

Brass
Plating

Nickel or Gold Flash
