Amphenol 1/4 Inch Phone Plug Mono Black

Product Code: ACPM-GB

Key Features

M Series Musician Range - 1/4 and 3.5mm Plugs

$4.92 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

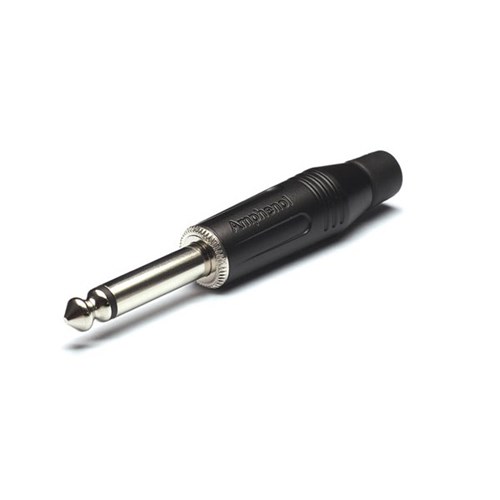

Amphenol 1/4" Phone Plug, Mono, Black

Amphenol offers two ranges of 1/4” Phone plug connectors to satisfy the needs of the manufacturer and the end-user. The MUSICIAN series – a solid performing general use plug, offers different features and benefits and the most suitable type will be determined by the application, budget and personal choice.

  • Mono
  • Diecast Shell
  • Straight
  • Black Finish
  • Standard Plating
  • Cable OD Entry to 6.5mm (0.256”)
  • Flexible grommet cable protection
  • Improved solderability
  • Precision machined contacts
  • Standard or Bulk packaging
Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Number of Contacts 2 Pole (Mono)
Termination Solder
Max. Wire Gauge - Stranded Wire 2 Pole (Mono): AWG 16˜1.5mm2
Flammability rating of insulating plastics UL94V-0
Solderability, complies with IEC 68-2-20
Environmental Complies with EU RoHS 2 Directive 2011/65/EU

ELECTRICAL CHARACTERISTICS

Current Carrying Capacity 10A (Depends on Mating Connector)
Typical Contact Resistance Depends on Mating Connector
Insulation resistance (initial)
After Damp Heat Test		 >2GΩ
≥ 1GΩ
Dielectric Strength 2 Pole : 1.5 kV dc

CLIMATIC CHARACTERISTICS

Protection Class IP40
Operating Temperature -25ºC to +70ºC (-13ºF to 158ºF)

MECHANICAL CHARACTERISTICS

Insertion and Withdrawal Force ≥10N - ≤30N (depends on mating connector)
Cable O.D.
- M Series
- M Series II

3mm to 6.5mm (0.118” to 0.256”)
6.5mm to 8mm (0.256” to 0.315”)
Mechanical Operations Min. of 1000 cycles without any physical damage

MATERIALS

Connector Shell Material (Plugs) Diecast Zinc Alloy EZDA No.3
Connector Shell Finish Satin Nickel or Black Polyester
Insulators UL94 V-0 PBT Resin or Modified PPE Resin and fibreglass laminate
Cable Bushing Santoprene
Contact Plating Brass / Ni over Cu (Copper)
